2.3.3.2 Connecting the Door Strike Intermediate Relay Module
For wiring an electronic door strike, we recommend the use of our external Door Strike Intermediate
Relay (CD# 011269).
This product provides an easier method of connecting standard door strikes as well as AC and
higher voltage devices. See
1
8
J3 Terminal Block
If you have questions about connecting door strikes or setting up the web configurable options,
please contact our support department.
http://www.cyberdata.net/support/voip/index.html
Operations Guide
Figure 2-4 for the wiring diagram.

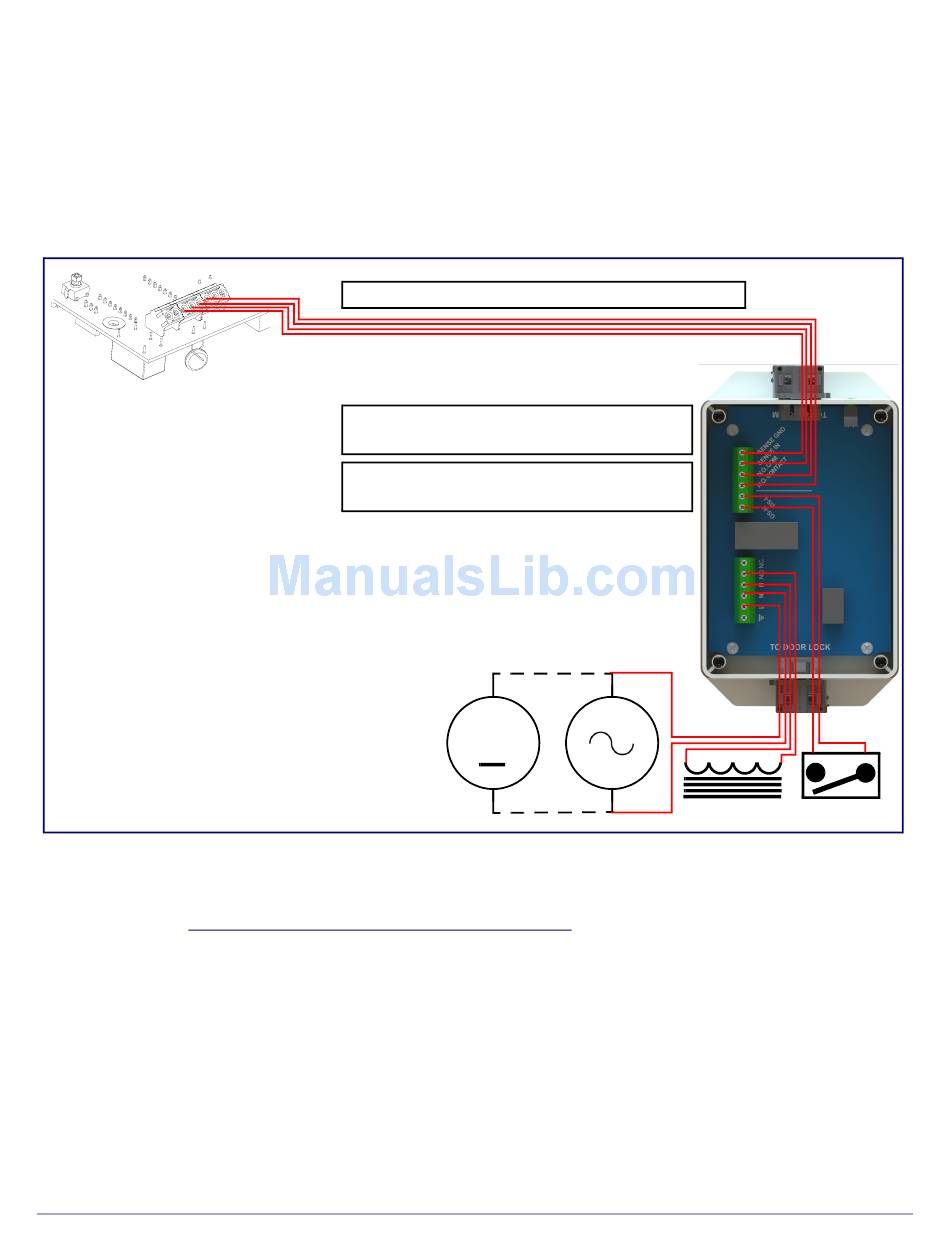

Figure 2-4. Wiring Diagram
The J3 terminal block can accept 16 AWG stranded wire.
See the Door Strike Intermediate Relay Opera-
tions Guide for connection specifics.
See Section 2.4.12, "Configure the Door Strike
Relay" for configuration options.
+
DC Source
930796N
Installing the VoIP Outdoor Intercom
AC Source
OR
Door Lock
Intercom Setup
Sense Input
