A.2 Dimensions

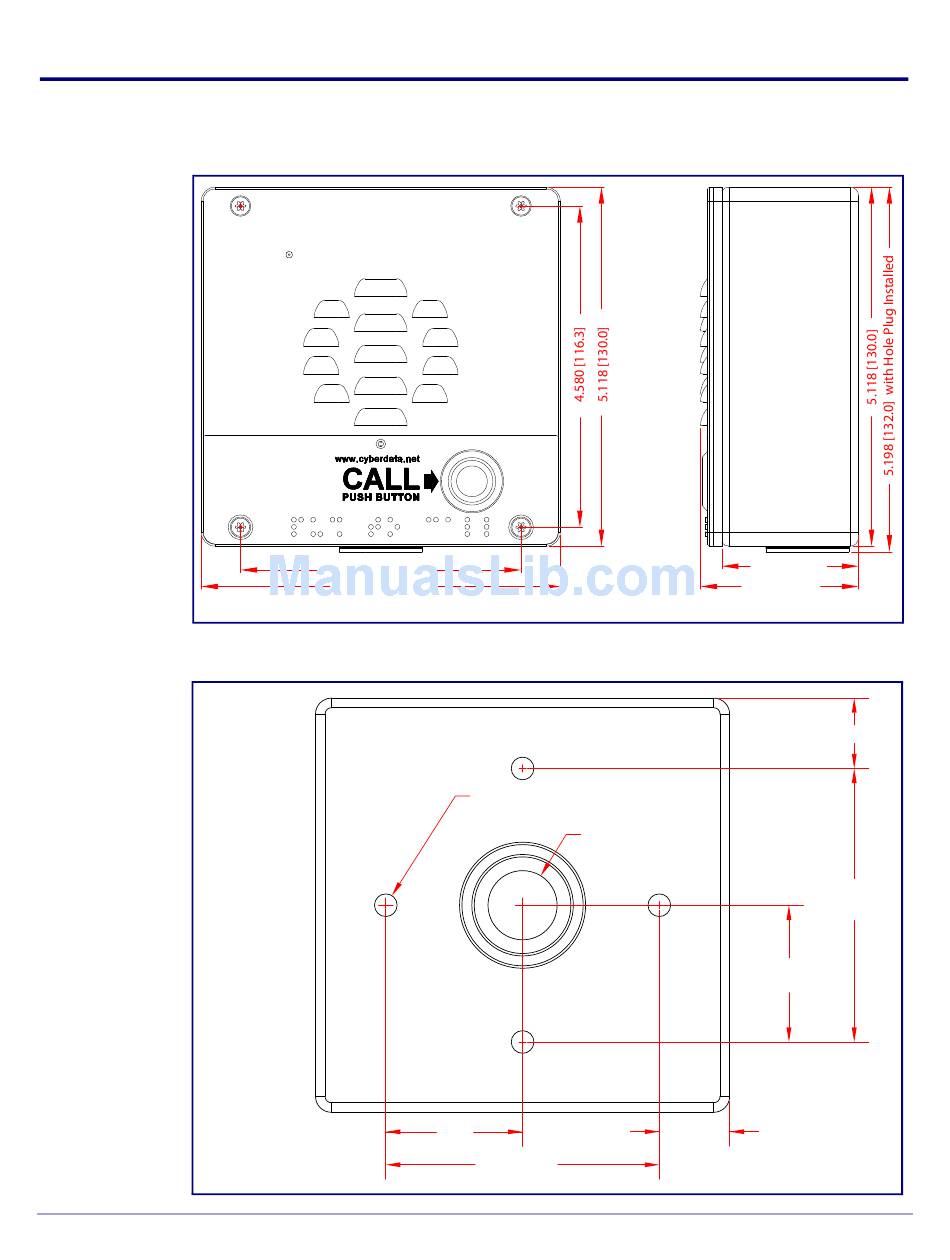

Figure A-1. Unit Dimensions—Front and Side View
1.949 [49.5]
4.000 [101.6]
2.252 [57.2]
5.118 [130.0]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Figure A-2. Unit Dimensions—Rear View with Mounting Hole Locations
Dimensions are in Inches [Millimeter]
0.869 [22.07]
ø0.280 [ø7.11]
(4 Places)
ø0.854 [ø21.69]
3.380
[85.85]
1.690
[42.93]
1.690
0.869 [22.07]
[42.93]
3.380 [85.85]
