Web Page Item
DTMF Activation Code
DTMF Activation Duration (in seconds)
Play tone during DTMF Activation
Activate Relay During Ring
Activate Relay During Night Ring
Activate Relay While Call Active
Activate Relay on Button Press
Relay on Button Press Duration
Clock Settings
Set Time with NTP Server on boot
NTP Server
Posix Timezone String
Periodically sync time with server
Time update period (in hours)
Current Time
Misc Settings
Device Name
Operations Guide

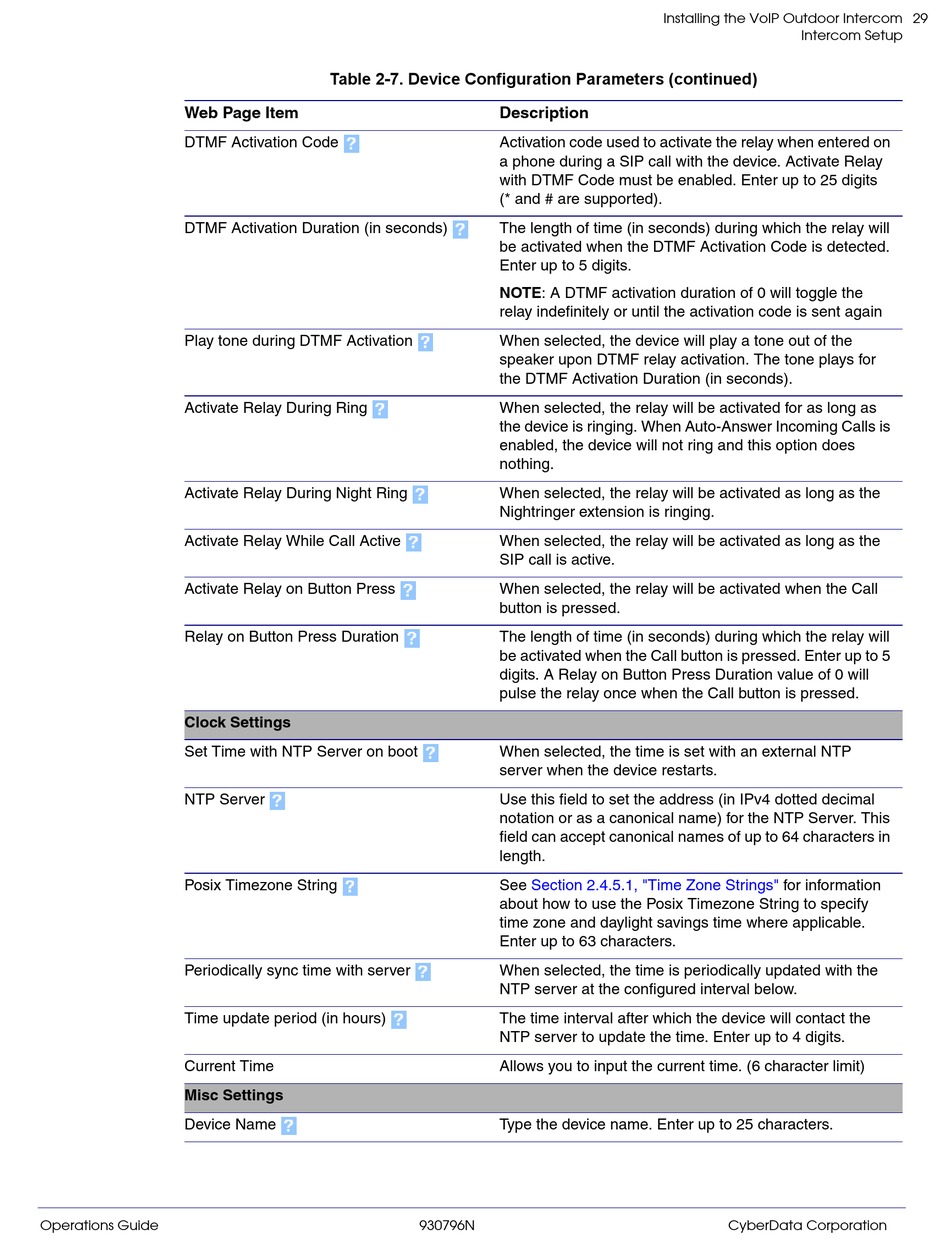

Table 2-7. Device Configuration Parameters (continued)
Description
Activation code used to activate the relay when entered on
a phone during a SIP call with the device. Activate Relay
with DTMF Code must be enabled. Enter up to 25 digits 
(* and # are supported).
The length of time (in seconds) during which the relay will
be activated when the DTMF Activation Code is detected.
Enter up to 5 digits.
NOTE: A DTMF activation duration of 0 will toggle the
relay indefinitely or until the activation code is sent again
When selected, the device will play a tone out of the
speaker upon DTMF relay activation. The tone plays for
the DTMF Activation Duration (in seconds).
When selected, the relay will be activated for as long as
the device is ringing. When Auto-Answer Incoming Calls is
enabled, the device will not ring and this option does
nothing.
When selected, the relay will be activated as long as the
Nightringer extension is ringing.
When selected, the relay will be activated as long as the
SIP call is active.
When selected, the relay will be activated when the Call
button is pressed.
The length of time (in seconds) during which the relay will
be activated when the Call button is pressed. Enter up to 5
digits. A Relay on Button Press Duration value of 0 will
pulse the relay once when the Call button is pressed.
When selected, the time is set with an external NTP
server when the device restarts.
Use this field to set the address (in IPv4 dotted decimal
notation or as a canonical name) for the NTP Server. This
field can accept canonical names of up to 64 characters in
length.
See
about how to use the Posix Timezone String to specify
time zone and daylight savings time where applicable.
Enter up to 63 characters.
When selected, the time is periodically updated with the
NTP server at the configured interval below.
The time interval after which the device will contact the
NTP server to update the time. Enter up to 4 digits.
Allows you to input the current time. (6 character limit)
Type the device name. Enter up to 25 characters.
930796N
Installing the VoIP Outdoor Intercom
Section 2.4.5.1, "Time Zone Strings"
Intercom Setup
for information
