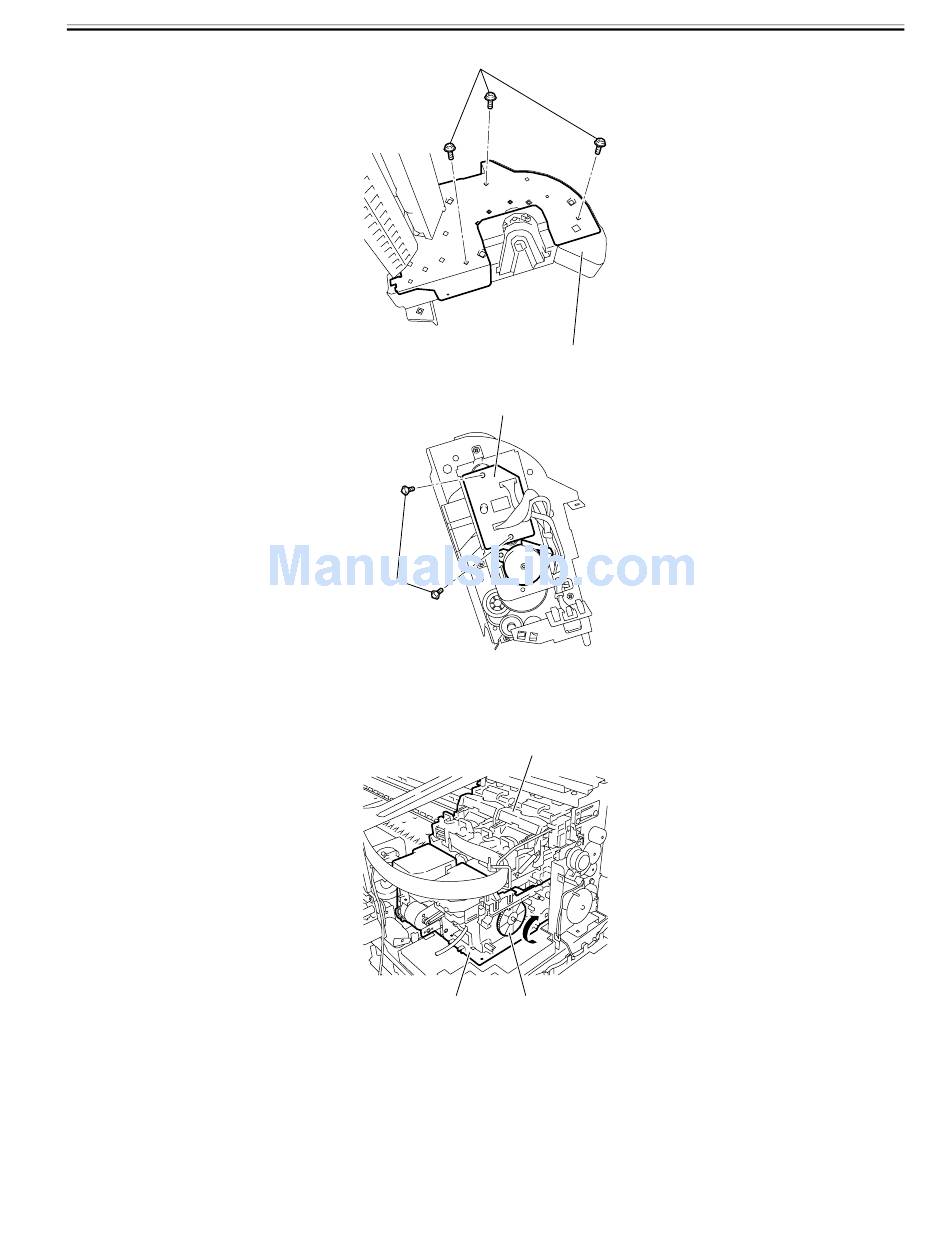

4) Remove the two screws[1], and then remove the roll feed unit PCB[2].

4.3.10 Purge Unit

a) Removing the purge unit
1) Turn the gear[1] of the purge unit[3] in the direction of the arrow to unlock and uncap the carriage. Next, move the carriage[2] onto the platen.
2) Disconnect the connector[1], and then remove the harness from the harness guide.
[1]
F-4-69
[2]
[1]
F-4-70
[2]
[3] [1]
F-4-71
[2]
Chapter 4
0012-6392
4-25
