Chapter 4

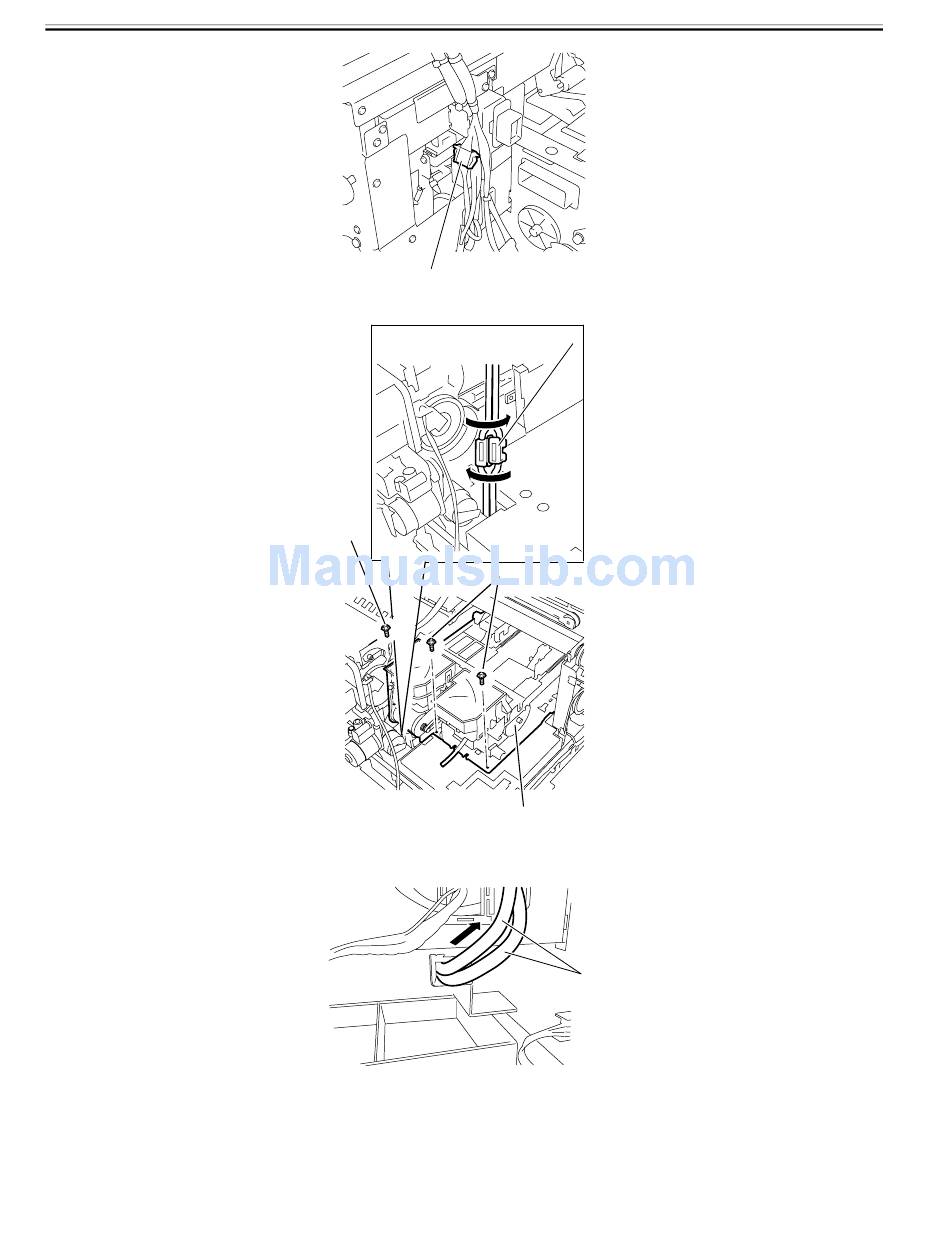

3) Remove the three screws[3], remove the waste ink tube joint[1] by turning it in the direction of the arrow, and then remove the purge unit[2].
b) Precaution for mounting the purge unit
When mounting the purge unit, pull out the waste ink tube[1] from the back of the printer to the position where the marking is visible. It the waste ink tube is not
pulled out to the marking position, it may bend and cause ink leakage.

4.3.11 Waste Ink Collection Unit

a) Removing the waste ink box
1) When removing the waste ink box, first remove the cassette and output tray.
2) Remove the two screws[1] and connector cover[2].
4-26
[1]
F-4-72
[3]
[3]
[2]
F-4-73
F-4-74
[1]
[1]
