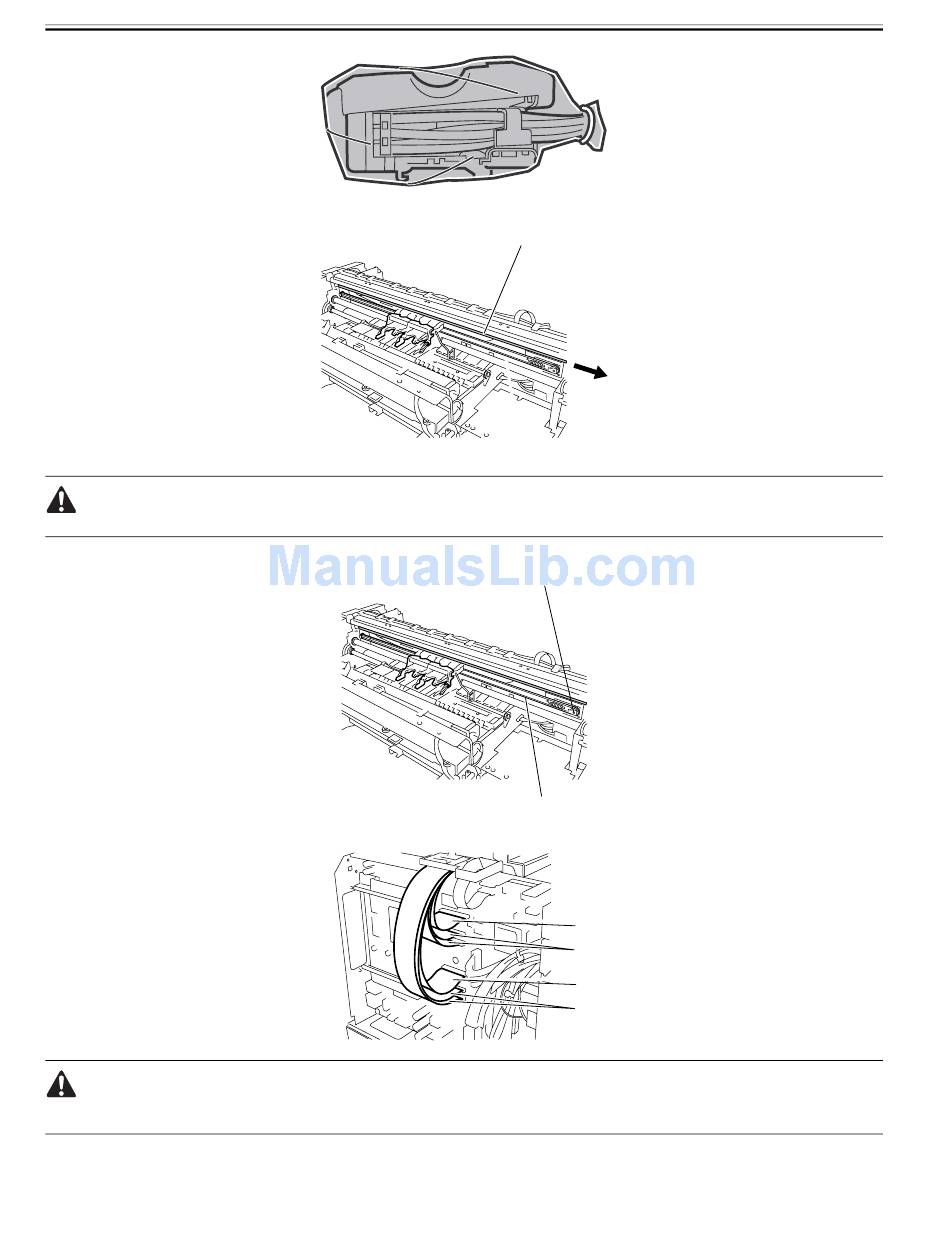

5) Remove the linear scale[1] from the right clamp plate's spring, and then remove it rightward.
When removing the linear scale, take care not to damage or stain it. The stained or damaged liner plate can cause malfunction.
6) While sliding the pulley[2] to the left, remove the carriage belt. Tie the removed belt lightly on the unit.
7) Disconnect the two connectors[1] and four connectors[2] of the flexible cables on the main controller PCB.
The flexible cable connectors[2] are provided with a locking mechanism. When disconnecting or reconnecting the flexible cable, be sure to release the lock. Oth-
erwise, the flexible cable can damage, resulting in malfunction.
8) Release the hook[2], and then remove the flexible cable retainer[1].
4-14
F-4-36
[1]
F-4-37
[2]
[1]
F-4-38
[1]
[2]
[1]
[2]
F-4-39
