Chapter 4
b) Removing the roll feed unit

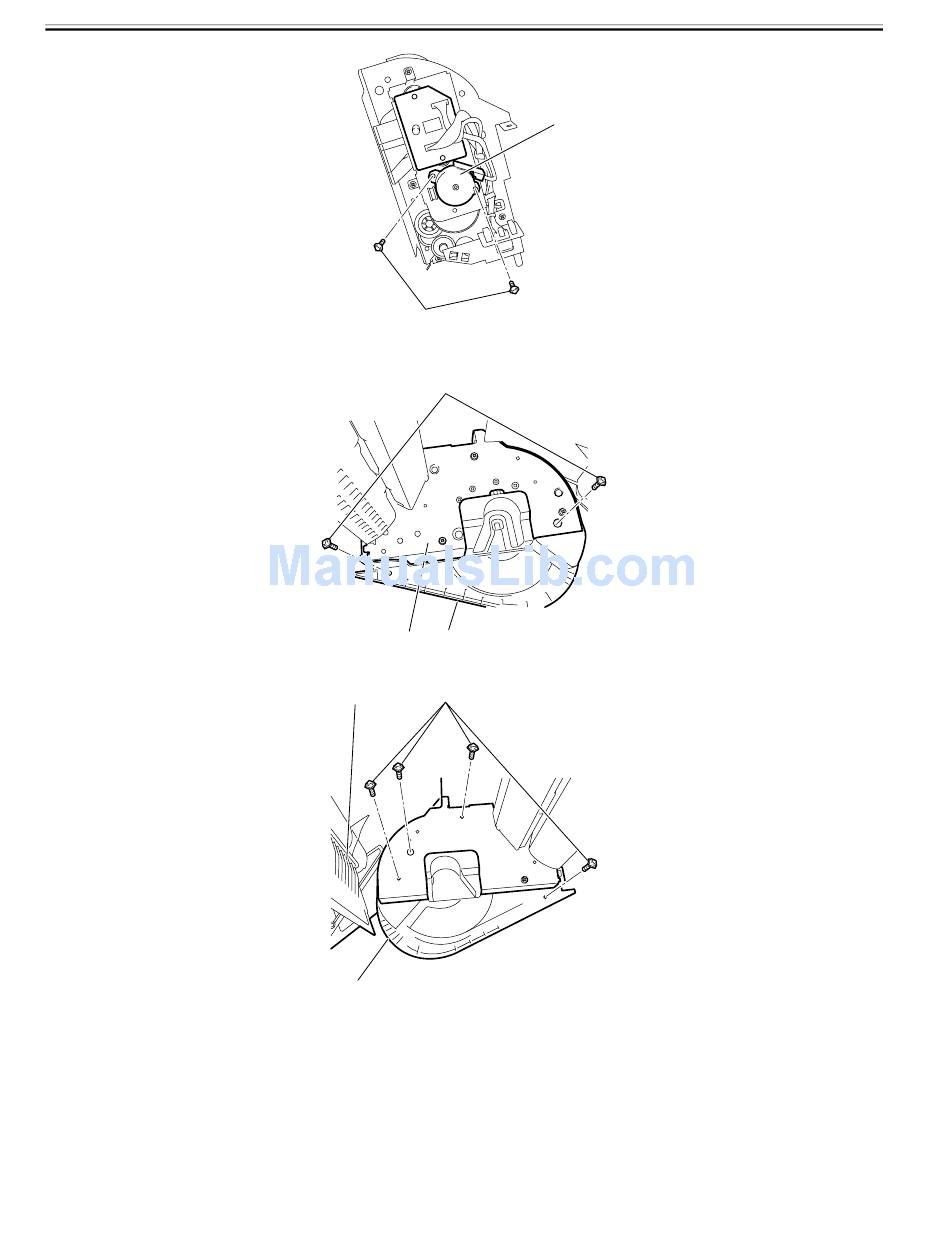

1) When removing the roll motor, remove the roll feed unit[2] from the main body, and then remove the right cover[3] by removing the two screws[1].
2) Remove the four screws[1], and then remove the left cover[2] and paper tray[3].
3) Remove the three screws[1], andthen remove the right inner cover[2].
4-24
[1]
F-4-66
[1]
[2] [3]
F-4-67
[1]
[3]
[2]
F-4-68
[2]
