Chapter 1

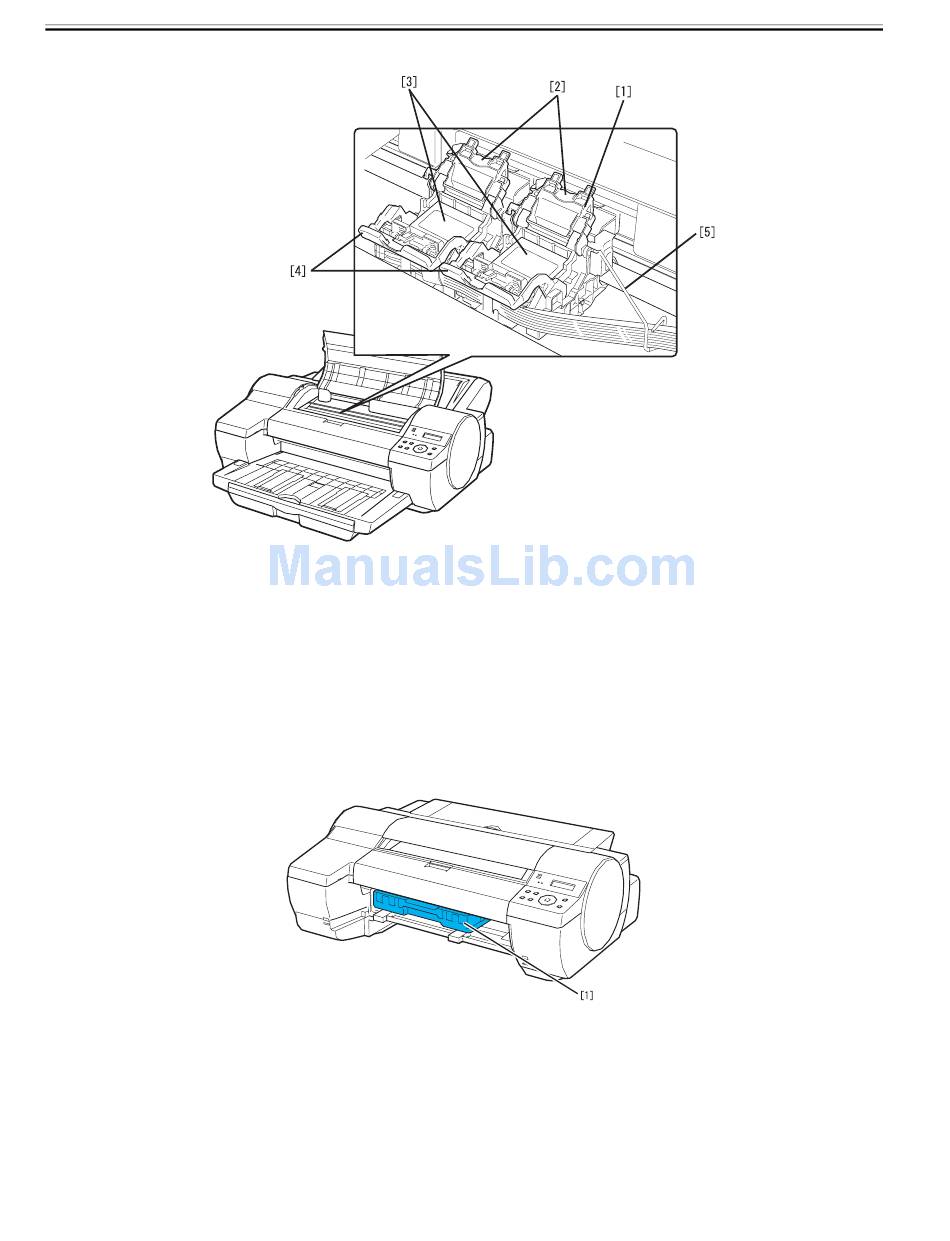

1.5.3 Carriage

[1] Carriage

[2] Printhead lock cover
This cover is used to lock the printhead. Open this cover when installing the printhead.
[3] Printhead
The printhead incorporated nozzles. It is an important part for printing.
[4] Printhead lock lever
This lever is used to lock the printhead. Open this lever when installing the printhead.
[5] Ink tube guide
This stay is used as an ink tube guide.

1.5.4 Inside

[1] Maintenance cartridge
1-8
F-1-15
F-1-16
0013-3730
0012-6340
