Chapter 4

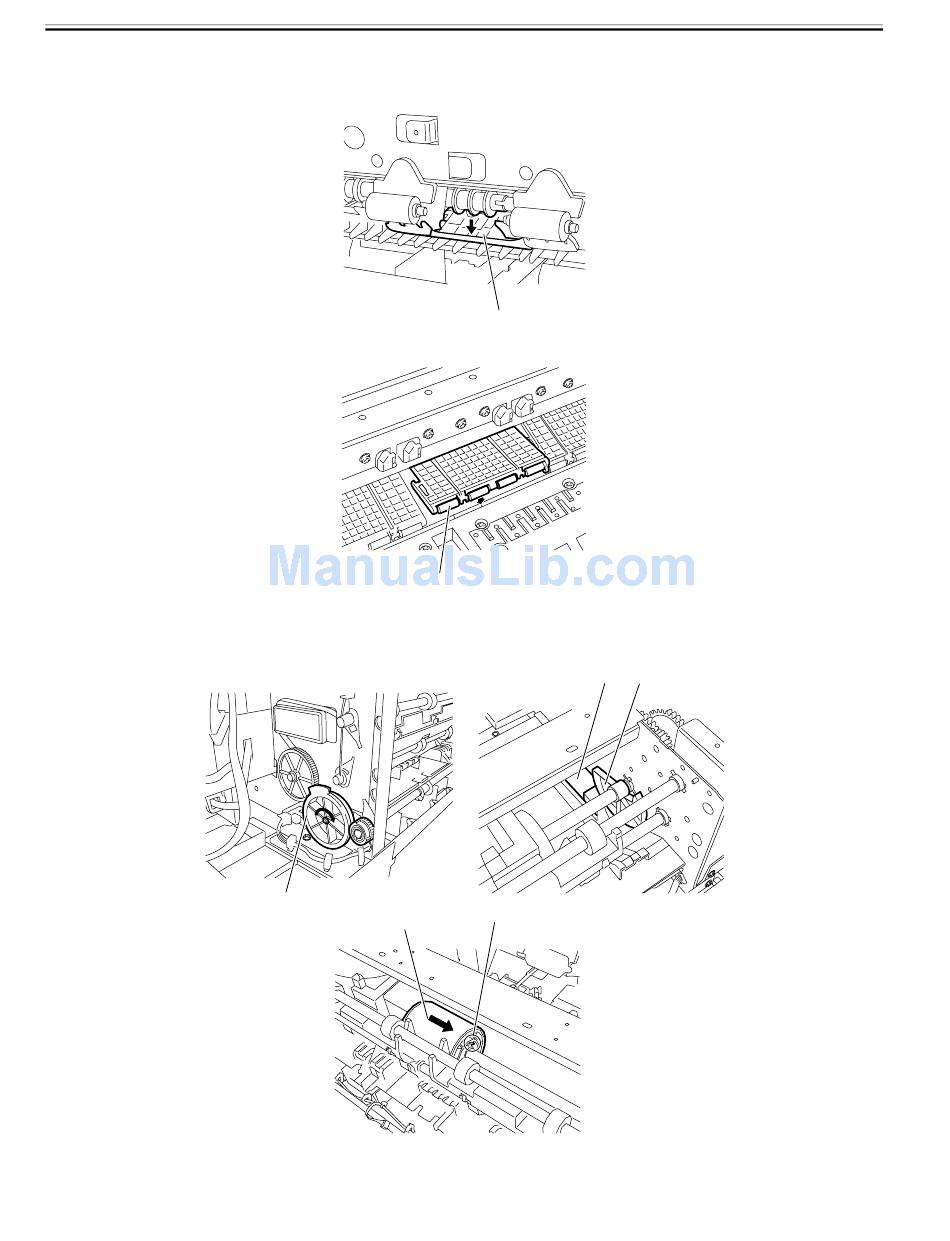

4.3.8 Feeder Unit

a) Removing the pinch roller
1) Removethe back cover.
2) When removing the pinch roller, press down the pinch roller unit[1] in the direction of the arrow.
3) Remove the pinch roller[1].
b) Removing the cassette pick-up roller
1) When removing the cassette pick-up roller, first remove the back cover and cassette.
2) Then the gear[1] so that the pick-up cam[2] pressea down the arm[3] to the lowest position. Release the hook[A], and then remove the cassette pick-up roller[4]
while sliding it in the direction of the arrow.
c) Precaution for mounting the roller
When mounting the cassette pick-up roller, fit the projection[A] on the cassette pick-up roller holder[1] in the grooves in the cassette pick-up roller.
4-18
F-4-46
[1]
F-4-47
[1]
[4]
F-4-48
[1]
[3] [2]
[A]
