1) When removing the mist fan, first open the top cover, and then remove the output tray, right circle cover, right upper cover, operation panel, mist filter, filter

cover, filter, right cover, and right front cover. Refer to DISASSEMBLY/REASSEMBLY > Points to Note on Disassembly and Reassembly > External Cover.

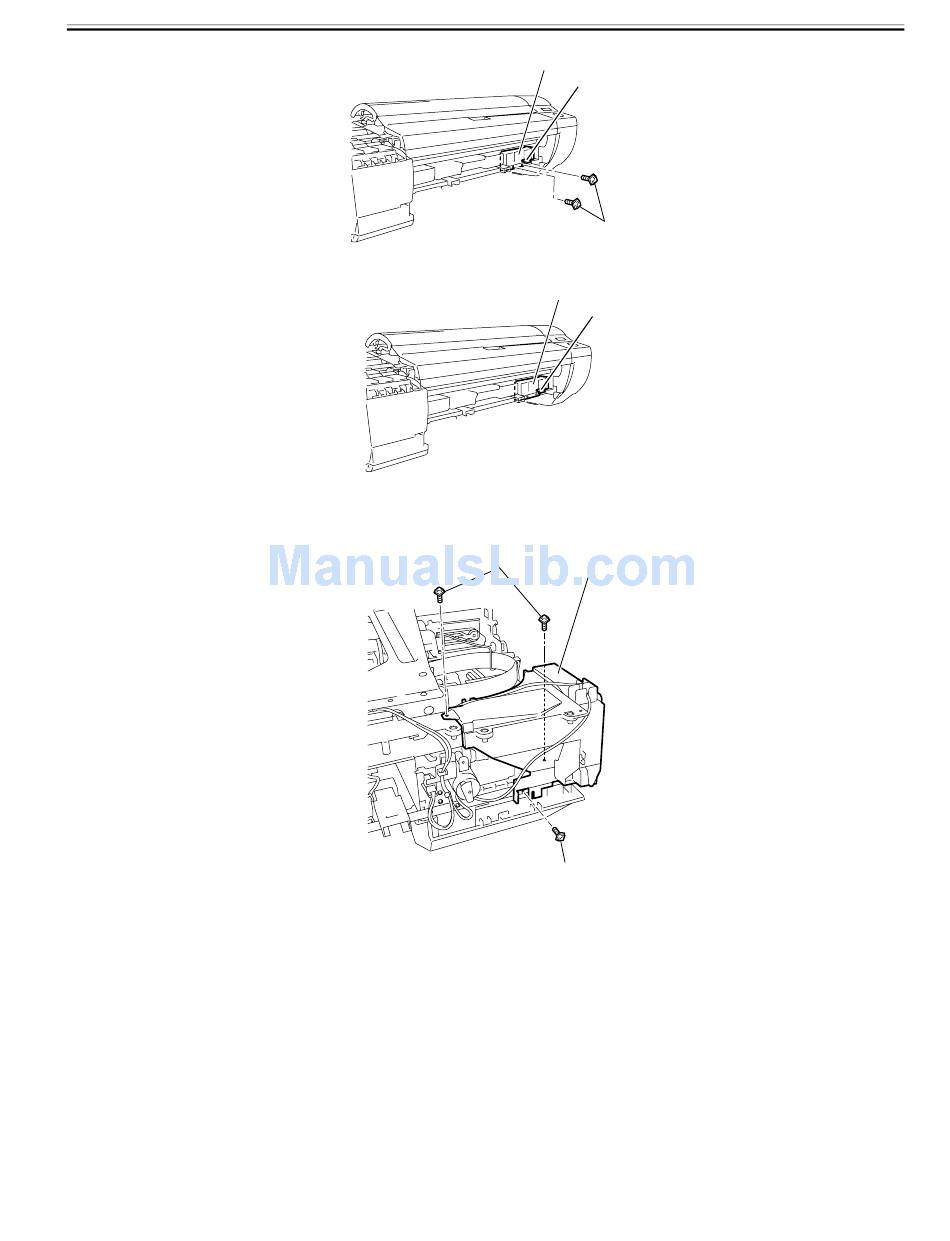

2) Remopve the three screwas[1] and disconnect the connector, and then remove the mist fan[2].

c) Removing the platen duct

1) When removing the platen duct, first open the top cover, and then remove the output tray, maintenance cartridge, waste ink box, left and right circle cover, tank

cover, right upper cover, operation panel, mist filter, filter cover, filter, right cover, right front cover, and mist fan. Refer to DISASSEMBLY/REASSEMBLY >

Points to Note on Disassembly andReassembly > External Cover.

2) Remove the three screws[2], and then remove the two tube guide[1]. Remove the ink tube[3] from the guide of the front duct[4].

[3]

[2]

[1]

F-4-75

[1]

[2]

F-4-76

[1]

[2]

[1]
