1) When removing the rear cover[2], open the top cover, left circle cover, tank cover, left cover, left rear cover, right circle cover, right upper cover, operation panel,

mist filter, filter cover, filter, right cover, and lower rear cover.

2) Remove the three screws[1],and then remove the rear cover[2].

q) Lower back cover

Removing the lower back cover

1) Wen removing the lower back cover[2], open the top cover, left circle cover, tank cover, left cover, left rear cover, right circle cover, right upper cover, operation

panerl, mist filter, filter cover, filter, right cover, and lower rear cover.

2) Remove the two screws[1], and then remove the lower back cover[2].

r) Cover guide

Removing the cover guide

1) When removing the cover guide[2], open the top cover, left circle cover, tank cover, right circle cover, right upper cover, operation panel, mist filter, filter cover,

filter, right cover, and lower rear cover.

2) Remove the two screws[1], and then remove the cover guide[2].

4-10

[1]

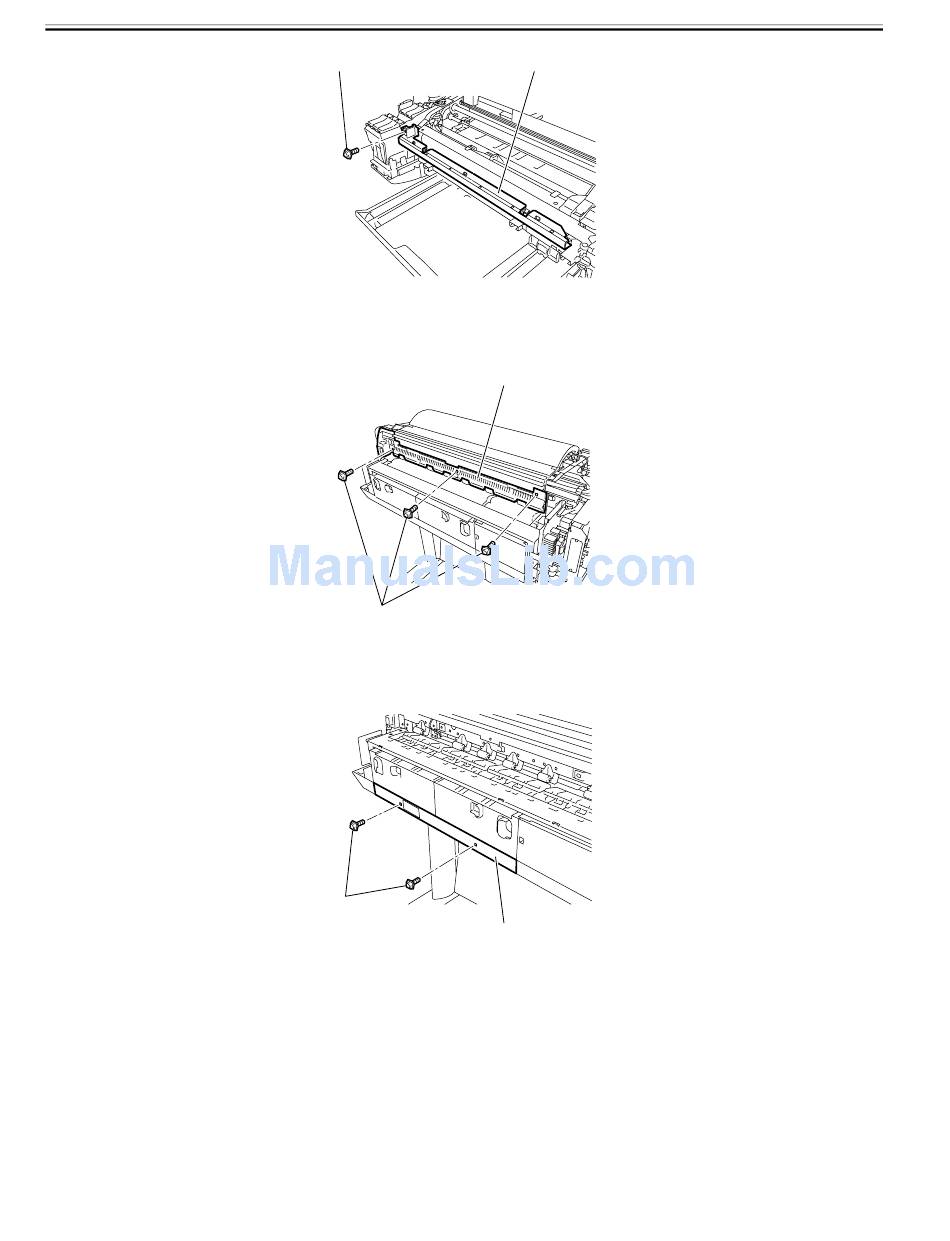

F-4-24

[2]

[1]

F-4-25

[1]

[2]

F-4-26

[2]
