Canon imagePROGRAF iPF5000 Series Service Manual page 107

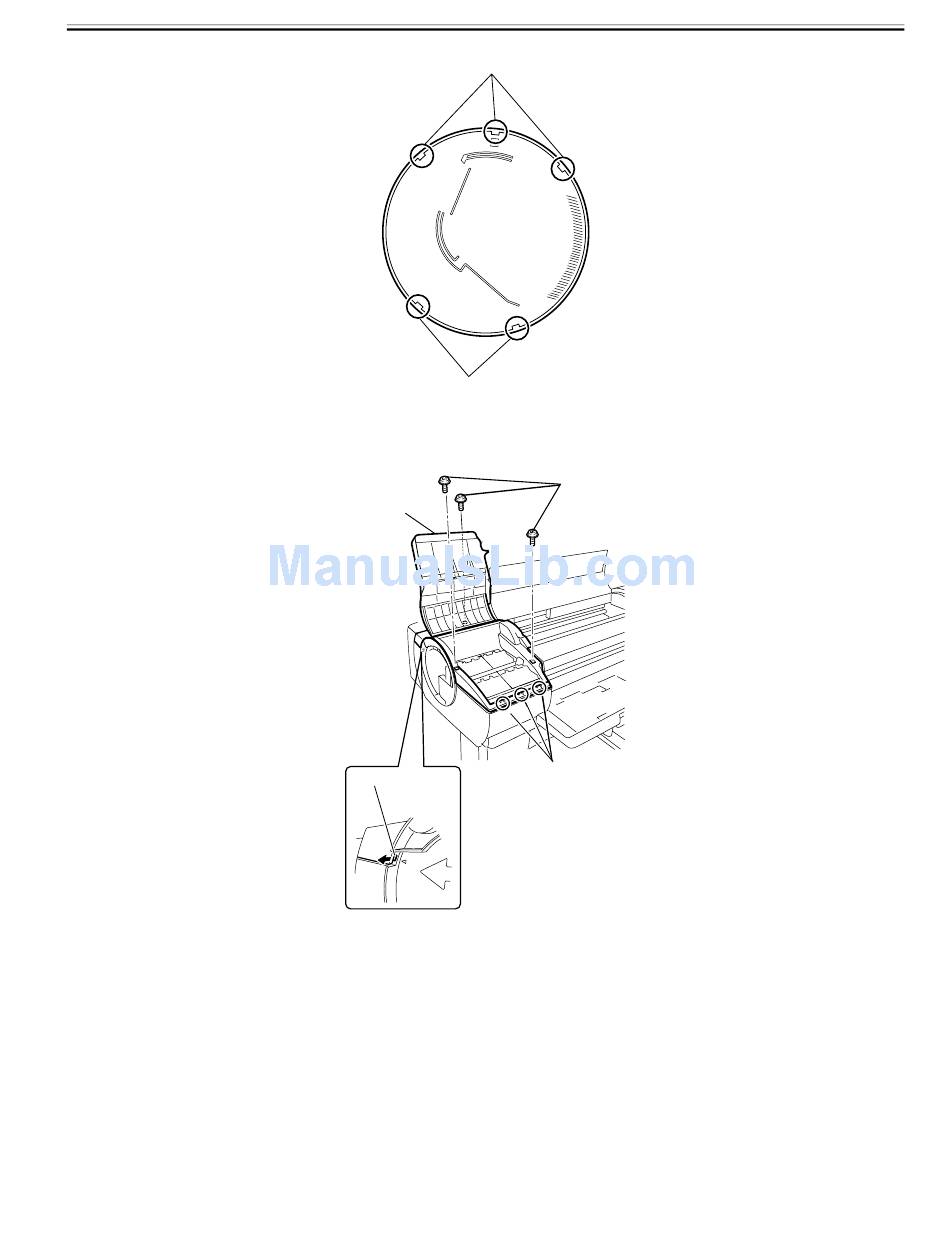

b) Tank cover
Removing the left cover
1) When removing the tank cover[4], remove the left circle cover and then open the top cover.
2) Open the tank cover, remove the three screws[1], and then release the three hooks[2] while opening the hook[3] outward.
c) Left cover
Removing the left cover
1) When removing the left cover[3], remove the left circle cover, open the top cover, and then remove the tank cover.
2) Remove the screw[1], remove the hook[2], and slide the tank cover in the direction of arrow 2, and then slide it in the direction of arrow 3.
[1]
[2]
F-4-10
[4]
[2]
[3]
F-4-11
[1]
Chapter 4
4-5
