a. From the front of the library, find the Y-rail release mechanism, which is located on the left side
of the control module. Squeeze the handle of the Y-rail release mechanism, lift it, and release
it so that it locks into place.
b. From the rear of the library, find the rear Y-rail release mechanism located in the interior of the
right side of the module. Squeeze the handle of the Y-rail release mechanism, lift it, and release
it so that it locks into place.

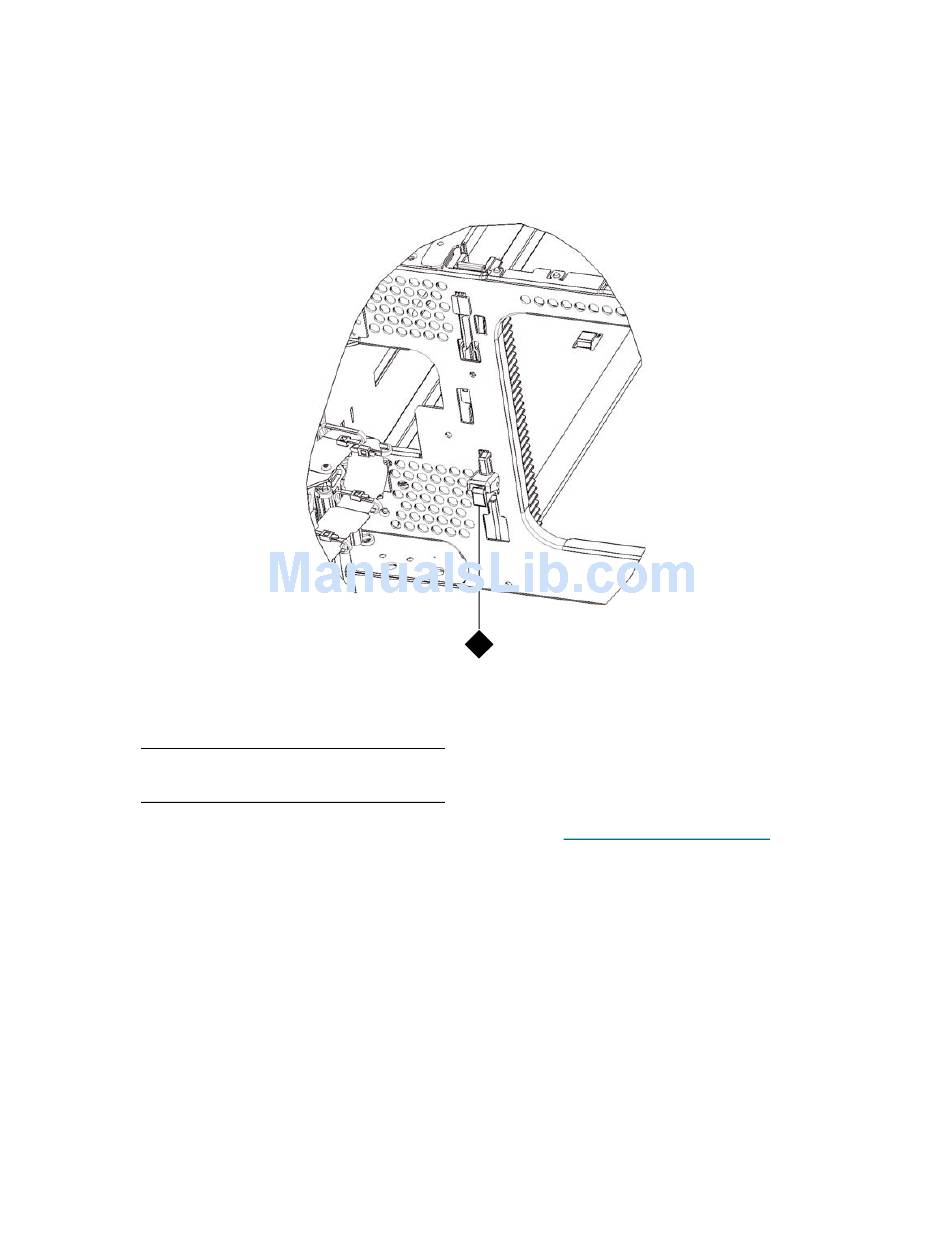

1 Y-rail in locked, non-functional
position
3 Remove the rack ears that fasten the module to the rack. See
for detailed instructions on using the rack ears.
150 Installing, Removing, and Replacing
1
Installing the Rackmount Kit on page 181
