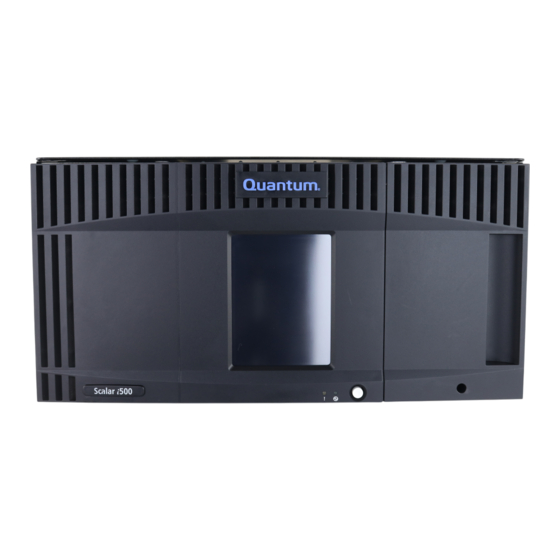

Quantum Scalar i500 Installation Manual

Rackmount kit
Hide thumbs Also See for Scalar i500:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Instruction Manual
© 2013 Quantum Corporation. All rights reserved. Quantum, the Quantum logo, DLT, DLTtape, the DLTtape logo, SuperLoader,
Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates
in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum
specifications are subject to change.
6-01492-04 Rev A, December 2013
Rackmount Kit Installation
®
All Scalar
i500 libraries taller than 14U must be installed in a rack. The rack
secures the bottom module, and all other modules are then secured to the
bottom module.
The Rackmount kit secures your library within a rack. These instructions explain
how to install your library into a rack, and how to install additional modules into
an existing rack.
Installing the modules into the rack requires at least two people.
WARNING: All libraries taller than 14U must be installed in a rack having a
main protective earthing (grounding) terminal, and power must
be supplied via an industrial plug and socket-outlet and/or an
appliance coupler complying with IEC 60309 (or an equivalent
national standard) and having a protective earth (ground)
conductor with a cross sectional area of at least 1.50 mm
AWG).
To ensure proper airflow and access space, allow 60 cm
(24 inches) in the front and back of the library.
WARNING: Under no circumstances should a rack be moved while loaded
with one or more modules.
Quantum Scalar i500:
2
(14
*6-01492-04*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scalar i500 and is the answer not in the manual?

Questions and answers

Related Manuals for Quantum Scalar i500

Summary of Contents for Quantum Scalar i500

  • Page 1 © 2013 Quantum Corporation. All rights reserved. Quantum, the Quantum logo, DLT, DLTtape, the DLTtape logo, SuperLoader, Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum specifications are subject to change.

  • Page 2: Preparing For Installation

    Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 WARNING: Without tape drives, tape cartridges, or power supplies, a control module weighs approximately 60 lbs (27.20 kg). An expansion module, without tape drives, tape cartridges, or power supplies, exceeds 65 lbs (29.50 kg).
  • Page 3 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Component Description Quantity Large ferrule — Used in racks with square (8 required; holes 2 spares) Thumbnut — Secures the rack shelves to the rack M5 thumbscrew — Secures the rack ears Rack ear, left —...
  • Page 4 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Component Description Quantity Rack shelf, left — Secures the modules in the rack Rack shelf, right— Secures the modules in the rack Table 2 Rack Ear Kit Contents Component...
  • Page 5 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Component Description Quantity Rack ear, left — Holds the modules in the rack Rack ear, right — Holds the modules in the rack 2 Remove all rack hardware that may interfere with the installation of the rackmount and the modules that you plan to add to the rack.

  • Page 6: Installing The Rackmount Shelves

    Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Remember, the control module can be placed anywhere within the library configuration above, below, or between any expansion modules. Note: The recommended placement of the control module for 41U library configurations is on top of three 9U expansion modules and below the top expansion module.
  • Page 7 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 3 Install the rackmount shelves into the rack so that they are level with one another: a Install the shelf’s rear studs in the rack’s rear mounting holes (see...
  • Page 8 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 e Install the shelf’s front studs in the rack’s front mounting holes (see Figure Figure 3 Front of Rails f If the studs do not reach the mounting holes, pull the front of the shelf toward you to extend it to the necessary length.

  • Page 9: Preparing Modules For Rack Installation

    Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Preparing Modules for Rack Installation These instructions explain how to prepare the modules for the installation into the rack. 1 Save the library configuration: a From the Web client, select Tools > Save/Restore Configuration.

  • Page 10: Installing The Bottom Module In The Rack

    Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 d Gently lower the robot assembly to rest on the parking tab. Figure 4 Parking Tab Parking tab in “parked” position Installing the Bottom Module in the Rack These instructions explain how to install the bottom module into the rack.
  • Page 11 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Note: Consider using the following method to determine where to install the nut clips (or cage nuts), rather than adding the module to the rack first. If you add the module to the rack first, installing the nut clips (or cage nuts) can be difficult, because rack space has become restricted.
  • Page 12 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Figure 6 Right Rack Ear Hinge Attached to Rack 6 Install the left rack ear: a With the I/O station door open, open the left door (the access door) of the module and pull the door toward you to access the slot located in the lower left corner of the module.

  • Page 13: Installing Additional Modules Into The Rack

    Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Figure 7 Attaching Left Rack Ear Hinge to Rack 7 If you are installing only the control module, complete its installation by following the instructions in Completing the Installation on page 18.
  • Page 14 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 module. See the section “Installing the New 9U Expansion Module” in the Scalar i500 User’s Guide 2 Determine where in the rack to install the nut clips (or cage nuts).
  • Page 15 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 b Place the cage nut in the desired hole. Insert one hinge in the hole first, then pinch the cage nut and push it into the hole until it snaps into place.
  • Page 16 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Figure 9 Thumbscrew Location in Module Front of Control Module Thumbscrews Rear of Control Thumbscrews Module 9 Install the right rack ear (see Figure 10 on page 17). At the front of the library: a Open the I/O station door.
  • Page 17 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Figure 10 Right Rack Ear Hinge b Using two M5 thumbscrews, fasten the rack ear to the rack. The thumbscrews should thread through the nut clips (or cage nuts) and...

  • Page 18: Completing The Installation

    Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 c Using two M5 thumbscrews, fasten the rack ear to the rack. The thumbscrews should thread through the nut clips (or cage nuts) and fasten completely and evenly (see Figure 12).
  • Page 19 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Caution: Support the robot assembly by holding onto the broad metal X-axis plate. Lifting the robot by the thin metal rod will bend the rod. Lifting the robot by the black plastic picker body can damage the robot.
  • Page 20 Quantum Scalar i500: Rackmount Kit Installation 6-01492-04 Rev A December 2013 Completing the Installation...
