Quantum Scalar i500 Replacement Manual

Fc i/o fan blade replacement

Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates

in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum

specifications are subject to change.

6-68064-01 Rev A, December 2013

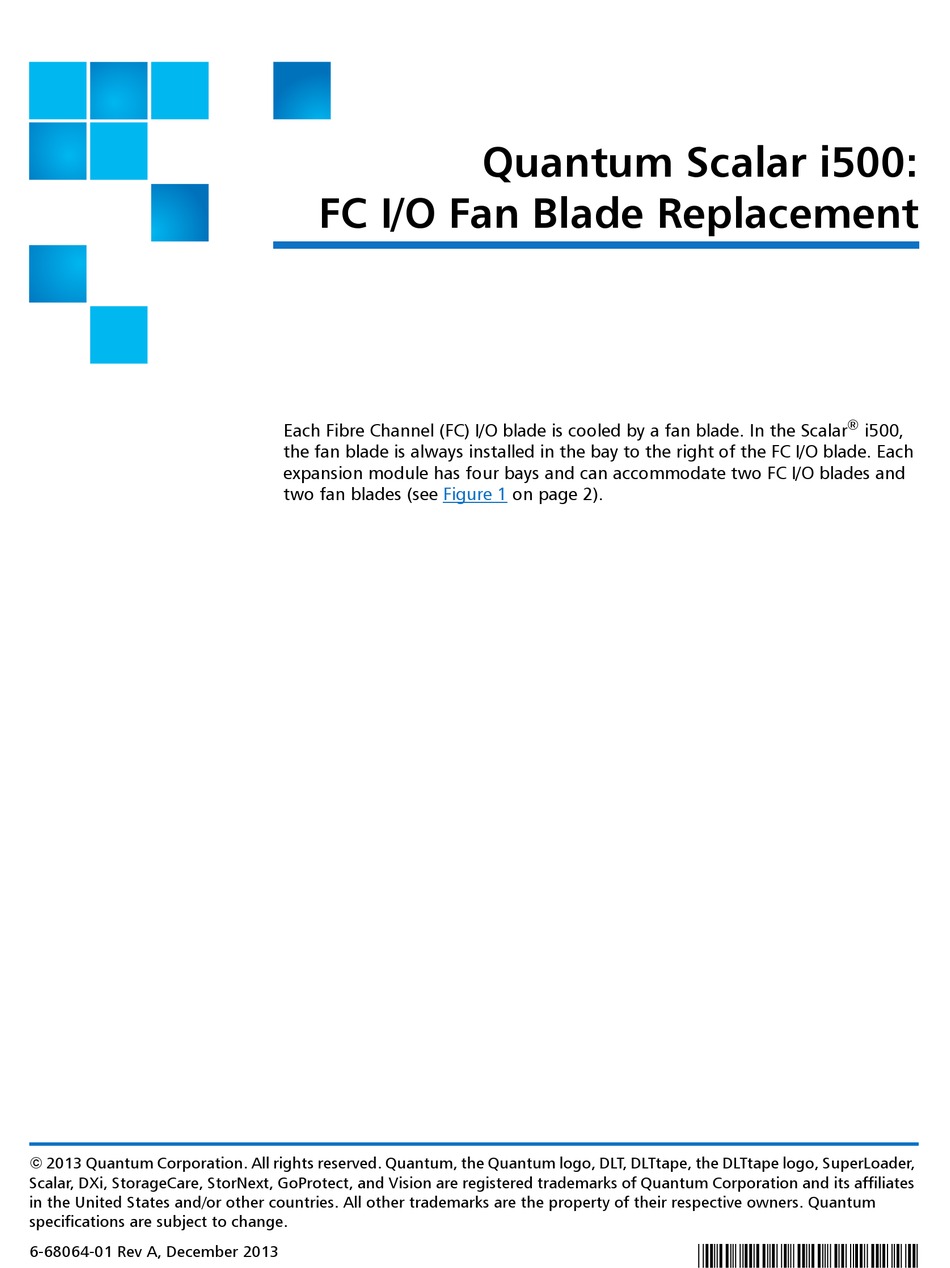

FC I/O Fan Blade Replacement

Each Fibre Channel (FC) I/O blade is cooled by a fan blade. In the Scalar

the fan blade is always installed in the bay to the right of the FC I/O blade. Each

expansion module has four bays and can accommodate two FC I/O blades and

two fan blades (see

Figure 1

Quantum Scalar i500:

on page 2).

i500,

*6-68064-01*

Table of Contents

Need help?

Do you have a question about the Scalar i500 and is the answer not in the manual?

Page 1 © 2013 Quantum Corporation. All rights reserved. Quantum, the Quantum logo, DLT, DLTtape, the DLTtape logo, SuperLoader, Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum specifications are subject to change.
Page 2 Quantum Scalar i500: FC I/O Fan Blade Replacement 6-68064-01 Rev A December 2013 Figure 1 FC I/O Blade and Fan Blade Bays in an Expansion Module Expansion module FC I/O blade Fan blade Latch hooks, locked FC I/O fan blade LED...
Page 3 Quantum Scalar i500: FC I/O Fan Blade Replacement 6-68064-01 Rev A December 2013 3 Lift the latch hooks out of the locked position (see Figure 1), and push them up. You will feel the FC I/O fan blade unplug from the expansion module’s backplane.
Page 4 Quantum Scalar i500: FC I/O Fan Blade Replacement 6-68064-01 Rev A December 2013 3 Carefully align the FC I/O fan blade with the guide slots in the bay. The status LED must be at the bottom (see Figure Caution: Forcing the blade into the bay can cause the pins to bend.
