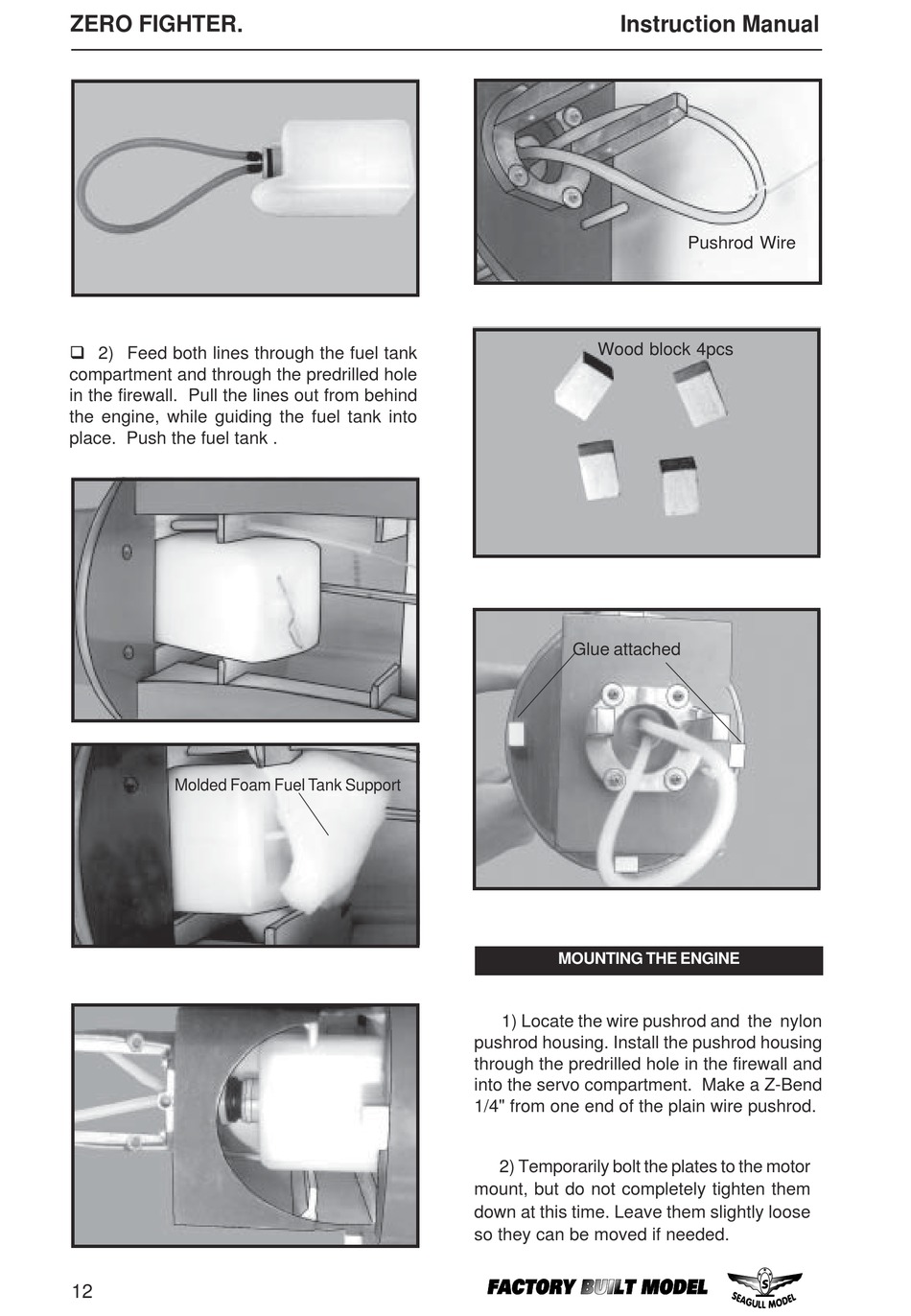

Mounting The Engine - Seagull Models ZERO FIGHTER Assembly Manual

ZERO FIGHTER.
! 2) Feed both lines through the fuel tank
compartment and through the predrilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank .
Molded Foam Fuel Tank Support
12
Instruction Manual
Wood block 4pcs
Glue attached

MOUNTING THE ENGINE

! ! ! ! !
1) Locate the wire pushrod and the nylon
pushrod housing. Install the pushrod housing
through the predrilled hole in the firewall and
into the servo compartment. Make a Z-Bend
1/4" from one end of the plain wire pushrod.
! ! ! ! !
2) Temporarily bolt the plates to the motor
mount, but do not completely tighten them
down at this time. Leave them slightly loose
so they can be moved if needed.
Pushrod Wire
