ZERO FIGHTER.
! ! ! ! !

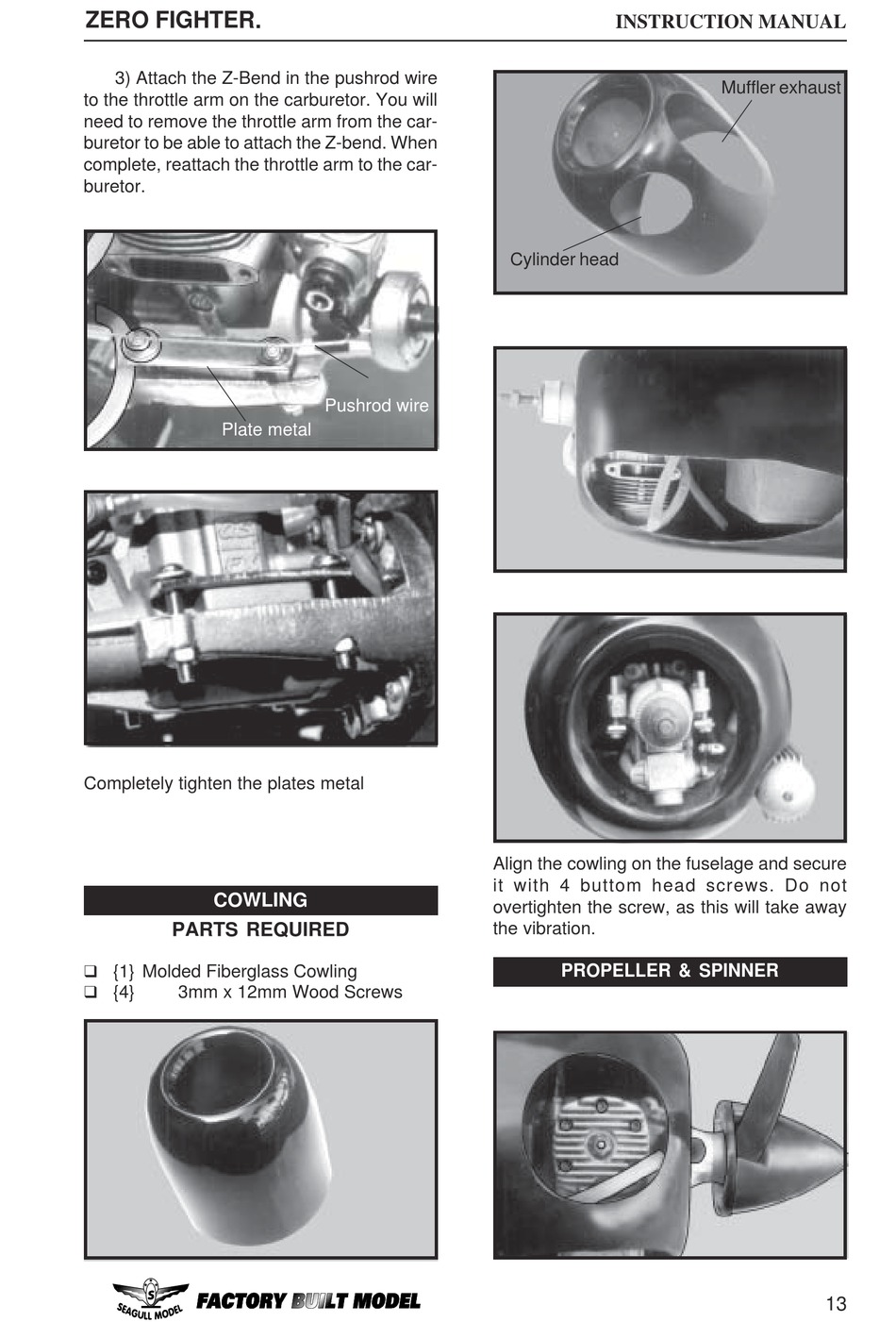

3) Attach the Z-Bend in the pushrod wire
to the throttle arm on the carburetor. You will
need to remove the throttle arm from the car-
buretor to be able to attach the Z-bend. When
complete, reattach the throttle arm to the car-
buretor.
Plate metal
Completely tighten the plates metal
COWLING
PARTS REQUIRED
!
{1} Molded Fiberglass Cowling
!
{4} 3mm x 12mm Wood Screws
Pushrod wire
Align the cowling on the fuselage and secure
it with 4 buttom head screws. Do not
overtighten the screw, as this will take away
the vibration.
INSTRUCTION MANUAL
Cylinder head
PROPELLER & SPINNER
Muffler exhaust
13
