Tail Wheel Installation - Seagull Models ZERO FIGHTER Assembly Manual

ZERO FIGHTER.
6cm
Elevator pushrod slot exit
Tail wheel pushrod exit slot
Draw a straight line -
continue with rudder slot
Rudder pushrod slot exit
1.2cm
5.5cm
16
Draw pen line
Instruction Manual

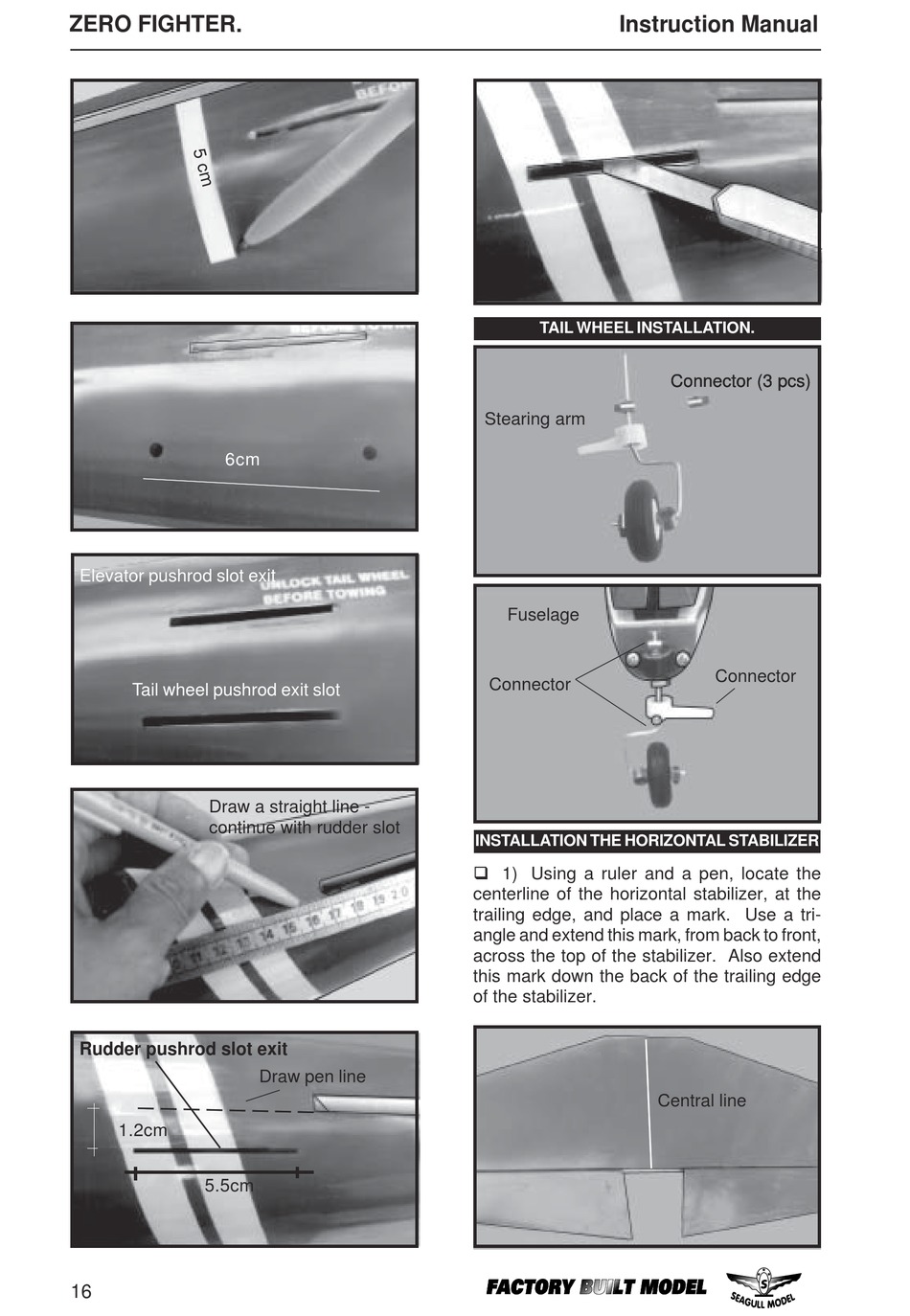

TAIL WHEEL INSTALLATION.

Stearing arm
Fuselage
Connector
INSTALLATION THE HORIZONTAL STABILIZER
! 1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a tri-
angle and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge
of the stabilizer.
Connector (3 pcs) Connector (3 pcs) Connector (3 pcs)
Connector
Central line
