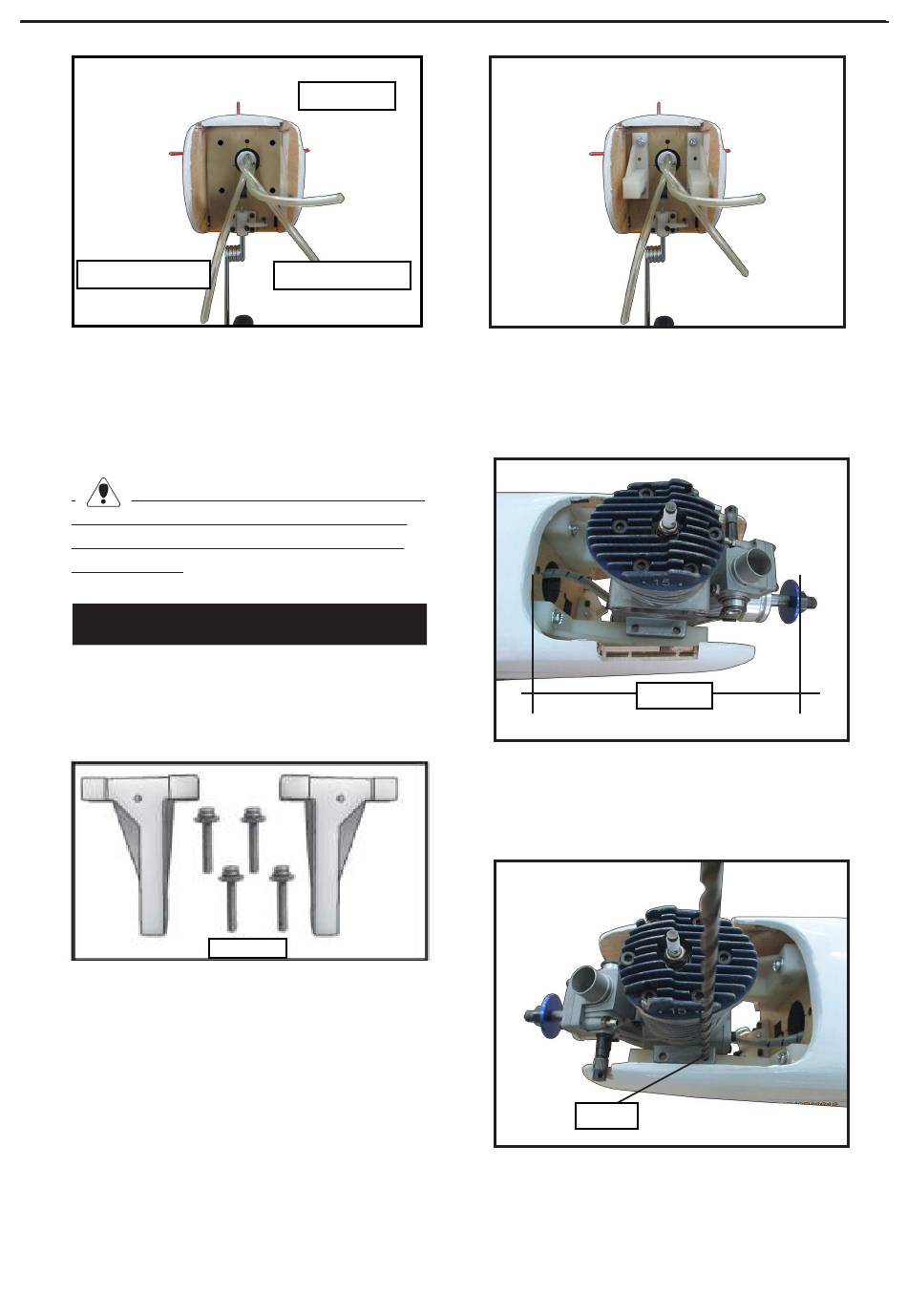

5.
Fuel pick up tube
Connect the lines from the tank to the
engine and muler. he vent line will
connect to the muler and the line from
the clunk tothe carburetor.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should low
through easily.

MOUNTING THE ENGINE

Locate the items necessary to install the
engine mount included with your model.
1.
Use four 4x25mm head bolts and four
4mm washers to attach the engine mount
rails to the irewall. Tighten the screws
.Make sure to use threadlock on the
screws to help prevent them from vibrat-
ing loose.
Vent tube
Fuel ill tube
4x25mm
2.
Position the engine with the drive wash-
er (135mm) forward of the irewall as
shown.
3.
Use a pin drill and 4mm drill bit to drill
a small indentation in the mount for the
engine mounting screw.
4.
4mm
Use a drill to drill the four holes in the
engine mount rails.
135mm
17
