ZERO FIGHTER.

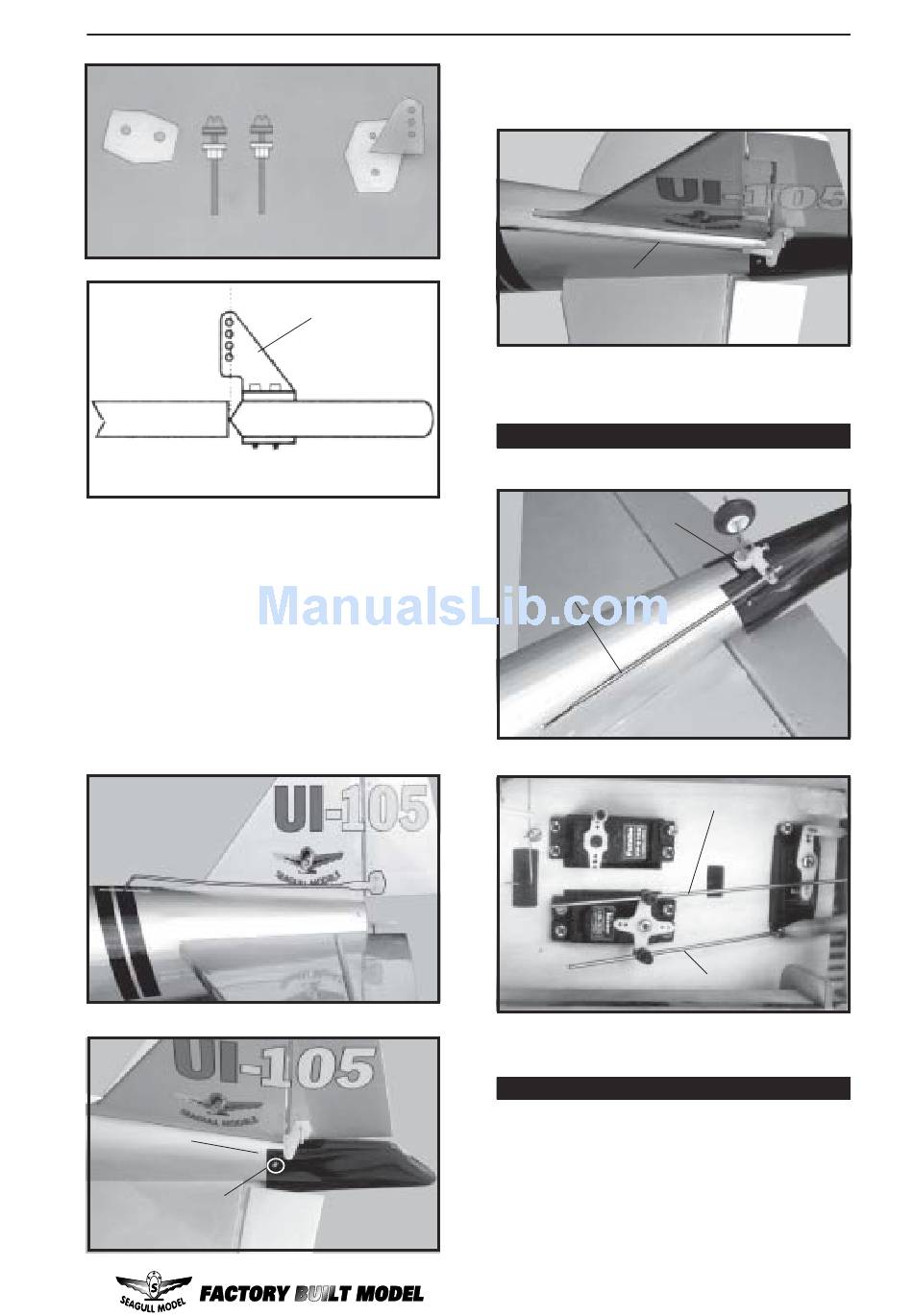

Mounting Screws
! ! ! ! !
3) Using a 1mm drill bit and the control
horn as a guide, drill the mounting holes
through the rudder .
! ! ! ! !
4) Mount the control horns by inserting the
screws through the control horn bases and rudder
then into the mounting backplates. Do Not
overtighten the screws or the backplates may crush
the wood.
! ! ! ! !
5) Installing the tail fairing as same as
picture bellow.
Epoxy secure
tail fairing
4 pcs machine screws
(2pcs for each side)
Control Horn
Mounting Plate
INSTRUCTION MANUAL
! ! ! ! !
5) Rudder pushrod installation as same
as picture below
Pushrod wire
TAIL WHEEL PUSHROD INSTALLATION
Stearing arm
Tail wheel
pushrod wire
Tail wheel pushrod
Rudder pushrod.
ELEVATOR VONTROL HORN INSTALLATION
! ! ! ! !
1) Locate the one nylon control horn.
! ! ! ! !
2) Position the elevator control horn on
the bottom side of elevator. The clevis
attachment holes should be positioned over
the hinge line.
