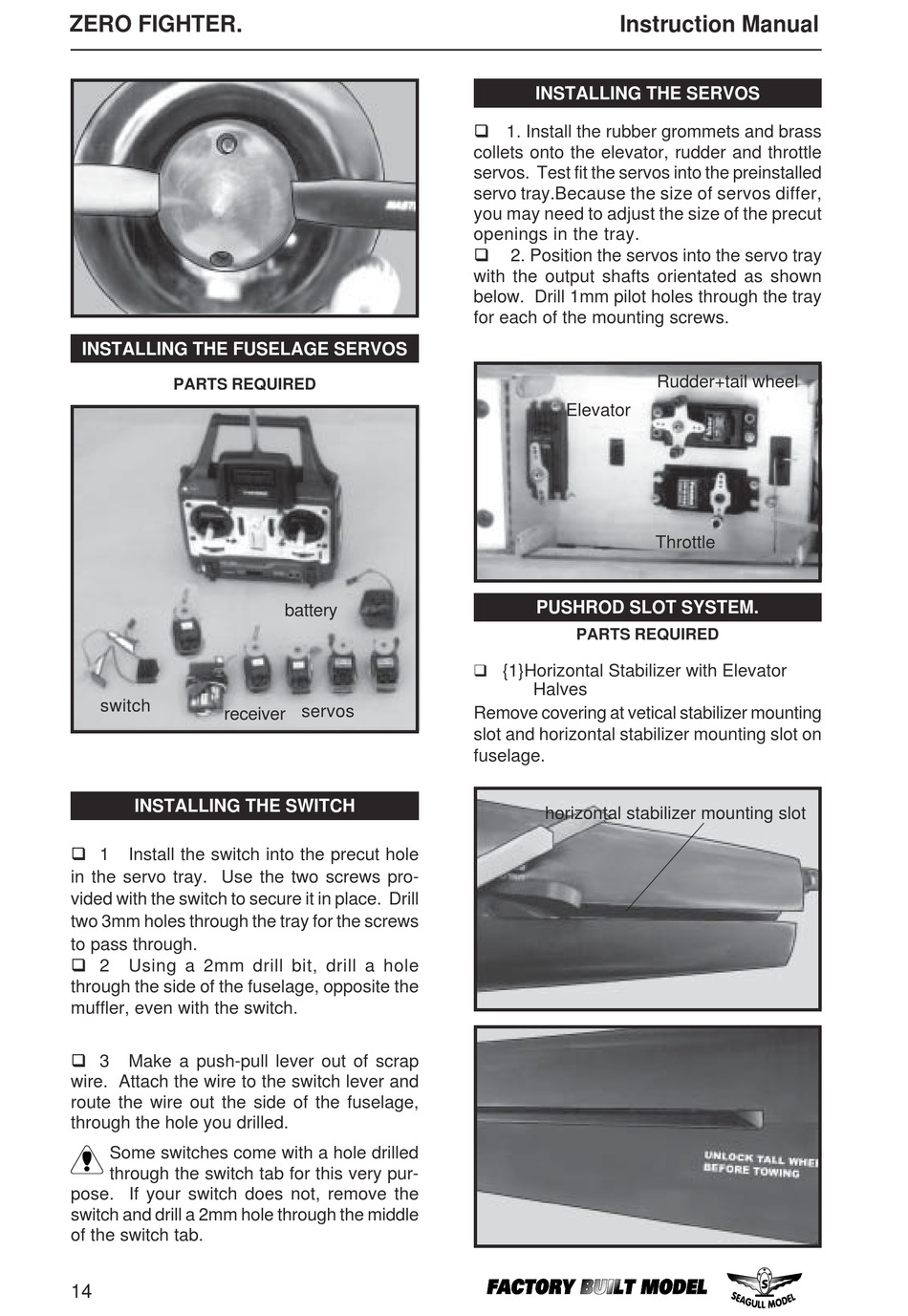

Installing The Fuselage Servos; Installing The Switch - Seagull Models ZERO FIGHTER Assembly Manual

ZERO FIGHTER.

INSTALLING THE FUSELAGE SERVOS

PARTS REQUIRED
switch
receiver

INSTALLING THE SWITCH

! 1
Install the switch into the precut hole
in the servo tray. Use the two screws pro-
vided with the switch to secure it in place. Drill
two 3mm holes through the tray for the screws
to pass through.
! 2
Using a 2mm drill bit, drill a hole
through the side of the fuselage, opposite the
muffler, even with the switch.
! 3
Make a push-pull lever out of scrap
wire. Attach the wire to the switch lever and
route the wire out the side of the fuselage,
through the hole you drilled.
Some switches come with a hole drilled
through the switch tab for this very pur-
pose. If your switch does not, remove the
switch and drill a 2mm hole through the middle
of the switch tab.
14
battery
servos
Instruction Manual
INSTALLING THE SERVOS
! 1. Install the rubber grommets and brass
collets onto the elevator, rudder and throttle
servos. Test fit the servos into the preinstalled
servo tray.Because the size of servos differ,
you may need to adjust the size of the precut
openings in the tray.
!
2. Position the servos into the servo tray
with the output shafts orientated as shown
below. Drill 1mm pilot holes through the tray
for each of the mounting screws.
Elevator
PUSHROD SLOT SYSTEM.
PARTS REQUIRED
!
{1}Horizontal Stabilizer with Elevator
Halves
Remove covering at vetical stabilizer mounting
slot and horizontal stabilizer mounting slot on
fuselage.
horizontal stabilizer mounting slot
Rudder+tail wheel
Throttle
