SEAGU LL 4 0
LOW WING TRAINER.

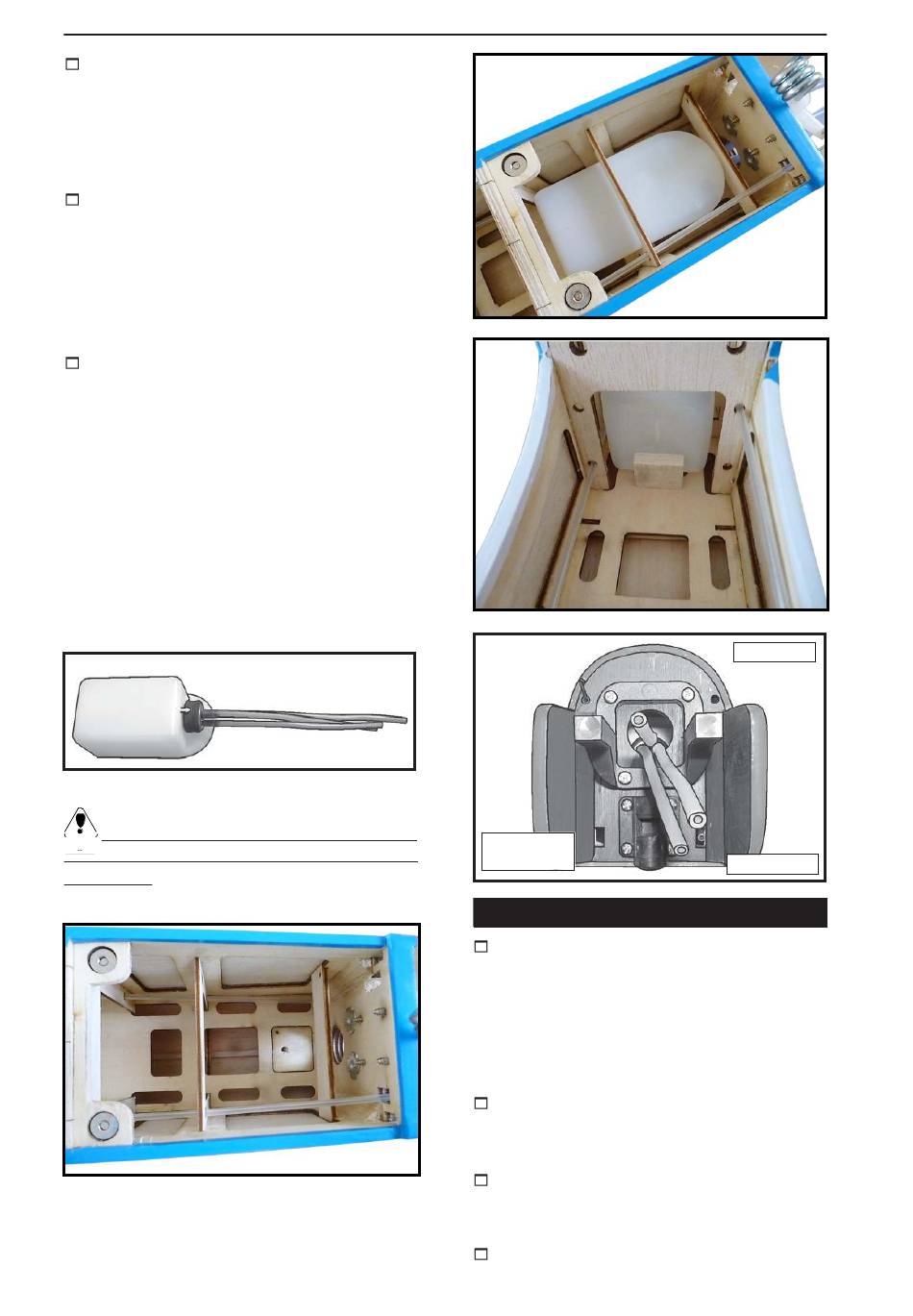

5) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
6) With the stopper assembly in place,
the weighted pick up should rest about 3/8"
away from the rear of the tank and move freely
inside the tank. The top of the vent tube should
rest just below the top of the tank. It should
not touch the top of the tank.
7) When satisfied with the alignment of
the stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
Using a modeling knife, cut one length of
fuel line 20" long. Connect one line to the vent
tube and one line to the fuel pick up tube on
the stopper. See picture bellow.
Blow through the tubes to make sure the
lines have not become kinked during
installation.
8
Instruction Manual.
Fuel pick up
tube.

MOUNTING THE ENGINE.

1) Install the pushrod housing through the
predrilled hole in the firewall and into the servo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Make a Z-Bend 1/4" from one end of the plain
wire pushrod.
2) Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
3) When you are satisfied with the align-
ment, mark the locations of the engine
mounting.
4) Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.
Vent tube.
Fuel fill tube.
