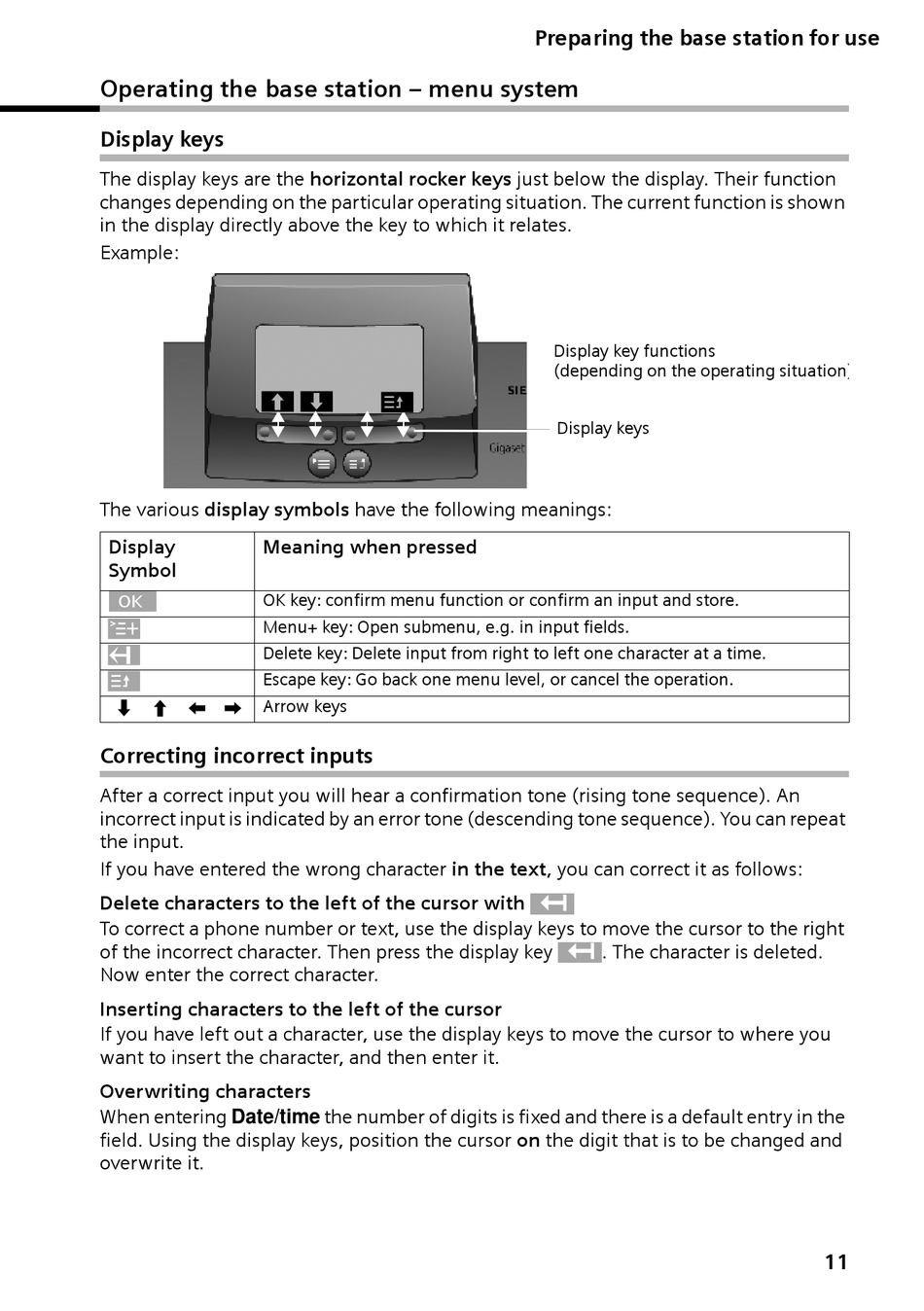

Operating the base station – menu system
Display keys
The display keys are the horizontal rocker keys just below the display. Their function
changes depending on the particular operating situation. The current function is shown
in the display directly above the key to which it relates.
Example:
Y Z
The various display symbols have the following meanings:
Display Meaning when pressed
Symbol
OK key: confirm menu function or confirm an input and store.
OK
W
Menu+ key: Open submenu, e.g. in input fields.
X
Delete key: Delete input from right to left one character at a time.
{
Escape key: Go back one menu level, or cancel the operation.
s t u v
Arrow keys
Correcting incorrect inputs
After a correct input you will hear a confirmation tone (rising tone sequence). An
incorrect input is indicated by an error tone (descending tone sequence). You can repeat
the input.
If you have entered the wrong character in the text, you can correct it as follows:
Delete characters to the left of the cursor with
To correct a phone number or text, use the display keys to move the cursor to the right
of the incorrect character. Then press the display key
Now enter the correct character.
Inserting characters to the left of the cursor
If you have left out a character, use the display keys to move the cursor to where you
want to insert the character, and then enter it.
Overwriting characters
When entering Date/time the number of digits is fixed and there is a default entry in the
field. Using the display keys, position the cursor on the digit that is to be changed and
overwrite it.
Preparing the base station for use
Display key functions
(depending on the operating situation)
{
ß
Display keys
ß
. The character is deleted.
11
