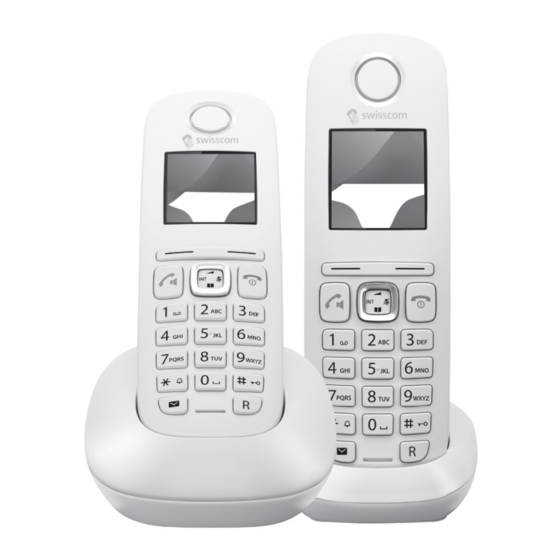

Aton CL118 DUO
Bedienungsanleitung
Mode d'emploi
Istruzioni per l'uso

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aton CL118 DUO and is the answer not in the manual?

Questions and answers

Related Manuals for Swisscom Aton CL118 DUO

Summary of Contents for Swisscom Aton CL118 DUO

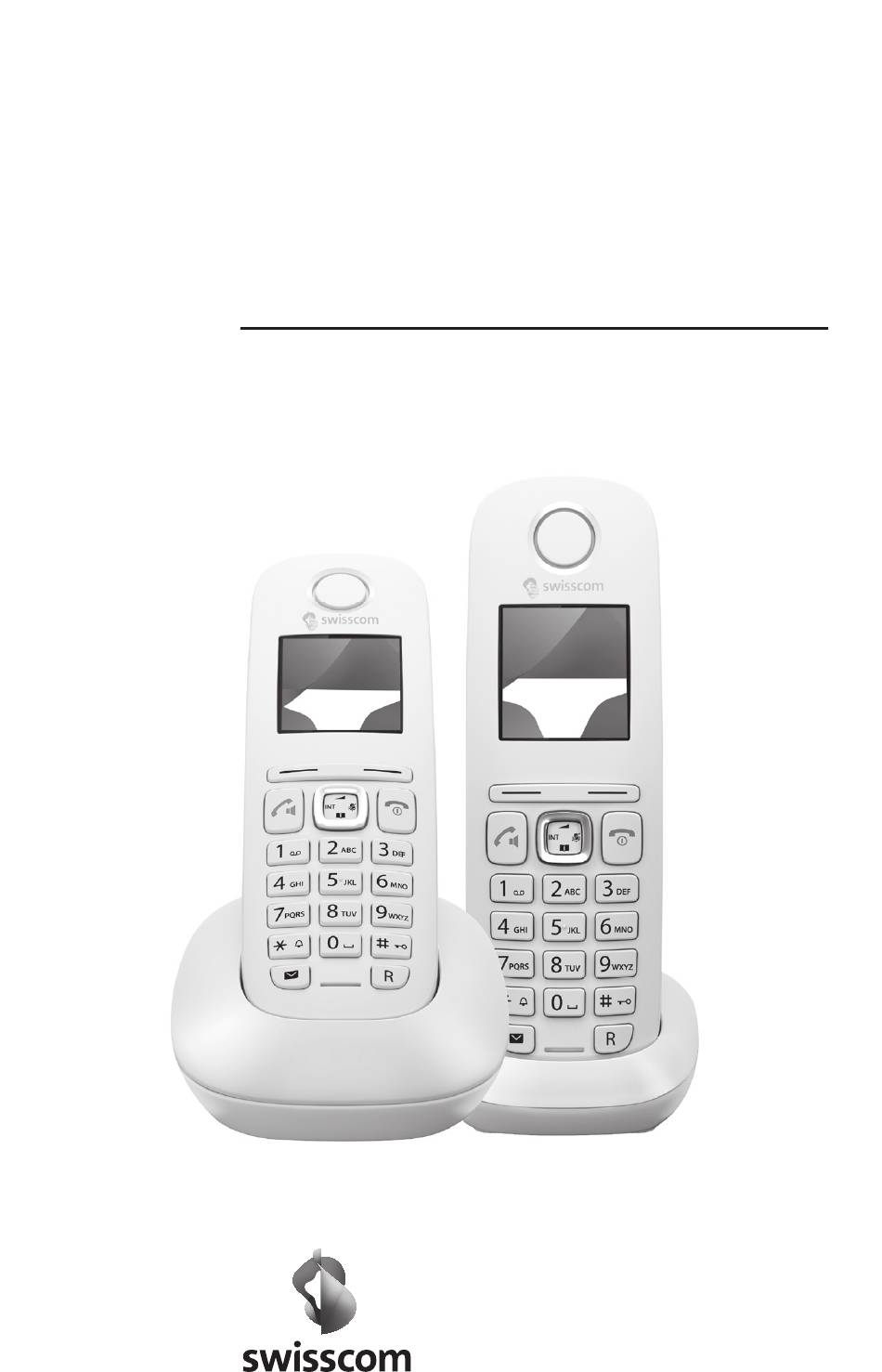

  • Page 1 Aton CL118 DUO Bedienungsanleitung Mode d’emploi Istruzioni per l’uso...
  • Page 2 Aton CL118 Ð...

  • Page 3: Overview

    Overview Overview Handset Aton CL118 base Display Registration/paging key ¢ ¤ ¢ Status bar ( page 31) Locating a handset ("paging") Press briefly ¤ page 20. Icons display current settings and operating status of the ¢ Register handsets and DECT Hold down ¢...

  • Page 4: Using The User Guide Effectively

    Overview Using the user guide effectively Icons Warnings, the non-adherence to which can lead to injury to persons or damage to devices or generate costs. Prerequisite, to be able to carry out the following action. Important information regarding function and appropriate handling. Keys Talk key c/ End call key a Number/letter keys Q to O...

  • Page 5: Table Of Contents

    Contents Contents Overview ............... . 1 Aton CL118 base .

  • Page 6: Safety Precautions

    Safety precautions Safety precautions • Read the safety precautions and the user guide before use. • Explain their content and the potential hazards associated with using the device to your children. • The device cannot be used in the event of a power failure. In case of a power failure it is also not possible to make emergency calls.

  • Page 7: Environmental Benefits Of The Aton Cl118

    Safety precautions Environmental benefits of the Aton CL118 Your telephone has a low level of energy consumption and reduces radiation. Reduced power consumption Your telephone has a power-saving adapter plug and uses 60% less power than standard devices. Power consumption in standby mode is approx. 1.3 watt. Minimal radiation Your telephone with its preset ECO DECT (Eco Mode plus) switches off all radiation when in idle status.

  • Page 8: Getting Started

    Getting started Getting started Contents of the package • One base, • One power adapter for the base, • One telephone cord, • One handset, • One battery cover (rear cover for the handset), • Two batteries, • One user guide. Sales variants with multiple handsets: The package should contain two batteries, a battery cover and a charging cradle with power adapter for each additional handset.
  • Page 9 Getting started Connecting the charging cradle (if included) ¤ Connect the flat plug of the power adapter to the charging cradle ¤ Plug the power adapter into the power socket If you have to remove the plug from the charging cradle again: ¤...
  • Page 10 Getting started Display language ¤ ¤ ¤ ¤ ¤ ¤ ¤ q Settings q Language . . . select language with q Menu OK (³ = selected) If you do not understand the language currently set: ¤ ¤ ¤ ¤ .

  • Page 11: Using The Telephone

    Using the telephone Using the telephone Switching the handset on/off ¤ Press and hold the End call key a. In idle status: Locking/unlocking the keypad The keypad lock prevents any accidental use of the telephone. ¤ ( hold down Activating/deactivating keypad lock: •...

  • Page 12: Making Calls

    Using the telephone Menu guidance The functions of the telephone are displayed in a menu that consists of several levels. Opening the main menu (in idle status): ¤ ¤ ¤ Press right v on the control key . . . scroll to the function with the control key q Returning to the previous menu level: ¤...
  • Page 13 • Unavailable: Calling Line Identification does not work By default, the number of the caller is shown on your telephone. In the Swisscom network, CLIP is transmitted automatically. Handsfree mode Activating/deactivating handsfree mode during a call and when establishing a connection: ¤...
  • Page 14 Using the telephone Call volume • Accessing the settings during a call for the mode currently in use (handsfree, earpiece): ¤ ¤ ¤ Control key t . . . set volume with q The setting is automatically stored after around 2 seconds, even if OK is not pressed. •...

  • Page 15: Network Mailbox (Combox)

    Using the telephone Network mailbox (Combox) To be able to use the network mailbox, it must be requested from the network provider and the number must be stored in the telephone. The access number of the Combox is 086 and should be pre- ¤...

  • Page 16: Messages

    Using the telephone Messages Message lists Incoming messages are saved in the message lists. An advisory tone sounds Example Ð ¢ as soon as a new entry appears on a list. The Message key also flashes (if activated, page 14). Icons for message types and the number of new messages are shown on the idle display: ¢...

  • Page 17: Phonebook (Address Book)

    Using the telephone Call lists The call list contains the last 25 numbers for all calls or for only missed (not received) calls, depending on the type of list set. The following information is displayed in the list entries: Example •...
  • Page 18 Using the telephone Phonebook entries Creating an entry ¤ s . . . then • Storing the first entry in the phonebook: ¤ ¤ ¤ ¤ ¤ ¤ . . . enter number with ~ . . . enter name with ~ Dir.
  • Page 19 Using the telephone Copying an entry/phonebook The entire phonebook or individual entries can be copied. • The sending and receiving handset must both be registered to the same base. • The other handset and the base can send and receive phonebook entries. •...

  • Page 20: Additional Functions

    Additional functions Additional functions Alarm clock ¢ An alarm call is signalled on the display and with the selected volume and melody ( page 23) for a maxi- mum of 60 seconds. During a call, the alarm is only indicated by a short tone. ¢...
  • Page 21 Additional functions Deactivating radiation in idle status ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ q Settings q System Menu ECO DECT No Radiation OK (³ = deactivated) • To benefit from the advantages of the setting No Radiation, all registered handsets must support this feature.

  • Page 22: Expanding The Functionality Of The Telephone

    Expanding the functionality of the telephone Expanding the functionality of the telephone Multiple handsets Upgrade the telephone to a cordless PABX. Registering A total of up to four handsets can be registered to the base. • Handset registration must be initiated on the base and on the handset. •...

  • Page 23: Repeater

    Expanding the functionality of the telephone Making internal calls Calling a specific handset ¤ ¤ ¤ Briefly press u . . . the list of handsets opens . . . select the handset with q . . . press the Talk key c Calling all handsets (group call) ¤...

  • Page 24: Operation With Router

    Expanding the functionality of the telephone Operation with router When operating on the analogue connection of a router, potentially occurring echoes can be reduced by activating XES mode ¤ ¤ ¤ ¤ ¤ ¤ ¤ q Settings q System q XES Mode Menu OK (³...

  • Page 25: Adjusting The Telephone Settings

    Adjusting the telephone settings Adjusting the telephone settings Display Language Different languages are available for the display. ¤ ¤ ¤ ¤ ¤ ¤ ¤ q Settings q Language . . . select language with q Menu OK (³ = selected) Screensaver A digital clock can be set as a screensaver.
  • Page 26 Adjusting the telephone settings Advisory tones/battery warning tone The handset notifies acoustically about different activities and statuses. The tones can be activated/ deactivated independently of one another. ¤ ¤ ¤ ¤ ¤ q Settings q Audio Settings OK . . . then Menu ¤...
  • Page 27 Adjusting the telephone settings Call protection with Blacklist When activated, calls from numbers in the Blacklist are shown in the display only. Your phone does not ring. • The setting applies to all registered handsets. • You can store up to 15 numbers. •...

  • Page 28: Manufacturer's Advice

    If, at the request of the Customer, defects and faults are remedied at his place of residence (not possible for all devices), Swisscom shall charge the Customer for the travel to the work site, the use of vehicles and the duration of the work.
  • Page 29 Manufacturer's advice Faults and self-help with troubleshooting Not every problem signifies a fault in your telephone. In some cases, problems can be resolved by briefly interrupting the power supply to the base station (unplug the power supply unit and then plug it in again) or removing the battery cells from the handset and reinserting them. The following information is designed to help you with specific problems.

  • Page 30: Appendix

    Manufacturer's advice The caller's number is not displayed. ¤ • Calling Line Identification (CLI) is not approved for the caller: Caller should ask the network provider to enable Calling Line Identification (CLI). ¤ • Calling Line Identification Presentation (CLIP) is not supported or approved by the network provider: Caller display (CLIP) must be enabled by the network provider.
  • Page 31 Manufacturer's advice Technical data Batteries Technology: 2 x AAA NiMH Voltage: 1.2 V Capacity: 400 mAh Handset operating times/charging times The operating time of the telephone depends on the capacity of the battery, its age and the way it is used. (All times are maximum possible times).
  • Page 32 Manufacturer's advice Pin connections on the telephone jack 1 unused 2 unused 5 unused 6 unused Character charts 9x 10x 11x 12x 13x 14x 15x Standard characters £ ¥ ¤ Press the relevant key the number of times indicated. ä á...

  • Page 33: Display Icons

    Manufacturer's advice Display icons The following icons are displayed depending on the settings and the operating status of the telephone. Icons in the status bar Icon Meaning Icon Meaning ó Signal strength Ringtone deactivated ¦ Ð (No Radiation is deactivated) Ø...

  • Page 34: Index

    Index ......Conformity Index Connecting the base ......to the PABX .
  • Page 35 Index ....... Handset Liquid ..... . advisory tones List .
  • Page 36 Index Playing back System PIN ........message (network mailbox) changing .
