Summary of Contents for Swisscom Aton CL120-CLT120

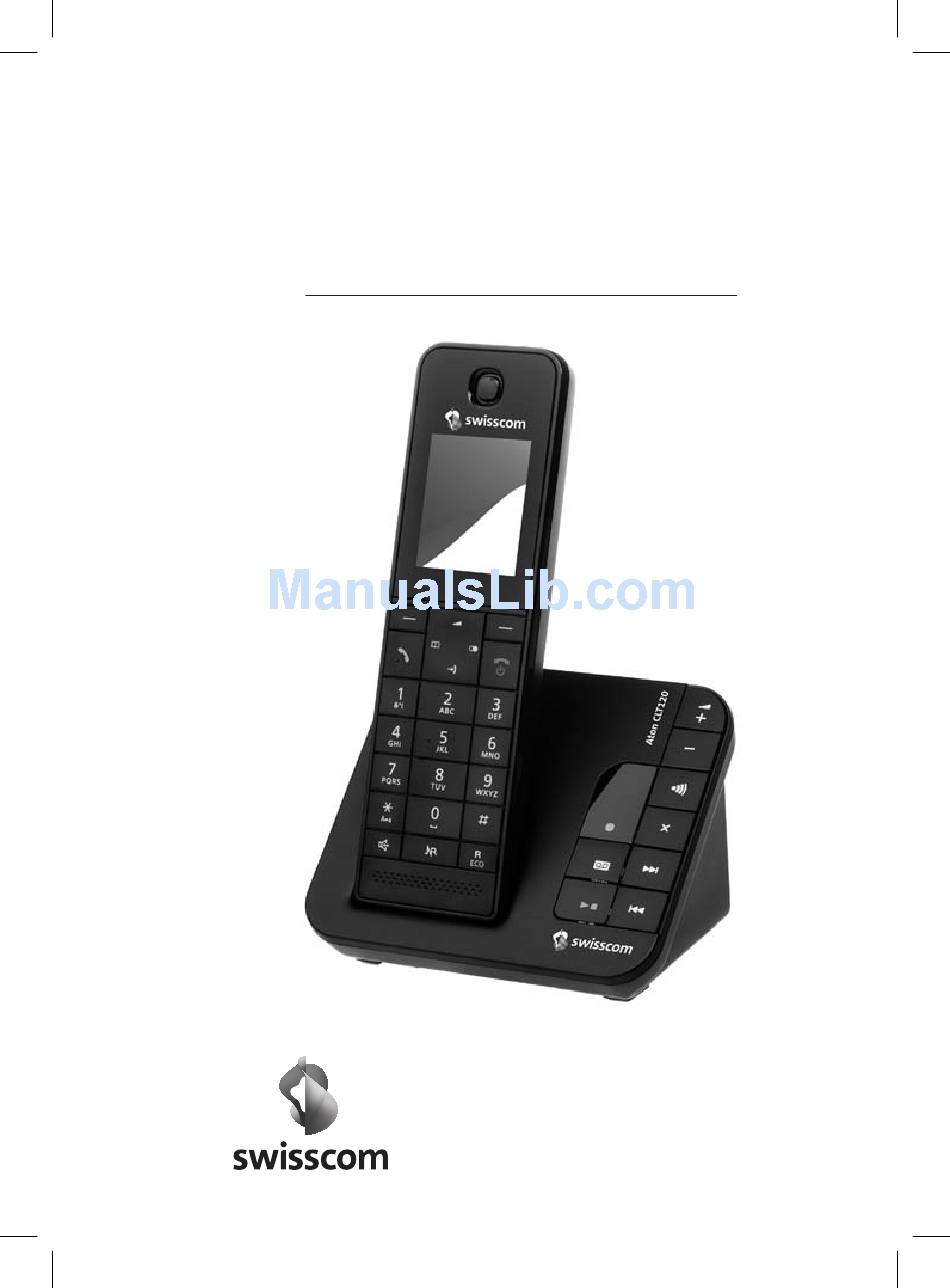

  • Page 1 Aton CL120-CLT120 Operating Instruction...

  • Page 2: Table Of Contents

    Table of Contents Introduction Answering System Model composition ........3 Answering system ........38 Accessory information ........3 Turning the answering system on/off ..38 General information ........4 Greeting message ........38 Support/Warranty/Approval/Conformity/ Listening to messages .......39 Maintenance ..........5 Advanced new message alerting features ............41 Important Information Remote operation ........42 For your safety ..........6...

  • Page 3: Introduction

    Telephone plug (Adaptor RJ11/TT83) Rechargeable batteries Handset cover See page 4 for replacement battery information. The handset cover comes attached to the handset. Additional/replacement accessories All accessories and batteries are available from specialist retailers or at www.swisscom.ch/onlineshop ATON_CL120_CLT120(en-de)_0722_ve3 2014/07/22 15:07:45...

  • Page 4: General Information

    KX-TGA20EX Replacement batteries may have a different capacity from that of the supplied batteries. The key finder is not offered by Swisscom. By registering the key finder (4 max.) to a digital cordless phone with type Aton CL117, CLx120, CLx200, CLx210 and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key finder is attached.

  • Page 5: Support/Warranty/Approval/Conformity/Maintenance

    Customer, defects and faults are remedied at his place of residence (not possible for all devices), Swisscom shall charge the Customer for the travel to the work site, the use of vehicles and the duration of the work.

  • Page 6: Important Information

    Important Information R Do not allow the AC adaptor or telephone line cord to be excessively pulled, bent or For your safety placed under heavy objects. To prevent severe injury and loss of life/ Operating safeguards property, read this section carefully before using the product to ensure proper and safe R Unplug the product from power outlets operation of your product.

  • Page 7: Important Safety Instructions

    Important Information – the handset batteries need recharging or 4. Use only the power cord and batteries have failed. indicated in this manual. Do not dispose of – there is a power failure. batteries in a fire. They may explode. –...

  • Page 8: Other Information

    Important Information temperature is less than 0 °C or greater major contribution towards environmental than 40 °C. Damp basements should also protection. be avoided. R The maximum calling distance may be shortened when the product is used in the following places: Near obstacles such as hills, tunnels, underground, near metal objects such as wire fences, etc.

  • Page 9: Getting Started

    Getting Started Important: Setting up R To install the telephone line cord, push the attached plug completely into the wall jack Connections Do not leave a space between the plug and wall jack ( n Base unit Connect the AC adaptor to the unit by pressing the plug firmly.

  • Page 10: Note When Setting Up

    Getting Started R When the batteries are fully charged, telephone line cords. Clean more often if “Geladen” is displayed. the unit is exposed to grease, dust, or high humidity. Battery level Icon Battery level High Medium Needs charging. Panasonic Ni-MH battery Note when setting up performance (supplied batteries) Note for connections...

  • Page 11: Controls

    Getting Started indicator Controls Charge contacts n Control type Soft keys Handset By pressing a soft key, you can select the feature shown directly above it on the display. Navigator key Navigator keys functions as follows. Symbol Meaning Down Left Right –...

  • Page 12: Display Icons

    Getting Started N (Locator) Item Meaning R You can locate a misplaced handset Paging, intercom mode by pressing M Speakerphone is on. n Aton CLT120 series: page 3 (page 16) The line is in use. R When flashing slowly: The call is put on hold.

  • Page 13: Turning The Power On/Off

    Getting Started Item Meaning Icon Action Baby monitor is activated. Selects entries or handsets. The name/number displayed (page 15, 29) next to the icon indicates the Plays a message. monitoring unit. (page 31) Stops recording or playback. Leitg. Someone is using the line. Stores phone numbers.

  • Page 14: Date And Time

    Getting Started n When the indicator flashes rapidly, Date and time you can: – Answer the call (outside call, intercom). (page 16, 18) N (right soft key) #101 – Stop paging. Enter the current date, month, and year. – Stop the alarm sound. (page 29) a MOKN Example: 15 July, 2014 n When the...
  • Page 15 Getting Started – “Entgangener Anruf” (Default: Off) When this setting is selected, The settings can be set for each handset. displayed on the handset display instead of Aton CLT120 series: page 3 – “ECO Aus” (default setting): Turns off eco N (right soft key) #278 mode.

  • Page 16: Making/Answering Calls

    Making/Answering Calls and/or PIN in the phonebook, a pause is also needed (page 20). Making calls Example: If you need to dial the line access number “0” when making outside calls with a Lift the handset and dial the phone PBX: number.

  • Page 17: Useful Features During A Call

    Note: R Please contact your service provider/ telephone company for details and Useful features during a availability of this service in your area. R In the Swisscom network CLIP is call transmitted automatically. Hold Handset noise reduction Press M N during an outside call.

  • Page 18: Intercom

    Making/Answering Calls Note: Making an intercom call R To prevent other users from joining your conversations with outside callers, turn the N (right soft key) a M privacy mode on (page 27). MbN: Select the desired unit. a MOKN When you finish talking, press M Transferring calls, conference calls Answering an intercom call...

  • Page 19: Phonebook

    Phonebook To store the name, continue from step 3, Phonebook “Editing entries”, page 20. You can add 200 names (16 characters max.) Categories and phone numbers (24 digits max.) to the phonebook, and assign each phonebook entry Categories can help you find entries in the to the desired category.

  • Page 20: Speed Dial

    Phonebook Note: R When storing a calling card access number and your PIN in the phonebook as one Editing entries phonebook entry, press MDN (Pause) to add pauses after the number and PIN as Find the desired entry (page 19). a M necessary (page 16).
  • Page 21 Phonebook Edit the phone number if necessary. a MOKN 2 times a M Erasing an entry Press and hold the desired speed dial key (1 to 9). a M MbN: “Löschen” a MOKN MbN: “Ja” a MOKN a M Viewing an entry/Making a call Press and hold the desired speed dial key (1 to 9).

  • Page 22: Programming

    Programming Menu list To access the features, there are 2 methods. n Scrolling through the display menus N (right soft key) Press MCN, MDN, MEN, or MFN to select the desired main menu. a MOKN Press MCN or MDN to select the desired item from the next sub-menus. a MOKN Press MCN or MDN to select the desired setting.
  • Page 23 Programming Sub-menu 1 Sub-menu 2 Settings Code Hinweiston neue Ausgehender Anruf #338 – Ein/Aus <Aus> Nachr. Ausgehender Anruf – – Benachrichtigung Ausgehender Anruf Aktivieren – Fernabfrage <Deaktivieren> Hinweiston Basis #339 <Aus> Einstellungen 2-7 Rufzahl #211 Anzahl Ruftöne <4 Rufzahl> Automatisch 1 Minute #305 Aufnahmezeit...
  • Page 24 Programming Main menu: “Anzeige-Einstellungen” Sub-menu 1 Sub-menu 2 Settings Code Hintergrund – <Hintergrund1> #181 – – <Ein> #198 – Displayfarbe – <Farbe1> #182 – Farbe2 – <Mehrfache #192 – Display-Modus Einträge> Einzeleinträge Tastenbel. – <Ein> #276 – – <Ein> #191 –...
  • Page 25 Programming Sub-menu 1 Sub-menu 2 Settings Code Empfindlichkeit – #269 <Middle> High Main menu: “Einstellungen” Sub-menu 1 Sub-menu 2 Settings Code Ruftoneinstellungen Aus-6 <6> #160 – Ruflautstärke – Mobilteil Aus-6 <3> #G160 – Ruflautstärke *1, *2 – Basis <Klingelton 1> #161 –...
  • Page 26 Programming Sub-menu 1 Sub-menu 2 Settings Code Schlüssel-finder Finder1 #6561 – Name ändern Setup #6562 Finder2 – 1:Neues Gerät #6563 Finder3 hinzufügen (for Finder1) #6564 Finder4 – 2:Neues Gerät Anmelden – #6571 – hinzufügen (for #6572 Finder2) – 3:Neues Gerät #6573 hinzufügen (for #6574...
  • Page 27 Programming Sub-menu 1 Sub-menu 2 Settings Code Anzeige- <Hintergrund1> #181 – Hintergrund Einstellungen <Ein> #198 – <Farbe1> #182 – Displayfarbe Farbe2 <Mehrfache #192 – Display-Modus Einträge> Einzeleinträge Tastenbel. <Ein> #276 – <Ein> #191 – Licht bei Laden (LCD backlight) Mobilteil Name –...
  • Page 28 Programming Sub-menu 1 Sub-menu 2 Settings Code Anmelden Mobilteil anmelden – #130 Registrierung – #131 löschen Sprache Display <Deutsch> #110 *1, *2 <Deutsch> #112 Sprachführng Français Italiano Main menu: “Zeiteinstell.” Sub-menu 1 Sub-menu 2 Settings Code Datum/Uhr – – #101 eingeben Wecker Alarm1-5...

  • Page 29: Alarm

    Programming To use this feature, set the date and time first (page 14). *13 For models with supplied key finders, the display shows “1:Finder1”. *14 If you register 2 or more key finders. *15 If you have 2 or more key finders. *16 This menu is not displayed when repeater mode is set to “Ein”.

  • Page 30: Do Not Disturb Mode

    Programming MbN: Select the desired setting. a MOKN Do not disturb mode Note: Do not disturb mode allows you to select a period of time during which the handset will R When the answering system answers the not ring for outside calls. This feature is useful call, this feature does not work.

  • Page 31: Baby Monitor

    Programming Storing unwanted callers Viewing/editing/erasing call block numbers Storing a single phone number N (right soft key) #217 Important: MbN: “Einzelne Nummer” or R You must include the area code when “Nummernkreise” a MOKN storing phone numbers in the call block list. n From the caller list: MbN: Select the desired entry.
  • Page 32 Programming R Please note that direct call may not To monitor from an outside line function in exceptional cases, e.g. if the n From the phonebook: preprogrammed number is busy, if the preprogrammed mobile phone number has N (right soft key) #268 no reception, in case of a power outage or MbN: “Ein”...

  • Page 33: Other Programming

    Programming n When monitoring from an outside line: MbN: Select the outside line. a M To answer a call, follow the operation for N a MbN: “Eingeben” a MOKN your phone. If you want to respond from the monitoring Edit the name if necessary. a MOKN handset, press #1 using tone dialling.

  • Page 34: Registering A Unit

    Programming handsets from dialling any phone number in Changing the base unit PIN that area code. Important: N (right soft key) #256 R If you change the PIN (Personal Enter the base unit PIN (default: “0000”). Identification Number), please make note of R If you forget your PIN, contact an your new PIN.
  • Page 35 Increasing the range of the base unit You can increase the signal range of the base unit by using a DECT repeater. Please use only the Repeater RTX 4002 from Swisscom noted on page 4. Important: R Before registering the repeater to this base unit, you must turn the repeater mode on.

  • Page 36: Caller Id Service

    Using Caller ID service Caller ID features Caller list Note: Important: R In the Swisscom network CLIP is R Make sure the unit’s date and time setting transmitted automatically. is correct (page 14). When an outside call is being received, the caller information is displayed.

  • Page 37: Erasing All Caller Information

    Caller ID Service MbN: Select the desired entry. a M MbN: “Bearbeiten & Anrufen” a MOKN Edit the number. Erasing selected caller information MbN: Select the desired entry. N a MbN: “Ja” a MOKN a M Erasing all caller information N a MbN: “Ja”...

  • Page 38: Answering System

    Answering System Answering system Turning the answering system on/off Available for: The answering system is preset to on. Aton CLT120 series (page 3) Base unit The answering system can answer and record calls for you when you are unavailable to Press M N to turn on/off the answering answer the phone.

  • Page 39: Listening To Messages

    Answering System – If you erase or do not record your own Operation greeting message, the unit plays a Repeat message pre-recorded greeting asking callers to leave a message. Skip message – If the message recording time (page 44) Stop playback is set to “Nur Begrüß.”, callers’...

  • Page 40: Message List

    Answering System Note: Operation R To switch to the receiver, press M Record greeting message Turn answering system on Using the Smart-Taste Pause message When is displayed and the indicator 9 or MnN Stop recording flashes slowly, there are new messages. Stop playback Press M N in step 1 on “Using the handset”,...

  • Page 41: Advanced New Message Alerting Features

    Answering System n By entering a phone number: Advanced new message N (right soft key) #338 alerting features MbN: “Benachrichtigung” a MOKN MbN: “manuell” a MOKN Audible message alert Enter the desired name (16 characters This feature allows the base unit to beep to max.).

  • Page 42: Remote Operation

    Answering System cannot listen to your messages. The default Remote access code setting is “Deaktivieren”. – “Deaktivieren”: You can listen to the A 3-digit remote access code must be entered message by pressing 4 to play new when operating the answering system messages (without entering the remote remotely.

  • Page 43: Answering System Settings

    Answering System Remote commands Answering system settings You can press dial keys to access certain answering system functions without waiting for Call screening the voice guidance to prompt you. While a caller is leaving a message, you can Operation listen to the call through the handset’s Repeat message speaker.
  • Page 44 Answering System please contact your service provider/ telephone company to deactivate your voice mail service. If your service provider/telephone company cannot do this: – Set this unit’s “Anzahl Ruftöne” setting so that this unit’s answering system answers calls before the voice mail service of your service provider/ telephone company does.

  • Page 45: Useful Information

    Message Waiting Indicator (MWI) COMBOX basic can signal new messages on your telephone. If you don’t have a Swisscom COMBOX basic yet, you can order it for free. To register your COMBOX basic, dial toll free number 0800 266 269 from your own telephone and select COMBOX basic.
  • Page 46 Useful Information Note: in the following tables represents a single space. Alphabet character table (ABC) Numeric entry table (0-9) Greek character table ( Extended 1 character table ( R The following are used for both uppercase and lowercase: ATON_CL120_CLT120(en-de)_0722_ve46 2014/07/22 15:07:48...

  • Page 47: Faults And Self-Help With Troubleshooting

    Useful Information Extended 2 character table ( R The following are used for both uppercase and lowercase: Cyrillic character table ( Faults and self-help with troubleshooting Not every problem signifies a fault in your telephone. In some cases, problems can be resolved by briefly interrupting the power supply to the base station (unplug the power supply unit and then plug it in again) or removing the battery cells from the handset and reinserting them.

  • Page 48: Troubleshooting

    Useful Information Display message Cause/solution Speicher voll R The phonebook memory is full. Erase unwanted entries (page 20). R Message memory is full. Erase unwanted messages (page 39, 40). R The call block list memory is full. Erase unwanted entries (page 31).

  • Page 49: Battery Recharge

    Useful Information Problem Cause/solution I cannot hear a dial tone. R Make sure that you are using the supplied telephone line cord. Your old telephone line cord may have a different wiring configuration. R The base unit’s AC adaptor or telephone line cord is not connected.
  • Page 50 Useful Information Making/answering calls, intercom Problem Cause/solution R The handset is too far from the base unit. Move closer. is displayed. R The base unit’s AC adaptor is not properly connected. Reconnect AC adaptor to the base unit. R The handset is not registered to the base unit. Register it (page 34).

  • Page 51: Liquid Damage

    Useful Information Answering system Problem Cause/solution The unit does not record R The answering system is turned off. Turn it on (page 38). new messages. R The message memory is full. Erase unwanted messages (page 39). R The recording time is set to “Nur Begrüß.”. Change the setting (page 44).

  • Page 52: Index

    Index Handset Deregistration: 35 Index Locator: 12 Name: 33 Additional handsets: 34 Registration: 34 Alarm: 29 Hold: 17 Answering calls: 16 Intercom: 18 Answering system: 38 Key finder: 23, 26 Call screening: 43 Key lock: 18 Erasing messages: 39, 40, 43 Keytones: 27 Greeting message: 38 Greeting only: 44...
  • Page 53 Notes ATON_CL120_CLT120(en-de)_0722_ve53 2014/07/22 15:07:48...
  • Page 54 Notes ATON_CL120_CLT120(en-de)_0722_ve54 2014/07/22 15:07:48...
  • Page 55 Notes ATON_CL120_CLT120(en-de)_0722_ve55 2014/07/22 15:07:48...
