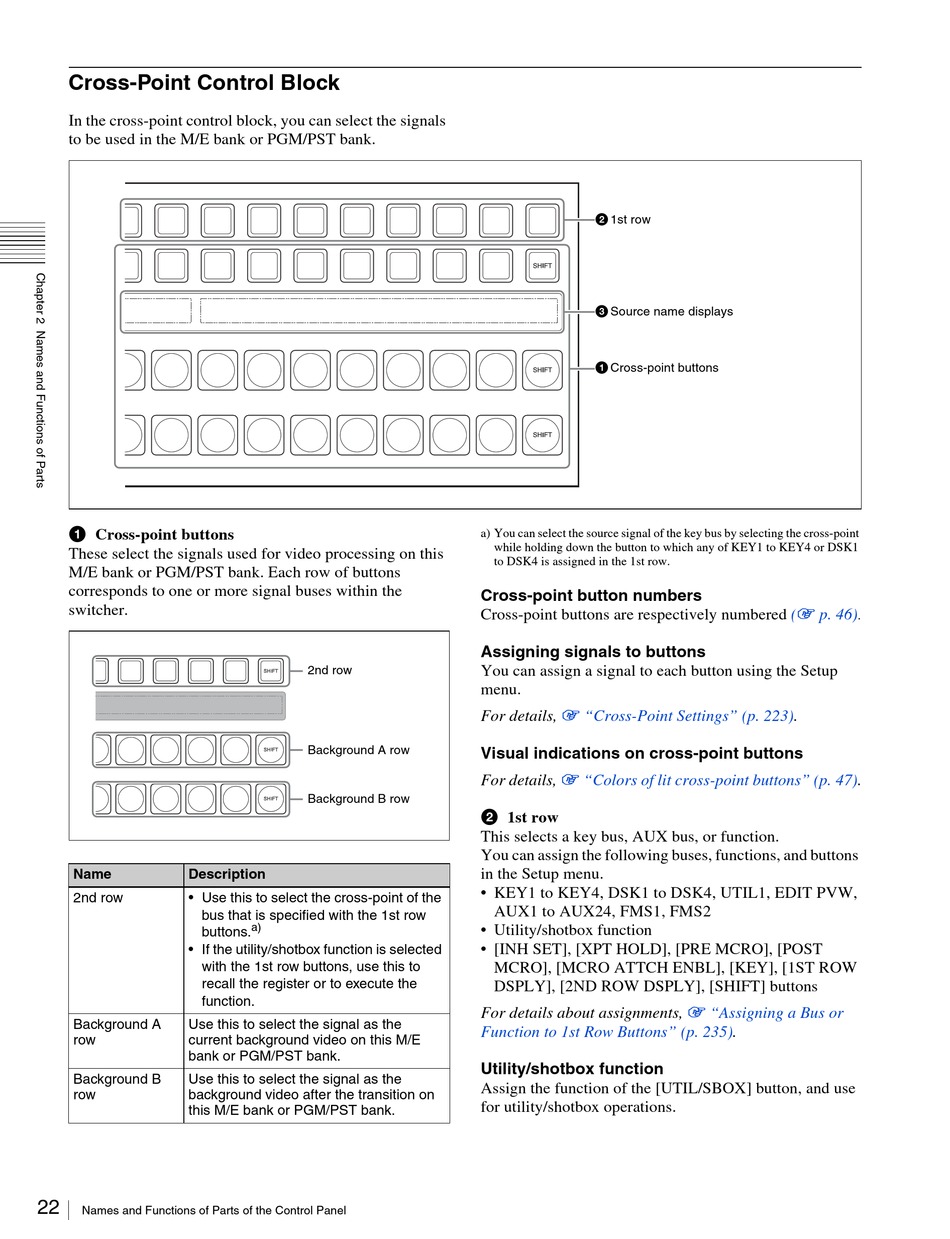

Cross-Point Control Block

In the cross-point control block, you can select the signals
to be used in the M/E bank or PGM/PST bank.
a Cross-point buttons
These select the signals used for video processing on this
M/E bank or PGM/PST bank. Each row of buttons
corresponds to one or more signal buses within the
switcher.
Name Description
2nd row • Use this to select the cross-point of the
bus that is specified with the 1st row
buttons.
• If the utility/shotbox function is selected
with the 1st row buttons, use this to
recall the register or to execute the
function.
Background A Use this to select the signal as the
row current background video on this M/E
bank or PGM/PST bank.
Background B Use this to select the signal as the
row background video after the transition on
this M/E bank or PGM/PST bank.
22
Names and Functions of Parts of the Control Panel
2nd row
Background A row
Background B row
a)
b 1st row
c Source name displays
a Cross-point buttons
a) You can select the source signal of the key bus by selecting the cross-point
while holding down the button to which any of KEY1 to KEY4 or DSK1
to DSK4 is assigned in the 1st row.
Cross-point button numbers
Cross-point buttons are respectively numbered
Assigning signals to buttons
You can assign a signal to each button using the Setup
menu.
1 "Cross-Point Settings" (p.
For details,
Visual indications on cross-point buttons
1 "Colors of lit cross-point buttons" (p.
For details,
b 1st row
This selects a key bus, AUX bus, or function.
You can assign the following buses, functions, and buttons
in the Setup menu.
• KEY1 to KEY4, DSK1 to DSK4, UTIL1, EDIT PVW,
AUX1 to AUX24, FMS1, FMS2
• Utility/shotbox function
• [INH SET], [XPT HOLD], [PRE MCRO], [POST
MCRO], [MCRO ATTCH ENBL], [KEY], [1ST ROW
DSPLY], [2ND ROW DSPLY], [SHIFT] buttons
For details about assignments,
Function to 1st Row Buttons" (p.
Utility/shotbox function
Assign the function of the [UTIL/SBOX] button, and use
for utility/shotbox operations.
(1 p. 46)
.
223).
47).
1 "Assigning a Bus or
235).
