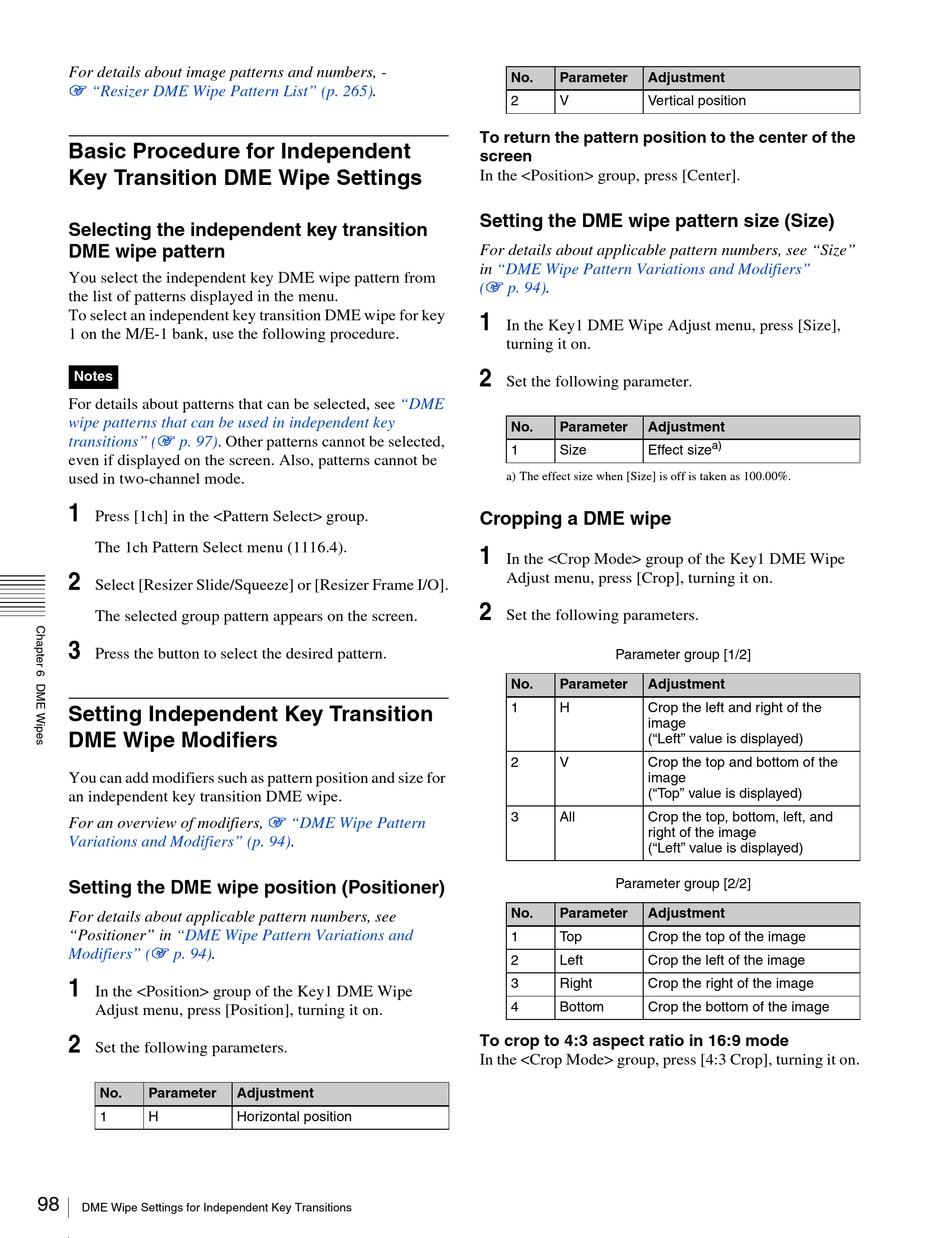

Basic Procedure for Independent
Key Transition DME Wipe Settings
Selecting the independent key transition
DME wipe pattern
You select the independent key DME wipe pattern from
the list of patterns displayed in the menu.
To select an independent key transition DME wipe for key
1 on the M/E-1 bank, use the following procedure.
Notes
For details about patterns that can be selected, see
wipe patterns that can be used in independent key
transitions" (1 p. 97). Other patterns cannot be selected,
even if displayed on the screen. Also, patterns cannot be
used in two-channel mode.
1
Press [1ch] in the <Pattern Select> group.
The 1ch Pattern Select menu (1116.4).
2
Select [Resizer Slide/Squeeze] or [Resizer Frame I/O].
The selected group pattern appears on the screen.
3
Press the button to select the desired pattern.
Setting Independent Key Transition
DME Wipe Modifiers
You can add modifiers such as pattern position and size for
an independent key transition DME wipe.
For an overview of modifiers,
Variations and Modifiers" (p.
Setting the DME wipe position (Positioner)
For details about applicable pattern numbers, see
"Positioner" in "DME Wipe Pattern Variations and
Modifiers" (1 p. 94).
1
In the <Position> group of the Key1 DME Wipe
Adjust menu, press [Position], turning it on.
2
Set the following parameters.
No. Parameter
1 H
98
DME Wipe Settings for Independent Key Transitions
265).
"DME
1 "DME Wipe Pattern
94).
Adjustment
Horizontal position
No. Parameter Adjustment
2 V Vertical position
To return the pattern position to the center of the
screen
In the <Position> group, press [Center].
Setting the DME wipe pattern size (Size)
For details about applicable pattern numbers, see "Size"
in "DME Wipe Pattern Variations and Modifiers"
(1 p. 94).
1
In the Key1 DME Wipe Adjust menu, press [Size],
turning it on.
2
Set the following parameter.
No. Parameter Adjustment
1 Size Effect size
a) The effect size when [Size] is off is taken as 100.00%.
Cropping a DME wipe
1
In the <Crop Mode> group of the Key1 DME Wipe
Adjust menu, press [Crop], turning it on.
2
Set the following parameters.
Parameter group [1/2]
No. Parameter Adjustment
1 H Crop the left and right of the
("Left" value is displayed)
2 V Crop the top and bottom of the
("Top" value is displayed)
3 All Crop the top, bottom, left, and
right of the image
("Left" value is displayed)
Parameter group [2/2]
No. Parameter Adjustment
1 Top Crop the top of the image
2 Left Crop the left of the image
3 Right Crop the right of the image
4 Bottom Crop the bottom of the image
To crop to 4:3 aspect ratio in 16:9 mode
In the <Crop Mode> group, press [4:3 Crop], turning it on.
a)
