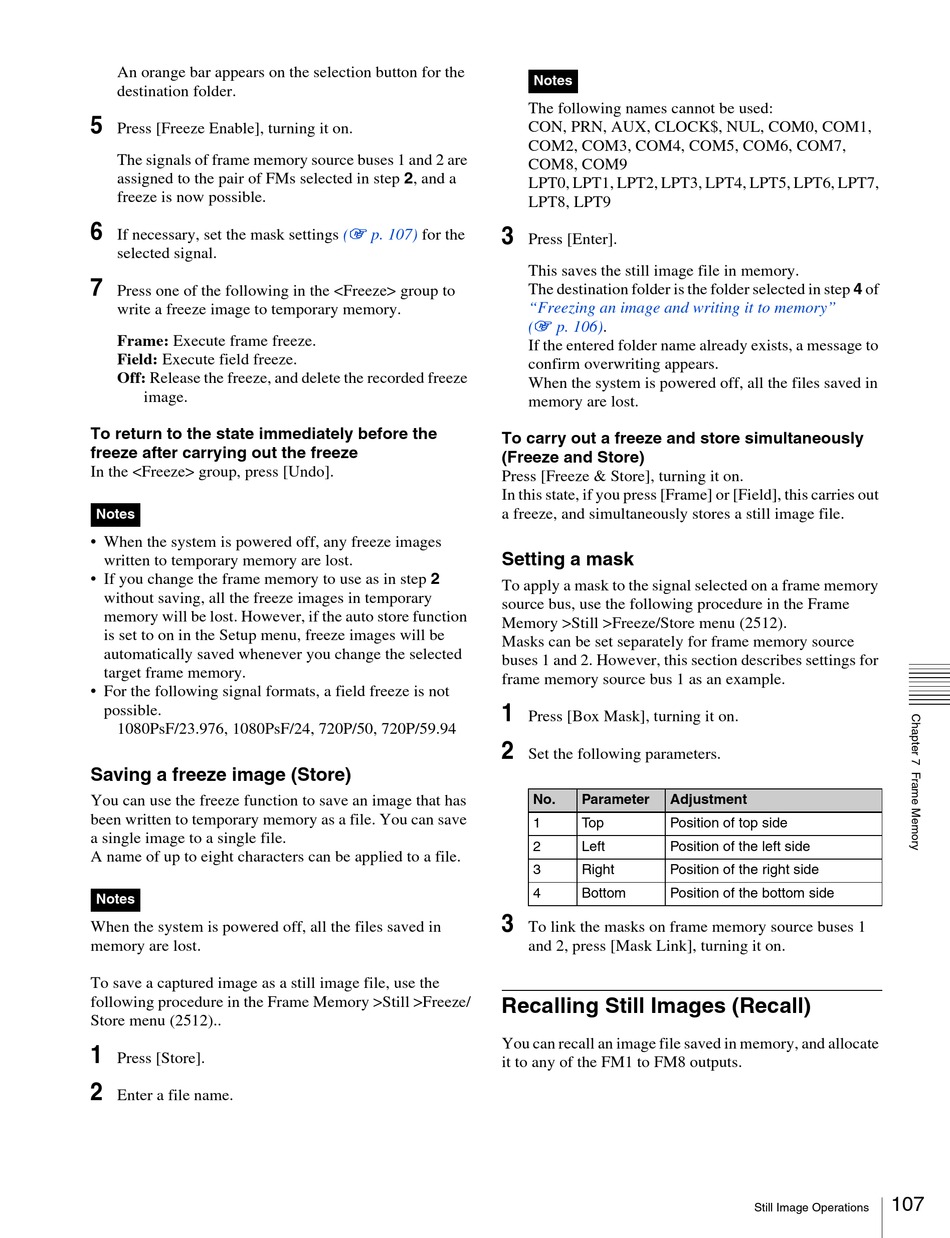

An orange bar appears on the selection button for the
destination folder.
5
Press [Freeze Enable], turning it on.
The signals of frame memory source buses 1 and 2 are
assigned to the pair of FMs selected in step 2, and a
freeze is now possible.
6
If necessary, set the mask settings
selected signal.
7
Press one of the following in the <Freeze> group to
write a freeze image to temporary memory.
Frame: Execute frame freeze.
Field: Execute field freeze.
Off: Release the freeze, and delete the recorded freeze
image.
To return to the state immediately before the
freeze after carrying out the freeze
In the <Freeze> group, press [Undo].
Notes
• When the system is powered off, any freeze images
written to temporary memory are lost.
• If you change the frame memory to use as in step 2
without saving, all the freeze images in temporary
memory will be lost. However, if the auto store function
is set to on in the Setup menu, freeze images will be
automatically saved whenever you change the selected
target frame memory.
• For the following signal formats, a field freeze is not
possible.
1080PsF/23.976, 1080PsF/24, 720P/50, 720P/59.94
Saving a freeze image (Store)
You can use the freeze function to save an image that has
been written to temporary memory as a file. You can save
a single image to a single file.
A name of up to eight characters can be applied to a file.
Notes
When the system is powered off, all the files saved in
memory are lost.
To save a captured image as a still image file, use the
following procedure in the Frame Memory >Still >Freeze/
Store menu (2512)..
1
Press [Store].
2
Enter a file name.
3
(1 p. 107) for the
To carry out a freeze and store simultaneously
(Freeze and Store)
Press [Freeze & Store], turning it on.
In this state, if you press [Frame] or [Field], this carries out
a freeze, and simultaneously stores a still image file.
Setting a mask
To apply a mask to the signal selected on a frame memory
source bus, use the following procedure in the Frame
Memory >Still >Freeze/Store menu (2512).
Masks can be set separately for frame memory source
buses 1 and 2. However, this section describes settings for
frame memory source bus 1 as an example.
1
2
3

Recalling Still Images (Recall)

You can recall an image file saved in memory, and allocate
it to any of the FM1 to FM8 outputs.
Notes
The following names cannot be used:
CON, PRN, AUX, CLOCK$, NUL, COM0, COM1,
COM2, COM3, COM4, COM5, COM6, COM7,
COM8, COM9
LPT0, LPT1, LPT2, LPT3, LPT4, LPT5, LPT6, LPT7,
LPT8, LPT9
Press [Enter].
This saves the still image file in memory.
The destination folder is the folder selected in step 4 of
"Freezing an image and writing it to memory"
(1 p. 106).
If the entered folder name already exists, a message to
confirm overwriting appears.
When the system is powered off, all the files saved in
memory are lost.
Press [Box Mask], turning it on.
Set the following parameters.
No. Parameter Adjustment
1 Top Position of top side
2 Left Position of the left side
3 Right Position of the right side
4 Bottom Position of the bottom side
To link the masks on frame memory source buses 1
and 2, press [Mask Link], turning it on.
107
Still Image Operations
