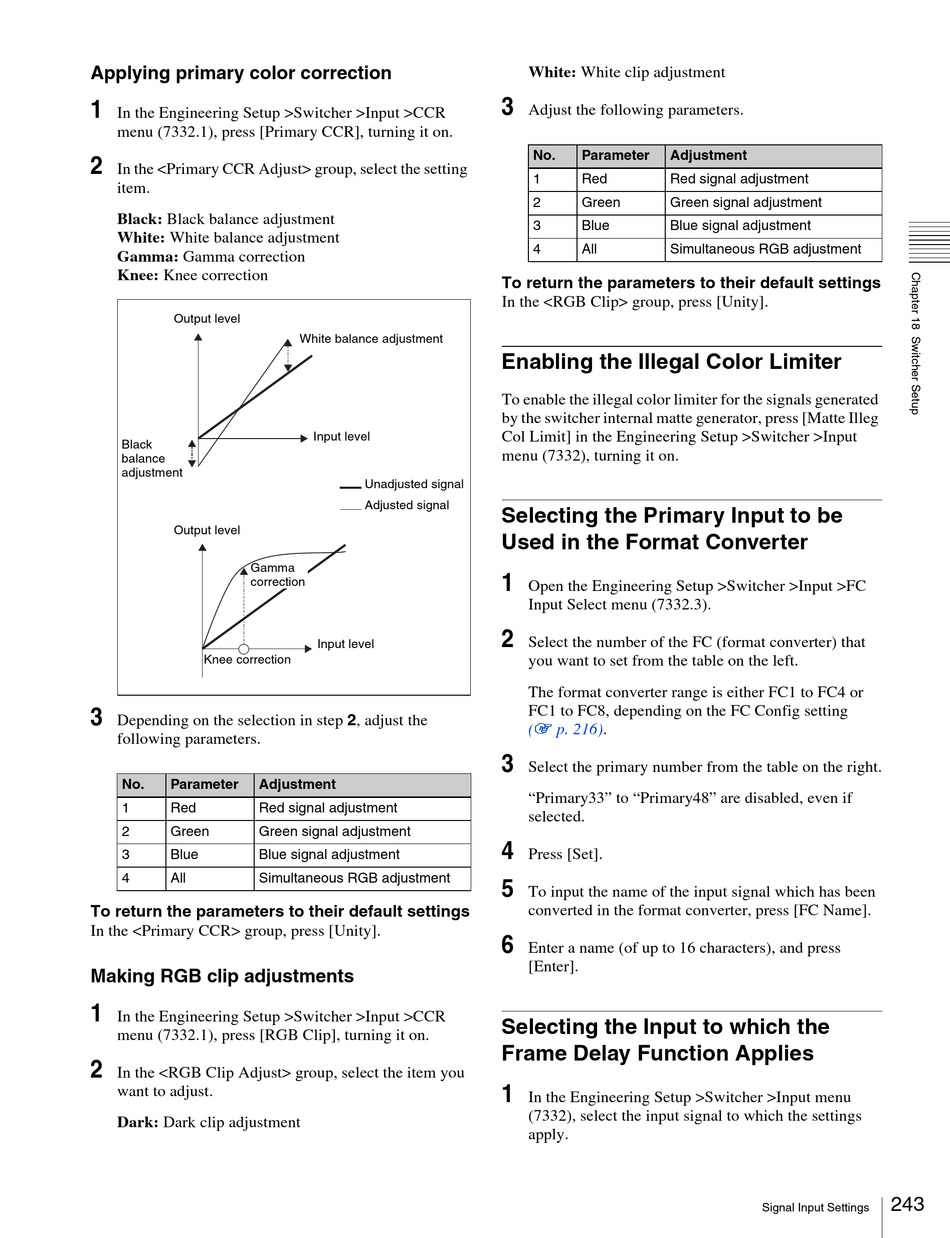

Applying primary color correction
1
In the Engineering Setup >Switcher >Input >CCR
menu (7332.1), press [Primary CCR], turning it on.
2
In the <Primary CCR Adjust> group, select the setting
item.
Black: Black balance adjustment
White: White balance adjustment
Gamma: Gamma correction
Knee: Knee correction
Output level
Black
balance
adjustment
Output level
Gamma
correction
Knee correction
3
Depending on the selection in step 2, adjust the
following parameters.
No. Parameter Adjustment
1 Red Red signal adjustment
2 Green Green signal adjustment
3 Blue Blue signal adjustment
4 All Simultaneous RGB adjustment
To return the parameters to their default settings
In the <Primary CCR> group, press [Unity].
Making RGB clip adjustments
1
In the Engineering Setup >Switcher >Input >CCR
menu (7332.1), press [RGB Clip], turning it on.
2
In the <RGB Clip Adjust> group, select the item you
want to adjust.
Dark: Dark clip adjustment
White balance adjustment
Input level
Unadjusted signal
Adjusted signal
Input level
White: White clip adjustment
3
Adjust the following parameters.
No. Parameter Adjustment
1 Red Red signal adjustment
2 Green Green signal adjustment
3 Blue Blue signal adjustment
4 All Simultaneous RGB adjustment
To return the parameters to their default settings
In the <RGB Clip> group, press [Unity].

Enabling the Illegal Color Limiter

To enable the illegal color limiter for the signals generated
by the switcher internal matte generator, press [Matte Illeg
Col Limit] in the Engineering Setup >Switcher >Input
menu (7332), turning it on.
Selecting the Primary Input to be
Used in the Format Converter
1
Open the Engineering Setup >Switcher >Input >FC
Input Select menu (7332.3).
2
Select the number of the FC (format converter) that
you want to set from the table on the left.
The format converter range is either FC1 to FC4 or
FC1 to FC8, depending on the FC Config setting
(1 p. 216).
3
Select the primary number from the table on the right.
"Primary33" to "Primary48" are disabled, even if
selected.
4
Press [Set].
5
To input the name of the input signal which has been
converted in the format converter, press [FC Name].
6
Enter a name (of up to 16 characters), and press
[Enter].
Selecting the Input to which the
Frame Delay Function Applies
1
In the Engineering Setup >Switcher >Input menu
(7332), select the input signal to which the settings
apply.
243
Signal Input Settings
