You can select the input signals for which the frame
delay function is enabled in advance.
2
Adjust the following parameter.
No. Parameter
2 Frame Delay Delay amount
Selecting the Format Converter
Conversion
You can select the conversion (up-conversion or down-
conversion) when the format converter is applied to an
input.
Notes
Adjustment is not required for cross conversion.
Selecting the format converter inputs to be
set
The same settings are applied to the two groups of FC1 to
FC4 and FC5 to FC8.
1
Open the Engineering Setup >Switcher >Input >FC
Adjust menu (7332.2).

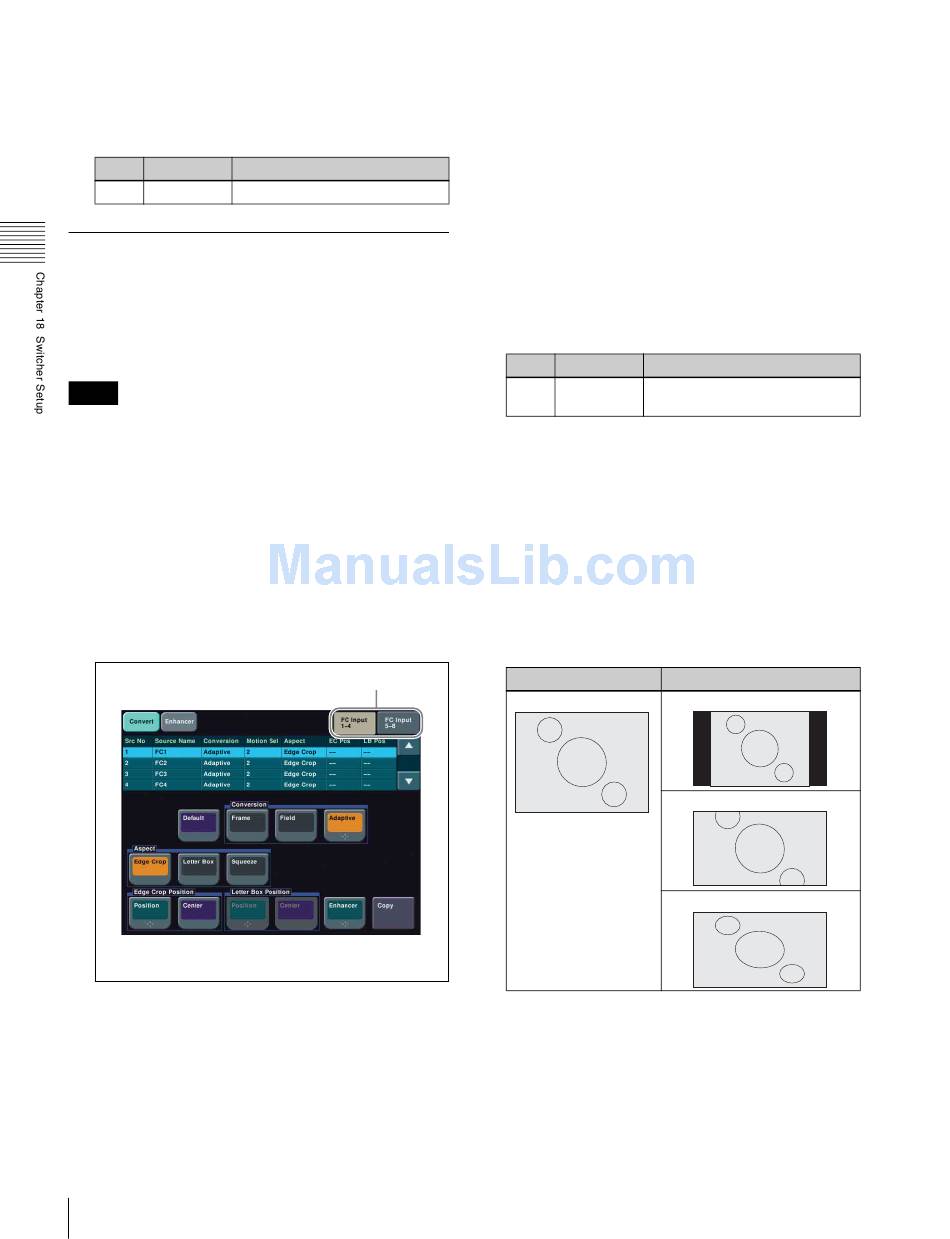

The following figure illustrates the case when FC1 to
FC4 are set to up-conversion.
a) This button does not appear when the frame delay
function is enabled.
2
Press [FC Input 1-4] or [FC Input 5-8] as required.
The list corresponding to the pressed button appears.
3
Select the setting to apply.
244
Signal Input Settings
Adjustment
a)
Display switching button
Making detailed settings for up-conversion
1
In the Engineering Setup >Switcher >Input >FC
Adjust menu (7332.2), select the input to which the
setting applies.
2
In the <Conversion> group, select one of the
following.
Frame: Conversion mode in frame units
Field: Conversion mode in field units
Adaptive: Automatically switches between the above
two modes
When Adaptive is selected, adjust the following
parameter.
No. Parameter Adjustment
2 Motion Motion detection sensitivity
Select
a) 1: Still priority mode, 2: Standard mode, 3: Motion priority mode
3
In the <Aspect> group, select one of the following.
Edge Crop: Adds black bars on the left and right sides
of a 4:3 aspect ratio image to convert it to a 16:9
image.
Letter Box: Crops the top and bottom of a 4:3 aspect
ratio image to convert it to a 16:9 image.
Squeeze: Stretches a 4:3 image horizontally to covert
it to a 16:9 image.
(For details about the image transformations, see the
following figure.)
Original image (4:3)
Setting the image position in edge crop
up-conversion mode
1
In the <Edge Crop Position> group of the Engineering
Setup >Switcher >Input >FC Adjust menu (7332.2),
press [Position], turning it on.
a)
Up-converted image (16:9)
Edge Crop
Letter Box
Squeeze
