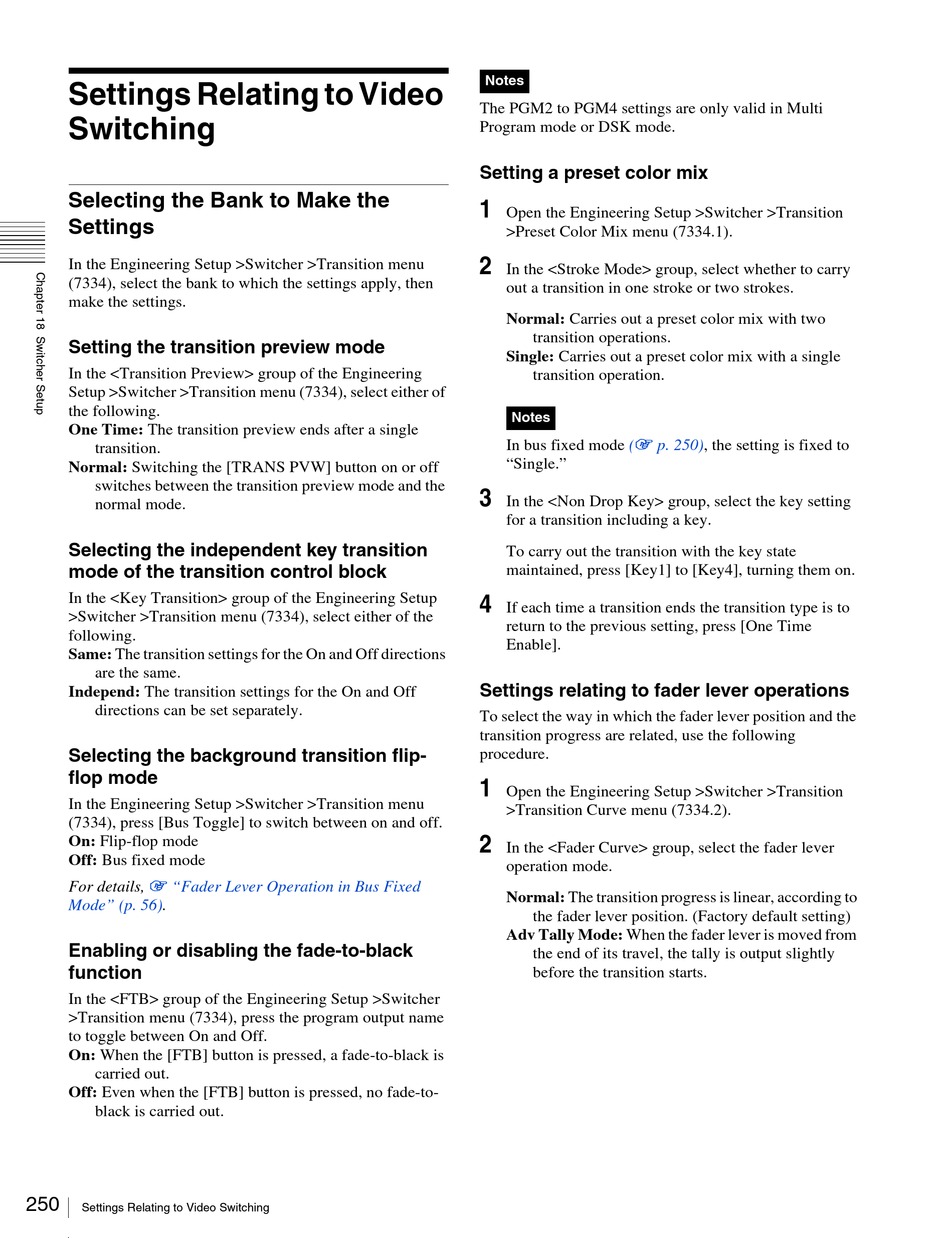

Settings Relating to Video
Switching
Selecting the Bank to Make the
Settings
In the Engineering Setup >Switcher >Transition menu
(7334), select the bank to which the settings apply, then
make the settings.
Setting the transition preview mode
In the <Transition Preview> group of the Engineering
Setup >Switcher >Transition menu (7334), select either of
the following.
One Time: The transition preview ends after a single
transition.
Normal: Switching the [TRANS PVW] button on or off
switches between the transition preview mode and the
normal mode.
Selecting the independent key transition
mode of the transition control block
In the <Key Transition> group of the Engineering Setup
>Switcher >Transition menu (7334), select either of the
following.
Same: The transition settings for the On and Off directions
are the same.
Independ: The transition settings for the On and Off
directions can be set separately.
Selecting the background transition flip-
flop mode
In the Engineering Setup >Switcher >Transition menu
(7334), press [Bus Toggle] to switch between on and off.
On: Flip-flop mode
Off: Bus fixed mode
For details, 1 "Fader Lever Operation in Bus Fixed
Mode" (p. 56).
Enabling or disabling the fade-to-black
function
In the <FTB> group of the Engineering Setup >Switcher
>Transition menu (7334), press the program output name
to toggle between On and Off.
On: When the [FTB] button is pressed, a fade-to-black is
carried out.
Off: Even when the [FTB] button is pressed, no fade-to-
black is carried out.
250

Settings Relating to Video Switching

Notes
The PGM2 to PGM4 settings are only valid in Multi
Program mode or DSK mode.
Setting a preset color mix
1
Open the Engineering Setup >Switcher >Transition
>Preset Color Mix menu (7334.1).
2
In the <Stroke Mode> group, select whether to carry
out a transition in one stroke or two strokes.
Normal: Carries out a preset color mix with two
transition operations.
Single: Carries out a preset color mix with a single
transition operation.
Notes
In bus fixed mode (1 p.
"Single."
3
In the <Non Drop Key> group, select the key setting
for a transition including a key.
To carry out the transition with the key state
maintained, press [Key1] to [Key4], turning them on.
4
If each time a transition ends the transition type is to
return to the previous setting, press [One Time
Enable].
Settings relating to fader lever operations
To select the way in which the fader lever position and the
transition progress are related, use the following
procedure.
1
Open the Engineering Setup >Switcher >Transition
>Transition Curve menu (7334.2).
2
In the <Fader Curve> group, select the fader lever
operation mode.
Normal: The transition progress is linear, according to
the fader lever position. (Factory default setting)
Adv Tally Mode: When the fader lever is moved from
the end of its travel, the tally is output slightly
before the transition starts.
250), the setting is fixed to
