3
Set the following parameters.
No. Parameter Adjustment
1 H Horizontal defocusing
2 V Vertical defocusing
3 All Horizontal and vertical
defocusing
Notes
If defocus is enabled and in the <Defocus Mode>
group you select Video/Key, then crop is disabled.

Key Snapshots

Key settings other than the key on/off status and the key
priority can all be instantaneously saved in a dedicated
register, for recall when required. A key snapshot
comprises three values: a cross-point button number, key
memory full mode, and independent key transition, and
can be called in any combination.
There are four key snapshot registers for each keyer.

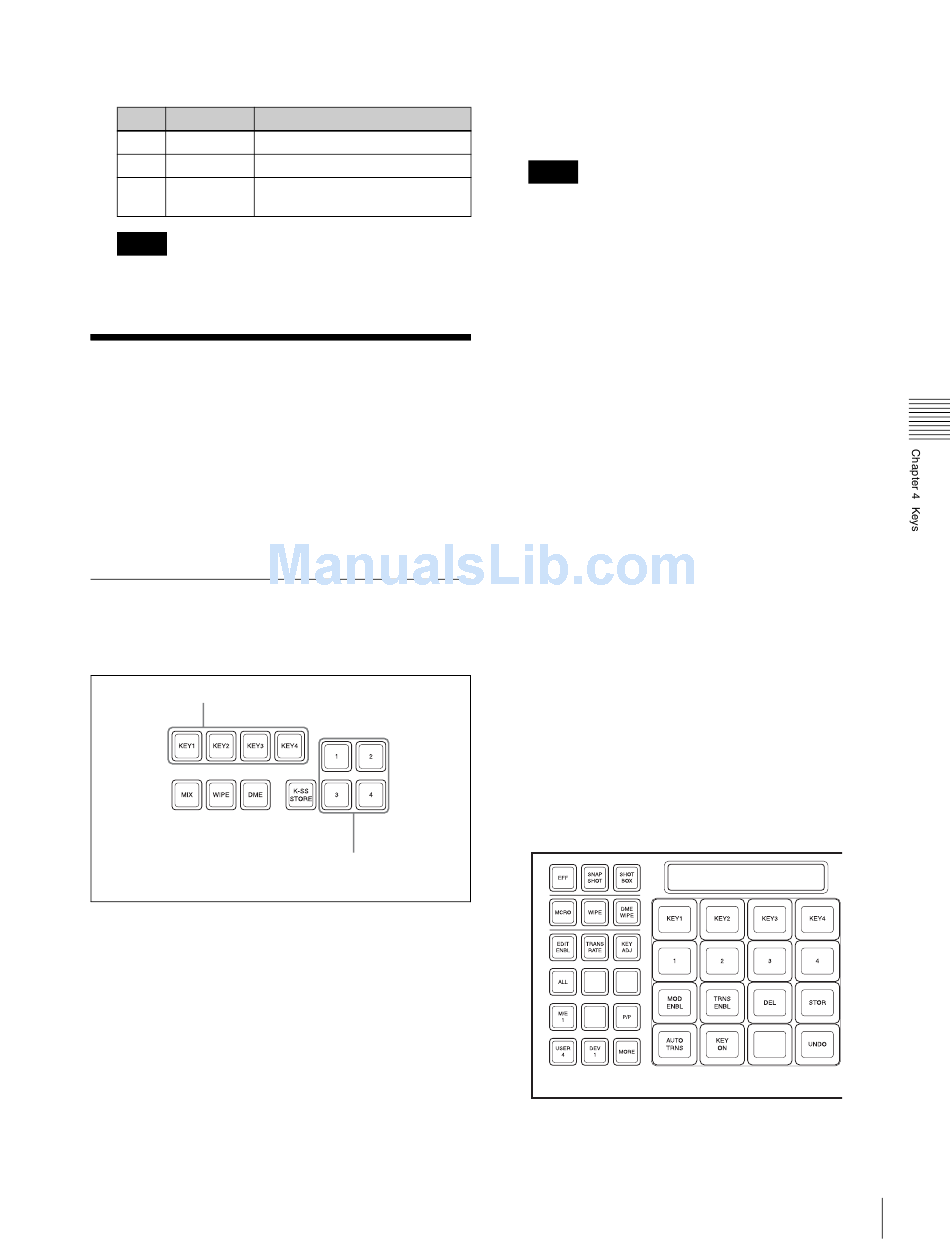

Key Snapshot Operations

Key snapshot operations are carried out in the transition
control block or the Flexi Pad.
Key delegation buttons
Key snapshot buttons
Transition control block
Saving a key snapshot
For example, the following procedure saves the state of the
M/E-1 key 1 settings.
1
Press the [KEY1] key delegation button in the M/E-1,
turning it on.
2
Press one of the key snapshot buttons (1 to 4) while
holding down the [K-SS STORE] (or KEY SS) button.
The color of the key snapshot button indicates the
following.
Off: Nothing is saved in the register.
Lit: Settings are saved in the register.
For a register holding a snapshot, the register name is
shown as up to eight characters.
Notes
If you save a key snapshot to a button to which settings
are already saved, the existing contents of the register
will be overwritten.
The button you pressed lights yellow.
Recalling a key snapshot
For example, the following procedure recalls the state of
the M/E-1 key 1 settings.
1
Press the [KEY1] key delegation button in the M/E-1,
turning it on.
2
Press the key snapshot button (1 to 4) of the register
you want to recall.
Key snapshot operations in the Flexi Pad
By default, the [KEY SS] key snapshot mode selection
button does not appear in the Flexi Pad. To carry out key
snapshot saving and recall in this control block, it is first
necessary in the Engineering Setup >Panel >Config
>Multi Function Module >Mode Sel Assign menu
(7321.21) to assign the Key Snapshot mode to a mode
selection button.
To save a key snapshot
For example, to save a key snapshot to register 1 of KEY1
of M/E-1, select the M/E1 region and KEY1, then use the
following procedure.
1
Press the [KEY SS] button.
The button displays in the memory recall section
change as shown in the following illustration.
81
Key Snapshots
