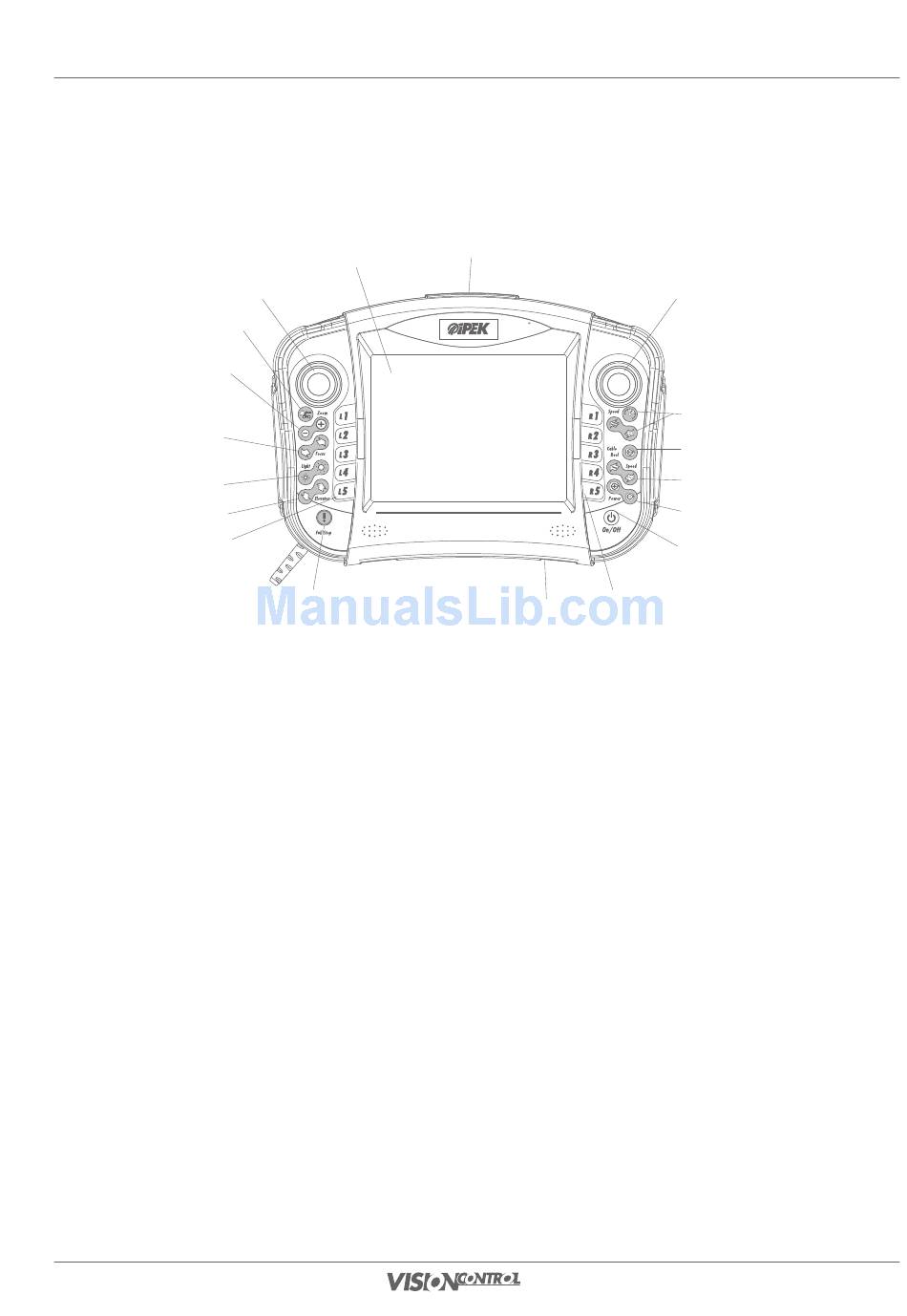

Control panel VISIONCONTROL - Version VC200

Control panel VISIONCONTROL - Version VC200
16
15
14
13
12
1 800x600 Touchscreen
2 Connection panel for 2 x USB 2.0, Ethernet and S-Video
3 Joystick (right) for crawler control
4 Button group for cruise control mode
5 Button for switching over between Automatic and Manual mode of the cable reel
6 Button group for cable reel speed control
7 Button group for cable reel power control
8 ON/OFF button
9 Button group function buttons, right control panel side
10 Holder for shoulder strap
11 Full stop button
12 Button group for function buttons, left control panel side
13 Button group for elevator control
14 Button group for camera light
15 Button group for camera focus
16 Button group for camera zoom
17 Button for switching over between front and rearview camera
18 Joystick (left) for camera control
1
18
17
11
2
9
10
Functional description
3
4
5
6
7
8
19
