Measuring Functions

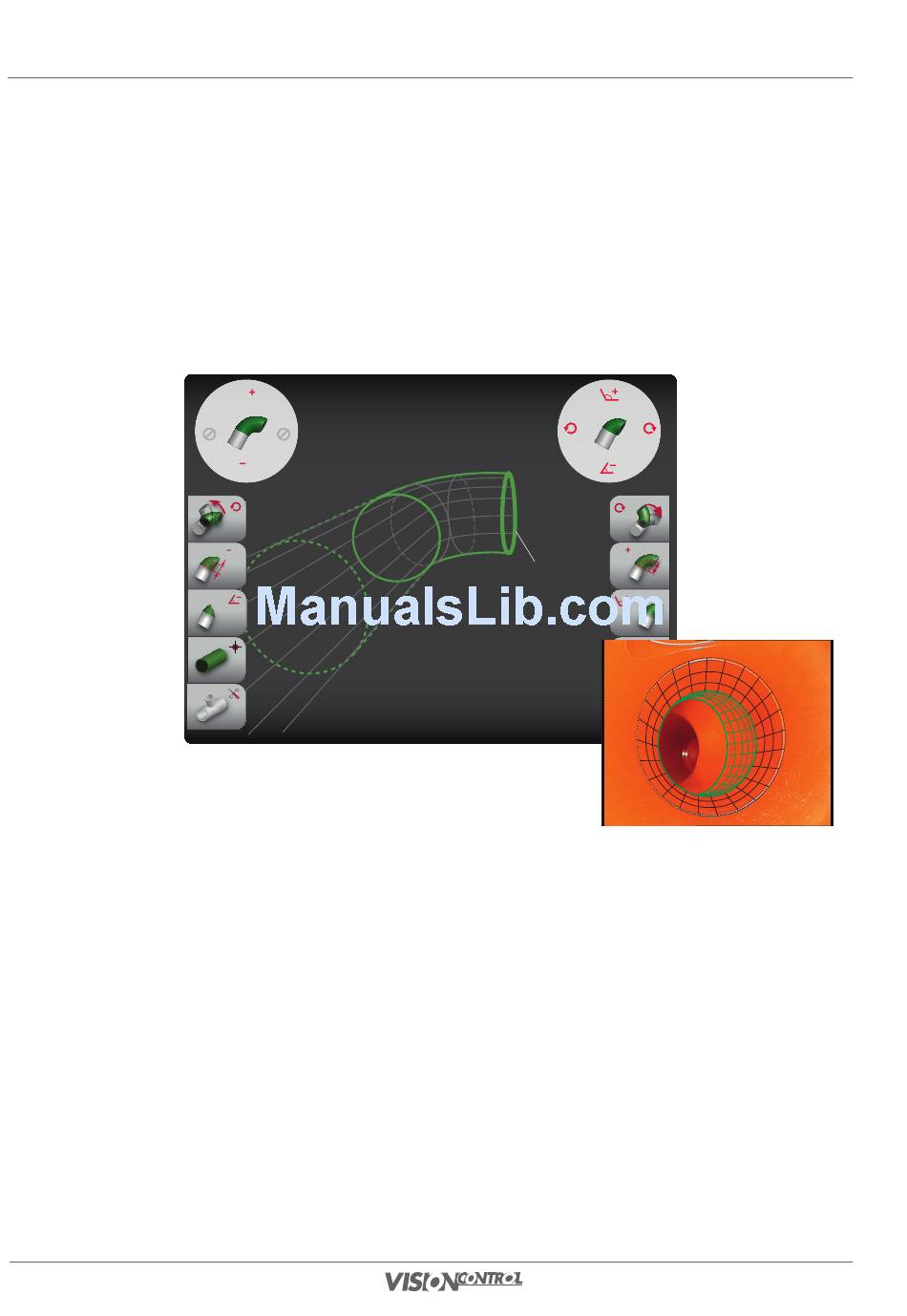

Measure bend
This function allows you to define and measure a bend of the pipe to be inspected. To be able to use this function, you must be able to see a
visible edge/coupling in the bend over the course of pipe via the camera view. All settings influence the visible location and position of measuring
line 1 in this view. It is helpful to show the virtual 3D grid for this measurement. As a further aid, half the pipe diameter is preset as the arc radius
of the bend as standard.
• Define the arc radius of the bend using the left joystick or the L2/R2 buttons.
• Define the bend angle or the rotation using the right joystick or the L1/R1 buttons.
• Define the bend angle of the coupling line/measuring line 1 using the right joystick or the L3/R3 buttons.
Carry out the work steps alternately iterating in order to position the measuring line precisely congruently.
130
R
REAL PIPE:
Diameter:
150.00mm
Length:
105.50mm
Rotation:
2.80°
R
R
R
Measuring line 1
PIPE BEND:
Radius:
51.00mm
Angle:
45.00°
Rotation:
90.00°
PIPE BEND:
Radius:
51.00mm
Angle:
45.00°
Rotation:
90.00°
Measure bend
REAL PIPE:
Diameter:
150.00mm
Length:
105.50mm
Rotation:
2.80°
