Rear Panel Components

1.3.1

Power Module EX 5/7/11 RT

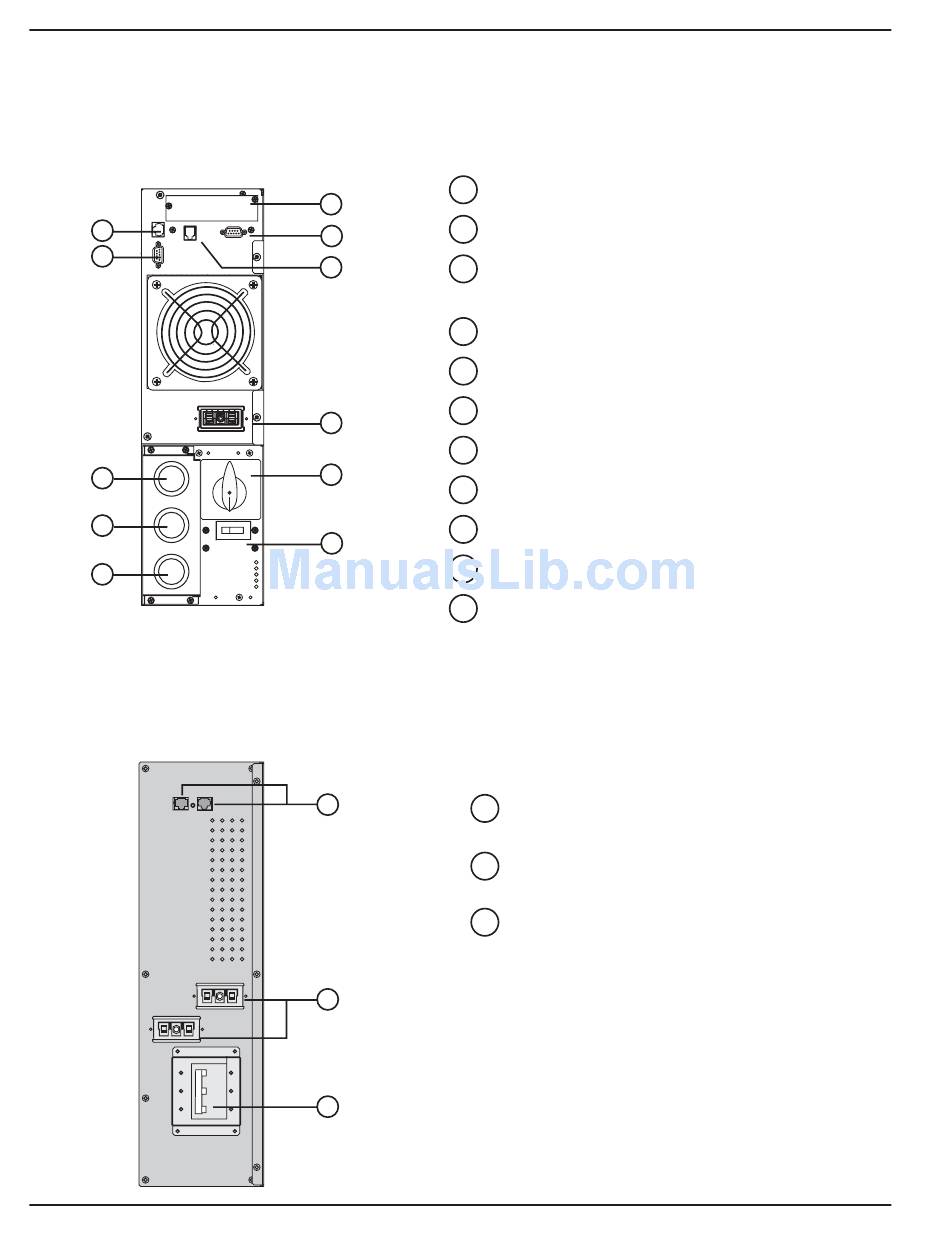

Figure 1-3: Rear panel of the Power Module.
4
5
9
10
11
1.3.2

Battery Module EXB 5/7/11RT With Remote Emergency Power Off (REPO) Function

Figure 1-4: Rear Panel of the Battery Module.
1 — 6
1
Slot for optional communication cards.
1
2
Dry (relay) contacts Communication Port.
2
3
3
Remote Emergency Power Off (REPO) function.
(See section 2.6.)
4
Connector for automatic detection of Battery Module(s).
5
RS232 communication port.
6
Battery/CLA Module power connector.
6
7
Manual Bypass switch.
7
8
Normal AC source circuit breaker.
9
Knockout for entry of AC Output conduit.
8
10
Knockout for entry of Normal AC source conduit.
11
Knockout for entry of Bypass AC source conduit.
12
12
13
14
13
14
Introduction
Connectors for automatic detection of additional battery
module(s) (to the UPS or to other Battery Modules).
Battery power connectors (to the UPS or to other
Battery Modules).
Battery Circuit Breaker with shunt trip.
86-86000-00 B00
