Worth Data TriCoder t53 User Manual page 177

Model
LZ100
LZ200
LT – TriCoders
(integrated laser models)
Symbol 3200 ER
Long Range Scanner
6 mil = high density
10 mil = medium density
40 mil = low density
50 mil = low density with retro-reflective label stock
* absolutely requires special retro-reflective label stock
To scan a bar code using your laser scanner (whether it be a handheld or an
integrated laser) point the laser scanner at the bar code, making sure you are
within the distance range specified above. Pull the trigger (or push the
button on an integrated model) and line up the beam on the bar code. See

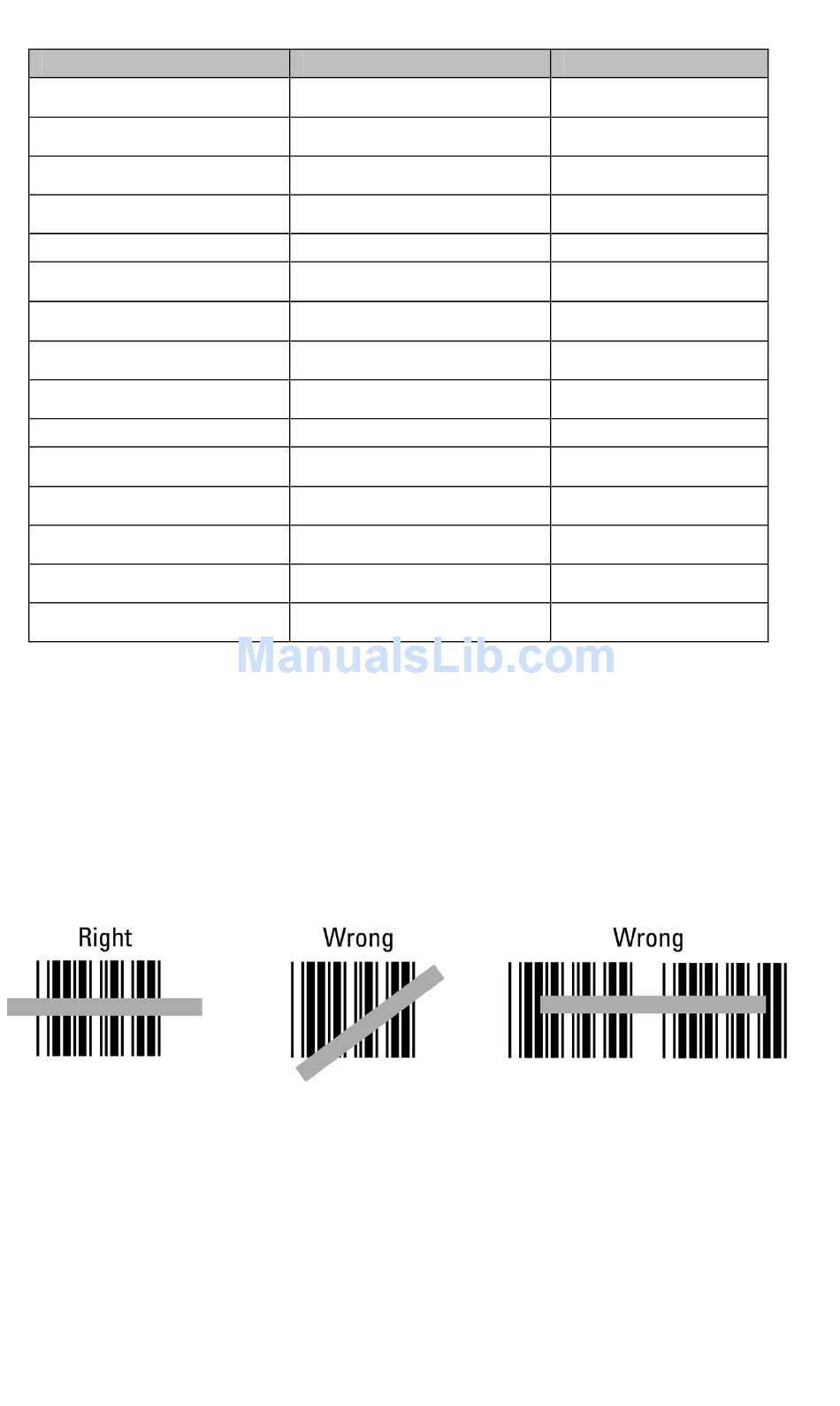

the diagram above for proper beam positioning. Use the Test Label on the
previous page to practice scanning with the laser scanner.
Bar Code Density
Table L-1. Laser Comparison Chart
6 mil
10 mil
40 mil
50 mil
6 mil
10 mil
40 mil
50 mil
6 mil
10 mil
40 mil
50 mil
100 mil
C-2
Range
0" – 4"
0" – 10"
1" – 21"
36" – 48"
2" – 7"
.5" – 15"
3" – 54"
24" – 84"
4" – 10"
3" – 18"
24" – 72"
36" – 20 feet
Up to 35 feet*
