Summary of Contents for Worth Data LZ202-RF

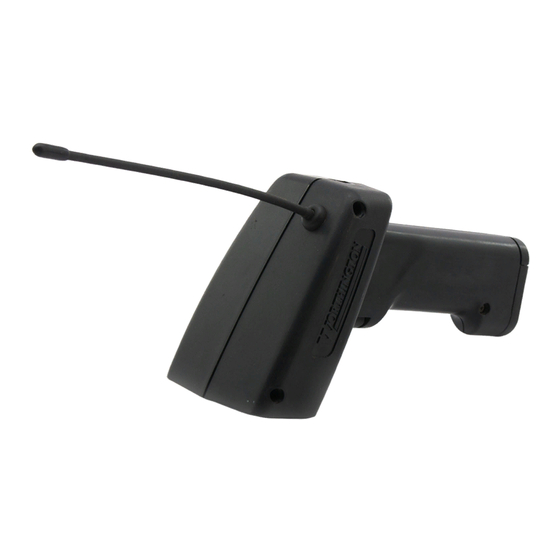

- Page 1 Worth Data Inc. Wireless Reader Manual 01/05...
- Page 2 Shielded cables and I/O cords must be used with this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by Worth Data Inc. may void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to...
-
Page 3: Table Of Contents
Table Of Contents Introduction ..................... 1 Installation......................2 Configuring the Wireless Scanner ..............9 for your computer and application ..............9 Test the Reader with your computer ............24 Radio Considerations ..................26 One-Way Operating Considerations ............26 2-Way Laser Operating Instructions ............27 Accumulate Mode .................. -
Page 5: Introduction
Scanner both have a range of 100 ft. and are 2-way products that provide a confirmation beep in the scanner to indicate the Base Station has received the data. For the US and Canada, the LZ202-RF and the LI102- RF operate on four frequencies at 49MHz. For all of Europe, the LZ212- RF and the LI112-RF operate on three frequencies at 40MHz. -
Page 6: Installation
A Laser/Linear Imager CCD holder. A laminated Wireless Reader Setup Menu sheet. If a serial interface model was ordered, a Worth Data 5v regulated power supply. DON'T USE ANY OTHER POWER SUPPLIES OR YOU WILL BURN UP THE BASE STATION. - Page 7 USB port for keyboard attachment, proceed to page 5. 99% of computer keyboard ports have enough power to support the Base Station without needing the Worth Data external power supply. Therefore, the power supply is an optional extra charge feature.
- Page 8 Your computer, keyboard and reader should now be cabled as shown below: Turn on your computer: You will hear three beeps on the 1-way Base Stations, and the LED on the front will change from red to green, indicating that the Base Station is functioning correctly.
- Page 9 USB Installation on a PC or Mac: The USB port should have enough power to support the Base Station without needing the Worth Data external power supply. Therefore, the power supply is an optional charge feature. If you are connecting your Base Station to a portable computer (laptop or notebook), it is likely you will need to order our power supply.
- Page 10 Your software will need to read the serial port as a separate device, unless you're using an IBM-compatible computer and Worth Data’s PortKey software, which makes serial-port data appear as though it had been typed at the keyboard. See page 28 for a simple BASIC program to read the serial port for testing purposes.
- Page 11 Installing the R/F Reader between a computer and terminal If you attach the Wireless Base between your computer and a terminal, as shown below, using Cable Selection F45-1, bar code data will be sent to the computer as if it had been typed on that terminal. Refer to page 8 for the details of the pin-outs for each connector on the cable.
- Page 12 R/F Reader Serial Model Pinouts F34, DB25 Null Modem Cable These are the pinouts for Cable F34, a DB25 Female, with pins 2 and 3 crossed, used for connection directly to a DB25 male host COM. Mod 8 DB25F Function Frame Ground Transmit Data Receive Data...
-
Page 13: Configuring The Wireless Scanner
Configuring the Wireless Scanner for your computer and application Find the 8 1/2 x 11" laminated Wireless Reader Setup Menu sheet and look it over. This simple menu lets you easily configure the Radio/Freedom Reader to work with almost any computer system, and to tailor its bar code reading and data format characteristics. - Page 14 Laser And Linear Imager CCD Scanning Instructions Using a laser scanner is basically as simple and intuitive as "point and shoot" at a distance of 0-24", depending on the density of the bar code. Our Linear Imager CCD scanners are also "point-and-shoot" and offer “laser-like” scan distances of 0 –...
- Page 15 Don't forget to take the R/F Laser Scanner and the R/F Linear Imager CCD out of Setup Mode by scanning End Setup, otherwise the batteries will run down totally because the radio transmitter remains on. Using The Wireless Setup Menu To configure your reader using the Reader Setup Menu, you must first scan the Start Setup code at the top left corner.
-
Page 16: Beep Tone
The next several pages will show you all of the various Wireless Reader options. Default settings are shown in bold in this manual and marked with an * on the Reader Setup Menu. Beep Tone Lowest Medium High Highest None Code 3 of 9 (Code 39) Enable Code 39 Disable Code 39... -
Page 17: Code 128
Code 128 Disable Code 128 Enable Code 128 Disable UCC/EAN-128 Enable UCC/EAN-128 Enable Storage Tek Tape Label Code Disable Storage Tek Tape Label Code Bar Code IDs transmitted Bar Code IDs not transmitted To enable a Bar Code ID character to be transmitted at the beginning of each bar code read, scan E. - Page 18 left to right reading of UPC codes, assuring that the supplement code is not missed. This setting also allows for reading of the UCC/EAN 128 Extended Coupon Code. The Extended Coupon Code consists of a UPC code with a NSC of 5 or and EAN code with a country code of 99 along with a C0de 128 supplemental code to the right.
- Page 19 Codabar Enable Codabar Disable Codabar Enable CLSI Codabar Disable CLSI Codaber Enable Start/Stop Character Transmission Disable Start/Stop Character Transmission For information about Codabar, see Appendix E. CLSI format is a form of Codabar often used by libraries. Enabling Start/Stop character transmission means that the R/F Reader will transmit start/stop characters to your computer along with data.
- Page 20 Code 93 Enable Code 93 Disable Code 93 Enable Full ASCII Code 93 Disable Full ASCII Code 93 For more information on Code 93 see Appendix D. Data Transmission Timing None Short Short Medium Medium Long This setting does not apply to the Mac or to any USB attachment. Try the Learned Timing before trying these timing settings.
- Page 21 Computer Interface PC Keyboards and USB Attachment PC Keyboard Learned Timing Macintosh ADB Keyboards Scan the number on the Barpad Table corresponding to the type of system you are using. All PC compatibles and computers using a USB (Wedge Saver) attachment use setting 1.
- Page 22 with no trimming.) Consider the examples in the following table to understand how trimming works: Bar Code Data Preamble Data Transmitted XYZ123 12345678 ~3XYZ XYZ45678 12345678 12345678 12345 12345 123456 You can also trim selectively by bar code type. For example, you can trim 2 characters from Code 39 and a different amount from other bar code outputs.
-
Page 23: Keyboard Country
and min/max bar code data is also supported through Postamble specifications, (See Preamble above for complete details). Characters This setup option allows you to output ASCII characters different from the ones scanned. (Don't use this option to configure the Radio/Freedom Reader for your non-US keyboard -- instead, use the Keyboard Country option described below.) For example: Suppose you want the Radio/Freedom Reader to output a hex... - Page 24 between a scanner and a base station make it possible for a group of associated scanners/base to ignore other groups of units with different IDs on the same frequency. This is not recommended, but where separation is the rule and overlap is the occasional exception, this grouping ID becomes practical.
- Page 25 4-second beam: Another option with problem reading conditions is to increase the length of the time the scanner attempts to read, from the default 2-second beam to a 4-second beam. To select the 4-second beam: Scan Start Setup Scan 2 of 5 Scan F to select the 4-second beam Scan End Setup To return to the default 2-second beam, scan E instead of F.
-
Page 26: Baud Rate
"Double-scan checking": When reading a VIN, you will also want to disable double scan checking. The reader’s default is to not output or beep until it has two successive identical decodes. This is an acceptable safeguard with most codes, but with VIN numbers read through a windshield, you will have to deactivate double scan checking to get timely reads. -
Page 27: Stop Bits
Stop bits 1 Bit 2 Bits Set the stop bits to the same setting your terminal is using, or you want to use with your serial port. Transmission mode Full Duplex Half Duplex This applies to use of the "F45-1 Serial Y Cable" only. "Full Duplex" means that the R/F Reader will transmit data only through the HOST connector. -
Page 28: Test The Reader With Your Computer
Please refer to Host Response Delay to determine if you need to compensate for slow host program response by slowing down the retry time when failing to get a response from the base station. Host Response Delay (This parameter only applies to serial 2-way Base Stations - B58/B59 with Host controlled acknowledge enabled.) If you have a serial 2-way Base Station with Host controlled acknowledge enabled under Protocol, and your host computer program is slower in... - Page 29 distributed on the diskette enclosed with your serial reader. The program is for Windows only. If you are using the WDR Serial Test Program, follow these guidelines: • Make sure the serial parameters on your Base Station match those used by your computer. •...
-
Page 30: Radio Considerations
Radio Considerations Be sure you have a frequency matched Base Station and R/F Scanner. The color of the label on the underside of the R/F Base Station should match the color on the scanner antenna or ID label, ((black/black, yellow/yellow, purple/purple, red/red, etc). -
Page 31: 2-Way Laser Operating Instructions
2-Way Laser Operating Instructions Operational Details The two-way LZ202-RF Laser Scanner and LI102-RF Linear Imager CCD: chirps on a "good read" or successful scan while turning off the scanner beam, and beeps loudly when it gets the acknowledgement back from the Base Station that it has received the data. - Page 32 Multiple 2-Way Base Stations on the Same Frequency. Although not recommended, you can have more than one two-way base station on the same frequency operating in a common area, but you must set each grouping of assigned scanner(s) with the ID of the Base Station. All other Base Stations with a common frequency must be turned off during the setup of another base and/or associated laser scanners.
-
Page 33: Accumulate Mode
Accumulate Mode Accumulate Mode is an option (which can be enabled or disabled using the Reader Setup Menu's Code 39 section) allowing the reader to accumulate multiple bar codes in its buffer, then transmit them to the computer as if they had been a single bar code. -
Page 34: Function/Control Key Support
Function/Control Key Support The RF Scanner can also transmit key sequences for function, control, alt (command and option keys on Macs), cursor and shift keys, for ease of use with the many software packages using these keys for menus or commands. You can include these codes in other bar codes, or you can scan these “keystrokes”... - Page 35 Function keys F1 through F10, and numeric-pad keys (such as Left Arrow and Del), are encoded by a single control character as shown in the table above. Simply scan the correct bar code from the FULL ASCII MENU. For example, if the WDP reads the bar code SOH (ASCII 001 -- a control-A) from the FULL ASCII MENU, it will transmit an F1 key.
- Page 36 NULL, C (Command ON) and NULL, D (Command OFF) For the Option Key ON/OFF use RS (Option On) and US (Option Off). If you have an older Worth Data Reader (before 6/99), you can also imitate the Command Key by key codes in the Preamble/Postamble. To transmit...
-
Page 37: Troubleshooting
Troubleshooting All Models Troubleshooting The beam won’t stay on, or I just get a narrow beam when I pull the trigger, or The scanner won’t turn on when I pull the trigger and I get 3 beeps • All of the above problems are an indication that your BATTERIES ARE TOO LOW. - Page 38 On One-Way units, the batteries will run down real fast too. This means that you are still in Setup Mode. Scan End Setup to turn the light out. The Orange light stays on the LZ202-RF 2-way RF Laser Scanner and LI102-RF Linear Imager Scanner.
- Page 39 Serial Troubleshooting The reader beeps on reads, but nothing appears on your screen using PortKey OR nothing appears to your own software. • Recheck the installation instructions beginning on page 2 to make sure all cables are properly connected. • If you're trying to read Code 39 bar codes with leading spaces (such as the Barpad on page 28) and have enabled Accumulate Mode, those bar codes will not be transmitted to your computer until you read a bar...
- Page 40 My system locks up or I get Windows General Protection Faults when using my serial RF Reader on a PC running Windows. • This is an interference problem and occurs if you are using a serial extension cable over 80 feet long in combination with our F36 9-pin serial cable or F34 25-pin serial cable shipped before 9/15/01, or you have built your own cable (over 80 ft) and are not using our F36 or F34 cable.
-
Page 41: Opening The Base Case
Appendix A Opening the Base Case Use the illustrations below as a guide while removing the Base's circuit board from its case. Turn your Base unit upside-down and unscrew its single Phillips screw. If you don't completely remove the screw you can use it as a lever to pull up on the cover, otherwise insert a fingernail, credit card edge or small screwdriver blade into the gap between the base and side of the case. -
Page 42: Jumper Settings
Appendix B Jumper Settings Your RF Base is shipped with P2 set as either keyboard or serial, depending on what you ordered. Why might you need/want to check or change jumper settings? • If you change from serial to keyboard wedge interface, you will need to change the P2 block from Serial to Keyboard (Kybd). -
Page 43: Specifications For Code 39
Appendix C Specifications for Code 39 Code 39 (or Code 3 of 9) is the de facto standard of non-retail American industry. It is widely used in the automotive industry (AIAG specifications) as well as in government and military applications (LOGMARS specifications). Code 39 is flexible, features a large character set, variable data length and density, and bi-directional readability. -
Page 44: Code 39 Advanced Features And Functions
Code 39 Advanced Features and Functions Mod 43 Check Character Standard Code 39 can be printed with a "Mod 43 Check Character". This Mod 43 check character cannot be used with Full ASCII Code 39. The check character is derived by assigning a value to each character in the data to be bar coded from the table as follows: Char value... - Page 45 Full ASCII Extension to Code 39 "Full-ASCII Code 39" expands the Code 39 character set to include all 128 ASCII characters. Symbols 0-9, A-Z and punctuation characters. and - are identical to their Code 39 representations. Lower-case letters, additional punctuation characters and control characters are represented by sequences of two Code 39 characters.
-
Page 46: Code 93 Specifications
Appendix D Code 93 Specifications Code 93 is variable length, continuous, bi-directional, compact code. Code 93 is an alphanumeric bar code, which consists of 43 data characters (0-9,A-Z, $/+%.- and Space), 4 control characters, and a unique start/stop character. The entire set of 128 ASCII characters is represented in Code 93 using combinations of control characters and data characters. -
Page 47: Codabar Specifications
Appendix E Codabar Specifications Codabar is widely used in libraries, blood banks, the cotton industry and transportation industries. Its' character set consists of numbers 0 through 9, and punctuation characters + . - / : and $. Symbols a, b, c, d, t, n, * and e are used as start and stop characters. -
Page 48: Code 128 Specifications
Appendix F Code 128 Specifications Code 128 is a very powerful bar code, combining an extensive character set and variable length with compactness and error checking. The character set contains all 128 ASCII characters with each character made up of three bars and three spaces. - Page 49 The Mod 10 Check digit is calculated the same as the Interleaved 2 of 5 example in Appendix G. It is the data length as well as the MOD 10 check digit that distinguishes the UCC Serial Shipping Container Code from other UCC /EAN 128 bar codes.
-
Page 50: Interleaved 2 Of 5 Code
• Use a check digit. Worth Data’s LabelRIGHT printing program automatically calculates and prints a check digit upon request using the method below: Interleaved 2 of 5 Mod 10 check digit calculation 1. - Page 51 Subtract the result of step 5 from the next highest multiple of 10: 60 - 57 = 3 The checksum becomes the low-order digit: 19873 8. Because the data now has an odd length, a leading zero is added, for the final result of 019873...
-
Page 52: Upc Specifications
Appendix H UPC Specifications UPC symbols are found on almost all grocery products and many other retail items. The UPC code most people are familiar with (UPC-A) is a fixed-length (12 digits) numeric only code, with the first digit controlled by UPC coding assignments and the last digit a checksum. -
Page 53: Isbn Specifications
• The leading Number System Character, (the first number of the 11 digits to be entered) should conform to these UPC assignments: 0,6,7,8 Regular UPC 12 digit codes with numbers assigned by the UPC Council. (Do not use 0 as the leading number for in-store marking). -
Page 54: The Upc/Ean Checksum Character
For reference, these are the methods of calculation: Checksum calculation for UPC-A, EAN-13 and EAN-8 Use Worth Data’s phone number (it's not a real UPC-A code) as sample data: 18314589938 Assign even and odd positions, starting at the right and moving left:... -
Page 55: Upc-E Checksum Calculation
UPC-E Checksum Calculation Use the sample data of 123456 to demonstrate the UPC-E checksum calculation: The 6 digit UPC-E code is converted to a 10-digit code, using an expansion scheme based on the sixth digit: If the code UPC-E Data Insertion Digits Insertion 10 digit code... -
Page 56: Msi/Plessey Specifications
Appendix I MSI/Plessey Specifications Plessey is a variable length numeric only bar code. MSI Bar Code is a variable length, numeric-only code with an automatically appended Modulus 10 check digit. MSI is sometimes called Modified Plessey Code. If the user specifies an additional check digit, the MSI code can be 14 digits long, otherwise it has a maximum length of 13 characters. - Page 57 The MSI Mod 11 check digit is calculated as follows: The example bar code data is: 943457842 Assign a checking factor to each number, starting with the units position of the number (in this example, the 2) up to the highest order position (the 9).
-
Page 58: Changing Batteries
Appendix J Changing Batteries RF Laser and CCD Scanners These Scanners have 4 AA batteries located in the handle. On the bottom of the handle is a battery door that slides to the outside. Shake the batteries out and put new batteries in. Be careful to note the orientation of the batteries before placing them back in. -
Page 59: Firmware Upgrades
Appendix K Firmware Upgrades Occasionally it will be necessary to get firmware fixes for problems discovered with the R/F Reader, especially in the early stages of each advance in development. This is accomplished by replacing the EPROM, a chip located on the board of the R/F Base Station's decoder box. To replace the EPROM, remove the cover to the Base Station box and the metal electromagnetic shield according to instructions in Appendix A. -
Page 61: Index
Index 2 of 5 Code............ 9 Cables about............46 may require modification ......8 data length..........46 testing with Half Duplex ......23 Data Length..........15 types ..........3, 5, 8 default settings ........15 Caps Lock ........12, 34, 35 CCD Scanners - how to use ...... - Page 62 Duplex - configuring........23 check digits ..........15 full............23 default settings ........15 half ............23 Interleaved 2 of 5 Code....... 46 Duplicate data entry - avoiding....26 ISBN Specifications........49 EAN-128 Shipping Serial Container Code . 13 Key sequences emulated......32 Enabling Keyboard error..........
- Page 63 Power adapters to fix reader problems..35 Code 128 ..........13 Preamble ............. 17 Code 39 ..........12 Preambles for ASCII 000 to 255....32 Computer Interface ........ 17 Problem solving .......... 33 Data bits ..........22 Programming beeper on 2-way data transmission timing ......
- Page 64 compressed or expanded......13 default settings ........13 guidelines for use........48 Vehicle ID reading........ 21, 22 NSC's and check digits ......13 VIN reading ..........21 numbering conventions......48 Supplemental codes ......13, 48 UPC-A –adding a country code ..... 13 UPC-A in 13 digit EAN format .....
