Worth Data TriCoder t53 User Manual page 187

Laser Accessories

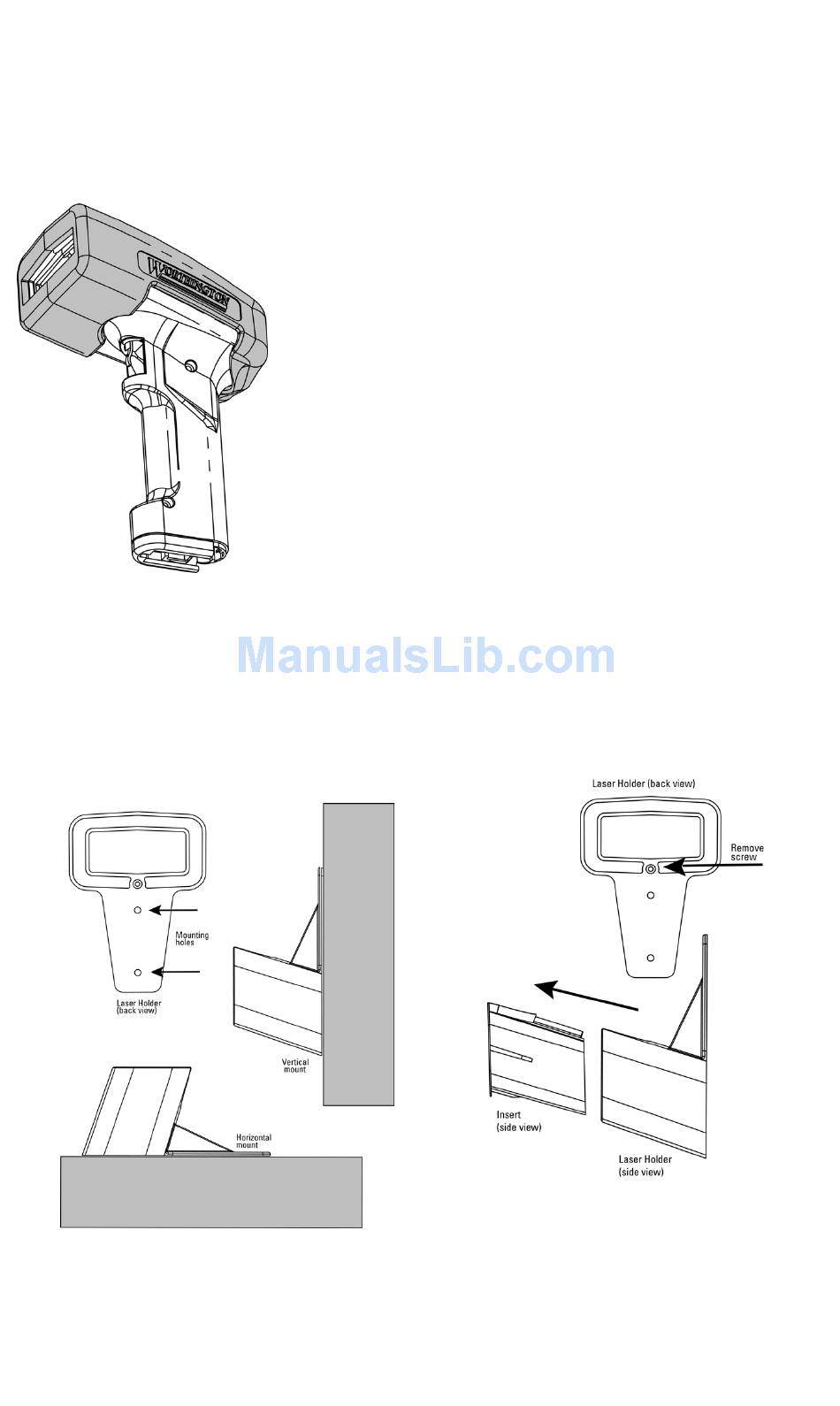

B10 Rubber Laser Boot
The B10 Rubber Laser Boot fits both the LZ100 and LZ200 laser
scanners, and the LI100 Linear Imager (CCD) scanner. The durable rubber
cover was designed to substantially decrease the chance of damaging a laser
or CCD scanner if dropped.
horizontally (table top). Double-sided tape is included to use for mounting,
or you can use wood or metal screws (not provided) to mount the holder. If
you are not using the B10 rubber boot, do not remove the Laser Holder
insert. If you are using the rubber boot, remove the screw located on the
back of the Laser Holder and remove the insert. The holder is now large
enough to accommodate the laser scanner with the rubber boot.
Install the B10 Rubber Laser Boot by placing the
boot on the windowed end of the laser first, then
pulling the boot toward the back of the Laser
scanner. The H11 Laser Holder can accom-
modate the laser with or without the rubber boot.
H11 Laser Holder
The H11 Laser Holder is for the LZ100 and LZ200
laser scanners as well as the LI100 Linear Imager
CCD scanner. The holder comes with a removable
insert to allow the holder to be used with Lasers or
CCDs using the B10 Rubber Laser Boot. The H11
Laser Holder can be mounted vertically (wall) or
E-4
