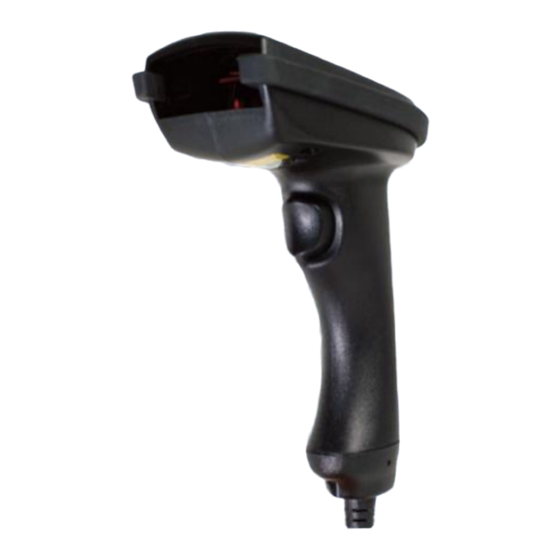

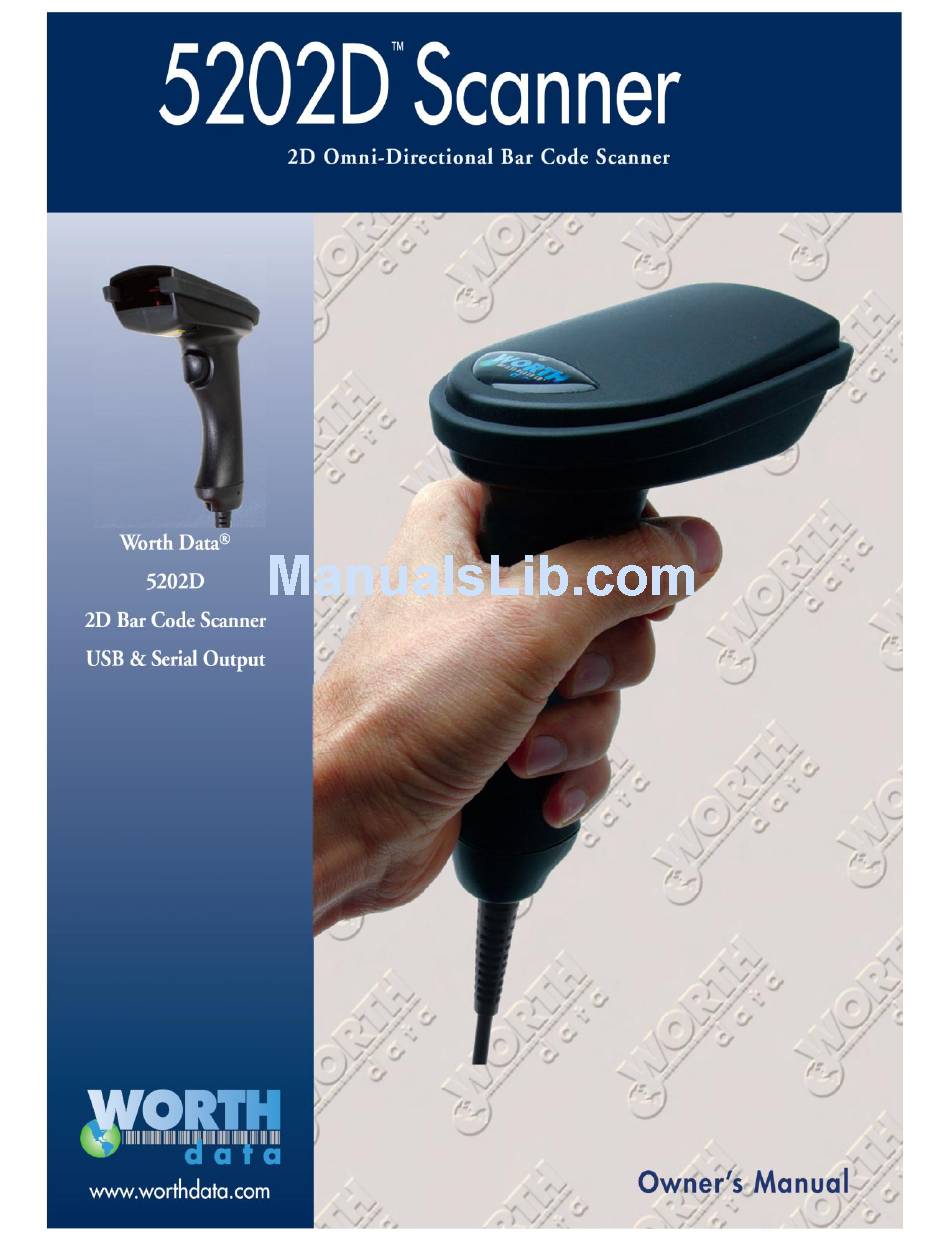

Worth Data 5202D Scanner Owner's Manual

2d omni-directional bar code scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5202D Scanner and is the answer not in the manual?

Questions and answers

Related Manuals for Worth Data 5202D Scanner

Summary of Contents for Worth Data 5202D Scanner

  • Page 2 This manual contains confidential and proprietary information and is copyrighted. All rights reserved. No part of this manual may be photocopied or reproduced in any form without the prior written consent of Worth Data® Inc. PROPOSITION 65 WARNING: This product, its packaging, and/or components may contain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm Worth Data, Inc.

  • Page 3: Table Of Contents

    Table of Contents Introduction Chapter 1 Installation ........................1-1 Components of 520-2D Reader .............................1-1 USB Installation on a PC or Mac ..........................1-1 Serial Installation on a TriCoder or RF Terminal ......................1-1 Chapter 2 Configuration ......................2-1 Configuring the 520-2D Reader.............................2-1 Scanning tips...................................2-1 Appendix A Setup Codes ......................A-1 Set to Factory Default...

  • Page 4: Introduction

    Introduction Worth Data's 520-2D is a versatile bar code reader that can attach to any PC or Mac USB port. It can also be used as an external reader for the Worth Data T7000 series of RF Terminals or T5000 series of TriCoders.

  • Page 5: Chapter 1 Installation

    • Serial Interface (T5000 TriCoder and T701 Terminal) The 520-2D can be used as an external reader with the Worth Data T5000 series of TriCoders and T701 series of RF Terminals. On the TriCoder, the input device will need to be modified to instruct the T5000 to power up the 520-2D reader and input data from the external reader.

  • Page 6: Chapter 2 Configuration

    Chapter 2 Configuration Configuration of the 520-2D Reader The 520-2D is configured using the setup bar codes found in Appendix A. Most commands are of the single entry type and only require a single command to enable or disable a feature or function. To change the configuration of a setting start by scanning the “Start Setup”...

  • Page 7: Appendix A Setup Codes

    Appendix A Setup Codes 1D Codes: Code Type Enabled by Default Additional Setup Info page A-4 page A-5 EAN-13 page A-5 EAN-8 page A-5 Code 39 page A-7 Codabar page A-8 Code 128 page A-10 Code 93 page A-11 Code 11 page A-12 Industrial 2 of 5 page A-13...
  • Page 8 2D codes: Code Type Enabled by Default Additional Setup Info PDF417 page A-24 Micro PDF417 page A-25 Maxi Code page A-26 QR Code page A-27 Micro QR page A-28 Aztec Code page A-29 Aztec Runes page A-30 Data Matrix (ECC 200) page A-31 Data Matrix (ECC 000-140) page A-31...

  • Page 9: Set To Factory Default

    Set to factory default: To set the scanner to factory defaults, scan one of the codes below. Set USB I/F and Reset All Settings to Default Set RS-232 I/F and Reset All Settings to Default Note: The RS-232 I/F setting applies to the 520-2D when used as an external scanner attached to portable devices such as the Terminal and TriCoder.
  • Page 10 Start Setup End Setup ,ZZ, ,ZZ, UPC-A Settings: ,E3, UPC-A, no leading zero, transmit check digit default ,E5, UPC-A UPC-A, no leading zero, not transmit check digit leading zero ,E2, UPC-A, leading zero, transmit check digit check digit transmission ,E4, UPC-A, leading zero, not transmit check digit UPC-E Settings: ,E7,...
  • Page 11 Start Setup End Setup ,ZZ, ,ZZ, EAN Settings: ,6J, not transmit EAN-13 check digit ,6K, EAN-13 and EAN-8 transmit EAN-13 check digit default Check Digit ,6H, not transmit EAN-8 check digit Transmission ,6I, transmit EAN-8 check digit default ,IB, disable ISBN conversion default EAN-13 and EAN-8 ,IA,...
  • Page 12 EAN Supplement Settings: EAN Symbologies Exclusive Enable Disable ,J4, ,R4, ,X4E, EAN no supplement (default enable) ,J5, ,R5, ,X4F, EAN with 2-digit supplement ,J6, ,R6, ,X4G, EAN with 5-digit supplement note: setting any symbology to exclusive will disable all other symbologies EAN-13 Supplement Settings: EAN Symbologies Exclusive...
  • Page 13 Code 39 Start Setup End Setup ,ZZ, ,ZZ, Code 39 Settings: Code 39 Exclusive Enable Disable ,A2, ,B2, ,VB, Code 39 Enable/Disable (default enable) note: setting any symbology to exclusive will disable all other symbologies ,D5, normal code 39 default ,D4, Full ASCII Conversion full ASCII code 39...
  • Page 14 Codabar Start Setup End Setup ,ZZ, ,ZZ, Codabar Settings: Codabar Exclusive Enable Disable ,A3, ,B3, ,VC, Codabar Enable/Disable (default enable) note: setting any symbology to exclusive will disable all other symbologies ,HA, enable only Codabar normal mode default ,H4, enable only ABC code Codabar ABC, CX Conversion ,H5,...
  • Page 15 Codabar Settings Continued: ,HC, minimum data = one character Codabar ,HB, minimum data = three characters Minimum Digit ,HF, minimum data = five characters default ,HE, disable space insertion default Codabar Space Insertion ,HD, enable space insertion ,HI, Codabar disable inter-character gap check Inter-Character ,HH, enable inter-character gap check...

  • Page 16: Code 128

    Code 128 Start Setup End Setup ,ZZ, ,ZZ, Code 128 Settings: Codabar Exclusive Enable Disable ,A6, ,B6, ,VE, Code 128 Enable/Disable (default enable) note: setting any symbology to exclusive will disable all other symbologies ,OF, disable GS1-128 default Code 128 and ,JF, GS1-128 (EAN-128) enable GS1-128 only...
  • Page 17 Code 93 Start Setup End Setup ,ZZ, ,ZZ, Code 93 Settings: Symbology Exclusive Enable Disable ,A5, ,B5, ,VD, Code 93 (default enable) note: setting any symbology to exclusive will disable all other symbologies ,DZ, not transmit CD default Code 93 Check Digit (CD) ,DY, transmit CD...
  • Page 18 Code 11 Start Setup End Setup ,ZZ, ,ZZ, Code 11 Settings: Symbology Exclusive Enable Disable ,BLB, ,BLC, ,BLA, Code 11 (default disable) note: setting any symbology to exclusive will disable all other symbologies ,BLF, not check CD ,BLG, check 1 CD ,BLH, check 2 CD Code 11...
  • Page 19 2 of 5 and S-Code Start Setup End Setup ,ZZ, ,ZZ, 2 of 5 and S-Code Settings: Symbology Exclusive Enable Disable ,J7, ,R7, ,X4K, Industrial 2 of 5 (default enable) ,J8, ,R8, ,X4L, Interleaved 2 of 5 (default enable) ,RA, ,R9, S-Code (default enable) ,AB,...
  • Page 20 MSI / Plessey Start Setup End Setup ,ZZ, ,ZZ, MSI / Plessey Settings: Symbology Exclusive Enable Disable ,A7, ,B7, ,VF, MSI / Plessey (default enable) note: setting any symbology to exclusive will disable all other symbologies ,4A, not check CD ,4B, check 1 CD = mod 10 default...
  • Page 21 UK / Plessey Start Setup End Setup ,ZZ, ,ZZ, UK / Plessey Settings: Symbology Exclusive Enable Disable ,A1, ,B1, ,VA, UK / Plessey (default enable) note: setting any symbology to exclusive will disable all other symbologies ,4O, not transmit CD UK / Plessey Check Digit (CD) ,4N,...
  • Page 22 POSTNET Start Setup End Setup ,ZZ, ,ZZ, POSTNET Settings: Symbology Exclusive Enable Disable ,D6C, ,D6A, ,D6B, POSTNET (default disable) note: setting any symbology to exclusive will disable all other symbologies A-16...
  • Page 23 Intelligent Mail Bar Code Start Setup End Setup ,ZZ, ,ZZ, Intelligent Mail Bar Code Settings: Symbology Exclusive Enable Disable ,D5H, ,D5F, ,D5G, IMBC (default disable) note: setting any symbology to exclusive will disable all other symbologies A-17...

  • Page 24: Gs1 Databar

    GS1 DataBar Start Setup End Setup ,ZZ, ,ZZ, GS1 DataBar Settings: Symbology Exclusive Enable Disable GS1 DataBar Omnidirectional Truncated ,J9, ,JX, ,SJ, Stacked Stacked Omnidirectional (default enable) GS1 DataBar Limited ,JJ, ,JY, ,SK, (default enable) GS1 DataBar Expanded ,JK, ,DR, ,SL, Expanded Stacked (default enable)
  • Page 25 Korean Postal Authority Start Setup End Setup ,ZZ, ,ZZ, Korean Postal Authority Code Settings: Symbology Exclusive Enable Disable Korean Postal Authority ,JL, ,WH, ,WI, (default disable) note: setting any symbology to exclusive will disable all other symbologies ,*-, not transmit CD default Korean Postal Authority Check Digit (CD)
  • Page 26 IATA Start Setup End Setup ,ZZ, ,ZZ, IATA Settings: Symbology Exclusive Enable Disable ,A4, ,B4, ,VH, IATA (default enable) note: setting any symbology to exclusive will disable all other symbologies ,4H, not check CD default ,4I, check FC / SN only IATA Check Digit (CD) ,4J,...
  • Page 27 Tri-Optic Start Setup End Setup ,ZZ, ,ZZ, Tri-Optic Settings: Symbology Exclusive Enable Disable ,JD, ,JZ, Tri-Optic (default enable) note: setting any symbology to exclusive will disable all other symbologies A-21...
  • Page 28 Telepen Start Setup End Setup ,ZZ, ,ZZ, Telepen Settings: Symbology Exclusive Enable Disable ,A9, ,B9, ,VG, Telepen (default enable) note: setting any symbology to exclusive will disable all other symbologies ,D2, numeric mode default Telepen Conversion Output Mode ,D3, ASCII mode A-22...
  • Page 29 JPN (Customer Bar Code) Start Setup End Setup ,ZZ, ,ZZ, JPN Settings: Symbology Exclusive Enable Disable ,D5R, ,D5P, ,D5Q, JPN (default disable) note: setting any symbology to exclusive will disable all other symbologies A-23...
  • Page 30 PDF417 Start Setup End Setup ,ZZ, ,ZZ, PDF417 Settings: Symbology Exclusive Enable Disable ,BC3, ,BCF, ,BCR, PDF417 (default enable) note: setting any symbology to exclusive will disable all other symbologies A-24...

  • Page 31: Micro Pdf417

    Micro PDF417 Start Setup End Setup ,ZZ, ,ZZ, Micro PDF417 Settings: Symbology Exclusive Enable Disable ,BC4, ,BCG, ,BCS, Micro PDF417 (default enable) note: setting any symbology to exclusive will disable all other symbologies A-25...

  • Page 32: Maxi Code

    Maxi Code Start Setup End Setup ,ZZ, ,ZZ, Maxi Code Settings: Symbology Exclusive Enable Disable ,BC2, ,BCE, ,BCQ, Maxi Code (default enable) note: setting any symbology to exclusive will disable all other symbologies A-26...

  • Page 33: Qr Code

    QR Code Start Setup End Setup ,ZZ, ,ZZ, QR Code Settings: Symbology Exclusive Enable Disable ,BC1, ,BCD, ,BCP, QR Code (default enable) note: setting any symbology to exclusive will disable all other symbologies A-27...

  • Page 34: Micro Qr

    Micro QR Start Setup End Setup ,ZZ, ,ZZ, Micro QR Settings: Symbology Exclusive Enable Disable ,D38, ,D2U, ,D2V, Micro QR (default enable) note: setting any symbology to exclusive will disable all other symbologies A-28...

  • Page 35: Aztec Code

    Aztec Code Start Setup End Setup ,ZZ, ,ZZ, Aztec Code Settings: Symbology Exclusive Enable Disable ,BC5, ,BCH, ,BCT, Aztec Code (default enable) note: setting any symbology to exclusive will disable all other symbologies A-29...

  • Page 36: Aztec Runes

    Aztec Runes Start Setup End Setup ,ZZ, ,ZZ, Aztec Runes Settings: Symbology Exclusive Enable Disable ,BF4, ,BF2, ,BF3, Aztec Runes (default disable) note: setting any symbology to exclusive will disable all other symbologies A-30...

  • Page 37: Data Matrix

    Data Matrix Start Setup End Setup ,ZZ, ,ZZ, Data Matrix Settings: Symbology Exclusive Enable Disable Data Matrix (ECC 200) ,BC0, ,BCC, ,BCO, (default enable) Data Matrix (ECC 000-140) ,BG2, ,BG0, ,BG1, (default disable) note: setting any symbology to exclusive will disable all other symbologies A-31...

  • Page 38: Codablock F

    Codablock F Start Setup End Setup ,ZZ, ,ZZ, Codablock F Settings: Symbology Exclusive Enable Disable ,D4R, ,D4P, ,D4Q, Codablock F (default disable) note: setting any symbology to exclusive will disable all other symbologies A-32...

  • Page 39: Chinese Sensible Code

    Chinese Sensible Code Start Setup End Setup ,ZZ, ,ZZ, Chinese Sensible Code Settings: Symbology Exclusive Enable Disable Chinese Sensible Code ,D4K, ,D4L, ,D4M, (default disable) note: setting any symbology to exclusive will disable all other symbologies A-33...

  • Page 40: All Codes

    All Codes Start Setup End Setup ,ZZ, ,ZZ, All Codes Settings: Symbology Exclusive Enable Disable ,BCA, ,BCM, ,BCY, All 1D Codes (default disable) ,BCB, ,BCN, ,BCZ, All 2D Codes (default disable) All 1D and 2D Codes ,A0, ,B0, (default disable) note: setting any symbology to exclusive will disable all other symbologies Use this setting if you're having trouble reading a bar code with the default settings and you don't know what type of code you are trying to read.

  • Page 41: Character Length Settings

    Number of Characters Start Setup End Setup ,ZZ, ,ZZ, Number of Characters Settings: If you are going to read bar codes of a known length, it is recommended to set the scanner for a fixed number of characters. The scanner uses this to verify that labels read are of the correct length and reject labels that do not have the specified length.

  • Page 42: Composite Codes

    Composite Codes Start Setup End Setup ,ZZ, ,ZZ, Composite Codes Settings: ,RQ, not ignore link flag for RSS/EAN-128 and EAN/UPC default Link Flag ,RP, ignore link flag for RSS/EAN-128 and EAN/UPC ,BHF, disable RSS/EAN-128 composite default RSS / EAN-128 Composite ,BHE, enable RSS/EAN-128 composite ,D1W,...

  • Page 43: String Options (Preamble, Postamble

    String Options Start Setup End Setup ,ZZ, ,ZZ, Case Conversion Settings: ,YZ, no case conversion (AbCd -> AbCd) default ,YW, convert to upper case (AbCd -> ABCD) Case Conversion ,YX, convert to lower case (AbCd -> abcd) ,YY, exchange case (AbCd -> aBcD) Output Format Settings: The following additional characters can be included in each code that is scanned: 1) Preamble / Postamble (up to 8 digits)
  • Page 44 Prefix / Suffix Commands: Symbology Prefix Command Suffix Command ,RY, ,RZ, All Codes ,N1, ,N6, UPC-A ,M0, ,O0, UPC-A add-on ,N2, ,N7, UPC-E ,M1, ,O1, UPC-E add-on ,N3, ,N8, EAN-13 ,M2, ,O2, EAN-13 add-on ,N4, ,N9, EAN-8 ,M3, ,O3, EAN-8 add-on ,M4, ,O4, Code 39...
  • Page 45 Prefix / Suffix Commands Continued: Symbology Prefix Command Suffix Command ,D6D, ,D6E, POSTNET ,OE, ,PQ, GS1 DataBar ,RR, ,RS, Composite code ,D4S, ,D4T, Codablock-F ,MD, ,PO, Data Matrix ,BF0, ,BF1, Aztec ,D4N, ,D4O, Chinese Sensible Code ,MK, ,PW, QR Code ,ML, ,PX, Maxicode...
  • Page 46 Prefix / Suffix ASCII Value Table: ASCII Command ASCII Command ASCII Command ASCII Command ,5A, ,0A, ,$A, ,9G, <SP> (NULL) ,5B, ,0B, ,$B, ,1A, (SOH) ,5C, ,0C, ,$C, ,1B, “ (STX) ,5D, ,0D, ,$D, ,1C, (ETX) ,5E, ,0E, ,$E, ,1D, (EOT) ,5F, ,0F,...
  • Page 47 ,9W, ,Q6, ,9F, ,Q7, ,Q8, ,Q9, Code Identification / Length Settings: ,$2, code identification using Worth Data Code ID Code Identification ,$1, code identification using AIM/ISO/IEC 15424 ID ,$3, code length (1D/2D : 2/6 digit) Code Length ,$6, code length (1D/2D : 6/6 digit) Code Identification and Code Length can be included in a prefix and/or suffix.
  • Page 48 Worth Data Code ID Prefix / Suffix Values: Code Code ID Code Code ID UPC-A MSI/Plessey UPC-A +2 Telepen UPC-A +5 UK/Plessey UPC-E Code 128 UPC-E +2 GS1-128 UPC-E +5 Code 93 EAN-13 Code 11 EAN-13 +2 Korean Postal Authority...

  • Page 49: Collective Reading

    Collective Reading Start Setup End Setup ,ZZ, ,ZZ, Collective Reading Settings: It is possible to not output data unless the specified number of codes is read. That means that the scanner does not read codes other than the specified number. Use this setting to read a group of labels all at once.
  • Page 50 Collective Reading Settings Continued: ,D0T, disable same label read during multiple read default Same Label Read ,D0U, enable same label read during multiple read ,D0V, enable sorting decoded labels default Sorting Labels ,D0W, disable sorting decoded labels ,D0X, buffered mode (one image) default ,D0L, Buffered Mode...

  • Page 51: Read Mode

    Read Mode Start Setup End Setup ,ZZ, ,ZZ, Read Mode Settings: ,S0, single read default ,S1, Read Mode multiple read (see below) ,S2, continuous read (used mainly for demonstration) In multiple read mode, when a bar code has been decoded, the decoded data will be output and the scan engine will keep on reading.
  • Page 52 Read Mode Settings Continued: ,+I, enable auto trigger Auto Trigger (Stand Mode) ,+F, disable auto trigger default ,%Q, disable auto trigger synchronization Auto Trigger Synchronization ,%R, enable auto trigger synchronization default note: when the auto trigger is synchronized with the trigger switch, the read time configured for normal reading will be used for auto trigger read time.
  • Page 53 Read Mode Settings Continued: ,Y0, read time 0 second ,Y1, read time 1 second ,Y2, read time 2 seconds default ,Y3, read time 3 seconds ,Y4, read time 4 seconds ,Y5, read time 5 seconds Normal Read Time ,Y6, read time 6 seconds ,Y7, read time 7 seconds ,Y8,...
  • Page 54 Read Mode Settings Continued: ,XA, disable add-on wait more default ,XB, add-on wait mode = 0.25 seconds Add-on Delay Timer ,XC, add-on wait mode = 0.50 seconds ,XD, add-on wait mode = 0.75 seconds Since WPC-type codes (UPC, EAN) with add-on (supplements) have a high probability of unsuccessful decoding, the scanner repeats decoding the add-on code during the specified period of time.

  • Page 55: Imager Settings

    Imager Settings: ,D3A, disable LED illumination ,D39, Illumination Mode enable LED illumination default ,D3B, LED illumination alternating ,D3C, disable laser aiming and LED illumination ,D3D, Aiming On/Off enable laser aiming default ,D3E, disable laser aiming enable central reading ,D00, (read only a code that the laser aims at) Central Reading disable central reading ,D0Z,...

  • Page 56: Indicator Settings

    Indicator Settings Start Setup End Setup ,ZZ, ,ZZ, ,W8, enable good read buzzer default Buzzer ,W0, disable good read buzzer ,W1, single tone buzzer default ,W2, Buzzer Tone high-low buzzer ,W3, low-high buzzer ,W7, buzzer duration = 50ms default ,W4, buzzer duration = 100ms Buzzer Duration ,W5,...

  • Page 57: Usb Keyboard Country

    USB Keyboard Country Start Setup End Setup ,ZZ, ,ZZ, USB Keyboard Country Codes: Country Command ,KE, default ,KV, ,KG, German ,KI, French ,BAO, French Macintosh ,OW, Italian ,KJ, Spanish ,PH, Portuguese ,PL, Swiss (French) ,PK, Swiss (German) ,PI, Dutch ,PJ, Belgian ,PD, Swedish...

  • Page 58: Diagnostics

    Diagnostics Start Setup End Setup ,ZZ, ,ZZ, Diagnostic Codes: ,Z1, Transmit software version ,Z3, Transmit settings ,EAR, Transmit only changes from default ,ZA, Diagnostics Transmit ASCII printable string ,YV, Transmit ASCII control string ,U2, Reset to default (RS-232) ,SU, Reset to default (USB-HID) A-52...

  • Page 59: Appendix B Resolving Usb Installation Issues

    Appendix B Resolving USB Installation Issues The USB HID (Human Interface Device) keyboard driver is standard with Windows®. Most recent versions of Windows include necessary files in the installed Windows system folders so driver installation is easy if not automatic. It is possible for the user to cancel the HID driver installation before it is completed and this results in a problem.
  • Page 60 Windows 7 & Vista: 1. Go to the Start menu. 2. Select Control Panel. 3. Switch to Classic View if you are in Category View 4. Select System. 5. Select Hardware tab. 6. Select Device Manager 7. Double Click on Human Interface Devices 8.
