SBC84820 Pentium M All-In-One Capa Board User's Manual
C h a p t e r 1
Introduction
® ®
™

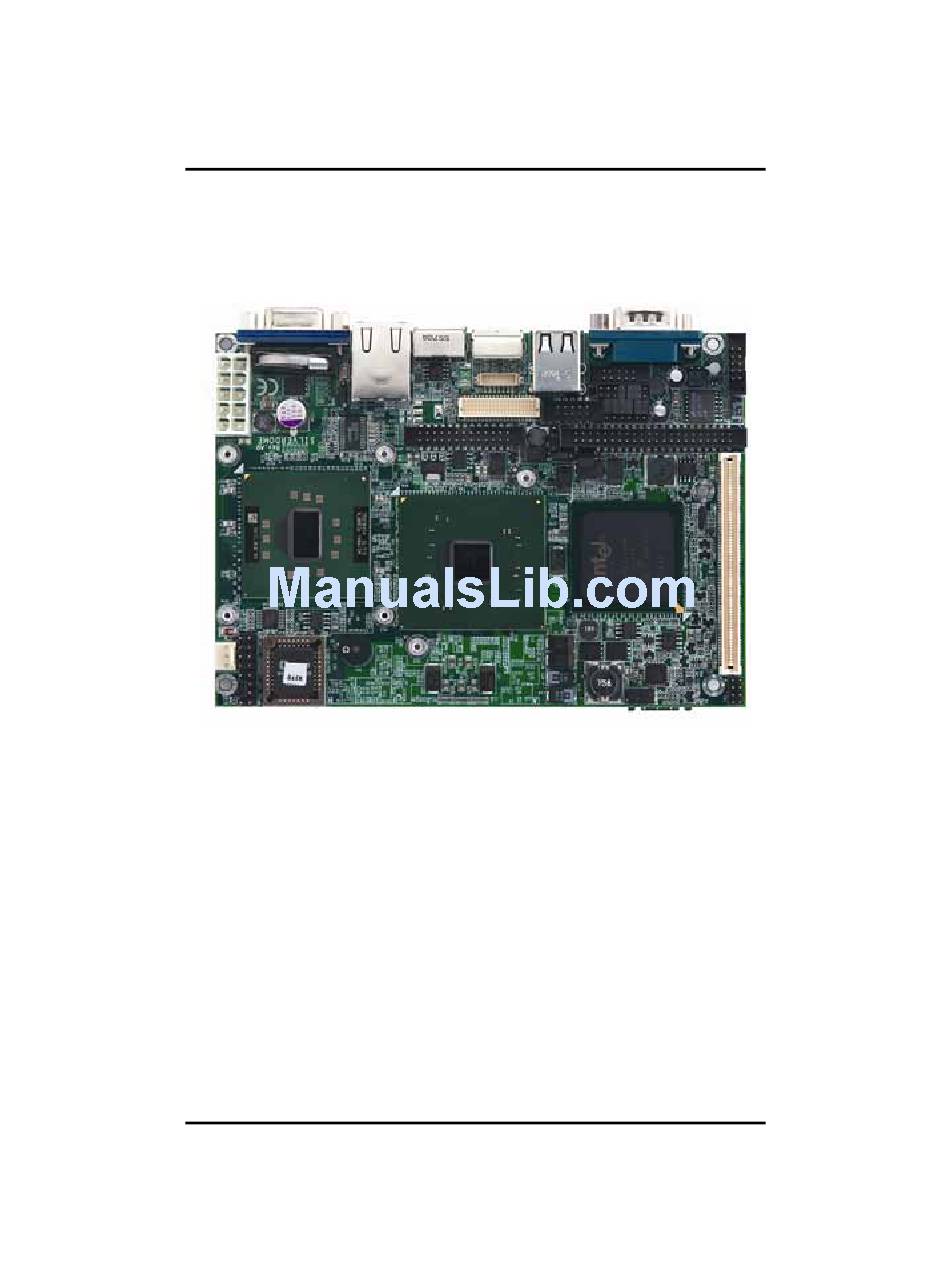

The SBC84820 is an Intel Pentium M/ Celeron M CPU equipped
Capa board with graphics, Fast Ethernet and audio interface.
Designed with the space-limited applications in mind, the SBC84820
®
is practically the finest embedded Pentium M board that exists. Using
a standardized format conforming to the size of a 3.5" HARD DISK
®
drive, SBC84820 Series adapt an Intel low power consumption
®
Pentium M microprocessors. To simplify system integration, it packs
provisions such as super I/Os, XVGA, LCD, Ethernet, solid state disk,
all on a single board. Unique embedded features such as 2 serial
ports (1 x RS-232, 1 x RS-232/422/485, COM3/4 are optional) with
+5V/12V power capability and that allow adoption of an extensive
array of PC peripherals. The industrial-grade construction of
SBC84820 series allows your system to endure the continuous
operation in hostile environments where stability and reliability are
basic requirements. System dependability of SBC84820 series are
enhanced by its built-in watchdog timer, a special industrial feature
not commonly seen on other motherboards.
Introduction
1
