SBC84820 Pentium

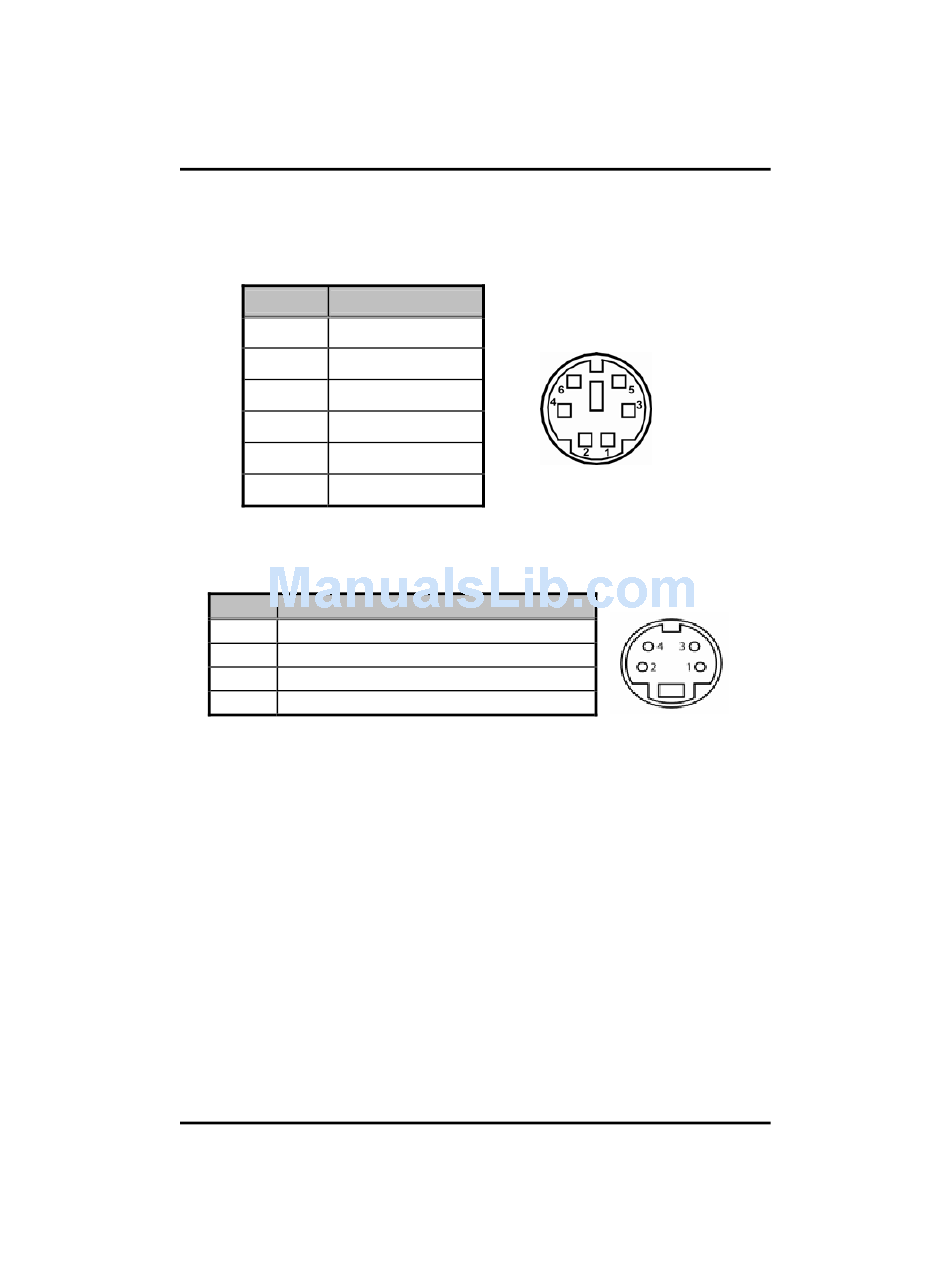

2.4.11 Keyboard & PS/2 Mouse Port Connector (CN13)
The board supports a keyboard and Mouse interface. Connector CN13
is a DIN connector for PS/2 keyboard Connection VIA "Y" Cable.
Pin
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock

2.4.12 TV-OUT Connector (CN14)

Pin
1 GND
2 GND
3 Luminance
4 Chrominance
Jumpers and Connectors
®
M All-In-One Capa Board User's Manual
Signal
Signal
CN13
CN14
27
