SBC84820 Pentium
2.4.5

USB Connectors (CN5, CN12)

The board supports four Universal Serial Bus (USB) connectors
compliant with USB 2.0 (480 Mbps) that can be adapted to any USB
peripherals, such as monitor, keyboard, and mouse. The board has a
box-header connector (CN5), and a double-deck port (CN12) for two
USB connectors.

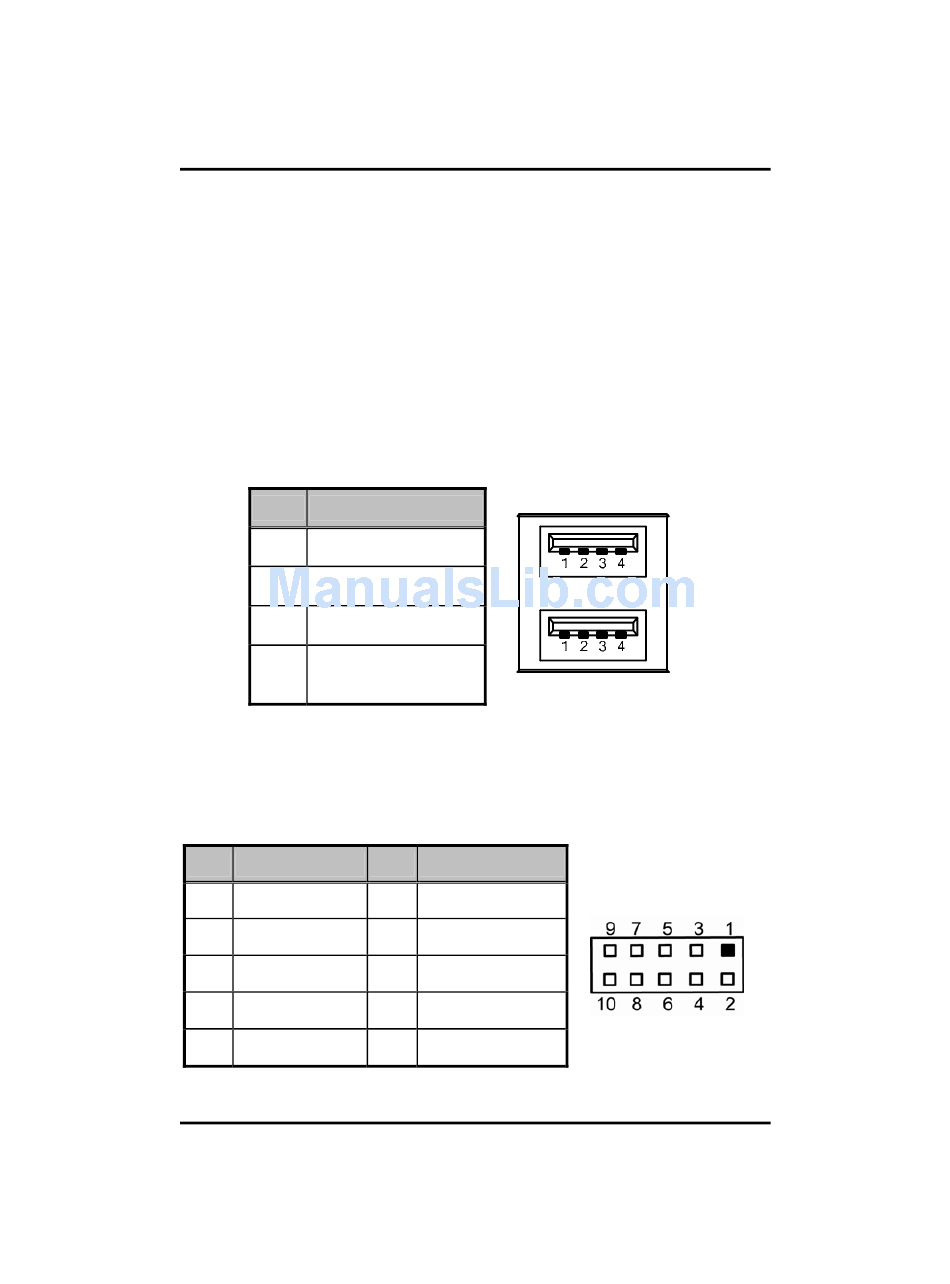

2.4.5.1 USB Port Connector (CN12)
The Universal Serial Bus (USB) port connector on the board is for the
installation of peripherals supporting the USB interface. CN12 consists
of two 4-pin standard USB ports.
USB Port0 and USB Port1 connectors
Pin
1 USB VCC
2
3
4 USB GND
2.4.5.2 USB Connector (CN5)
The Universal Serial Bus (USB) connector on the board is for the
installation of peripherals supporting the USB interface. CN5 is a 10-pin
standard onboard USB connector.
USB Port2 and USB Port3 box-header connector
Pin Signal
1 VCC
3 D2-
5 D2+
7 Ground (GND)
9 Ground (GND)
Jumpers and Connectors
®
M All-In-One Capa Board User's Manual
Signal
USB -
USB +
Pin Signal
2 VCC
4 D3-
6 D3+
8 Ground (GND)
10 Ground (GND)
CN12
CN5
21
