SBC84820 Pentium
M All-In-One Capa Board User's Manual
3.4
I/O Port Address Map
®
®
™
The Intel
Pentium
M and Celeron
M CPUs can make
communication via I/O ports. It has a total of 1 KB port addresses
available for assignment to other devices via I/O expansion cards.

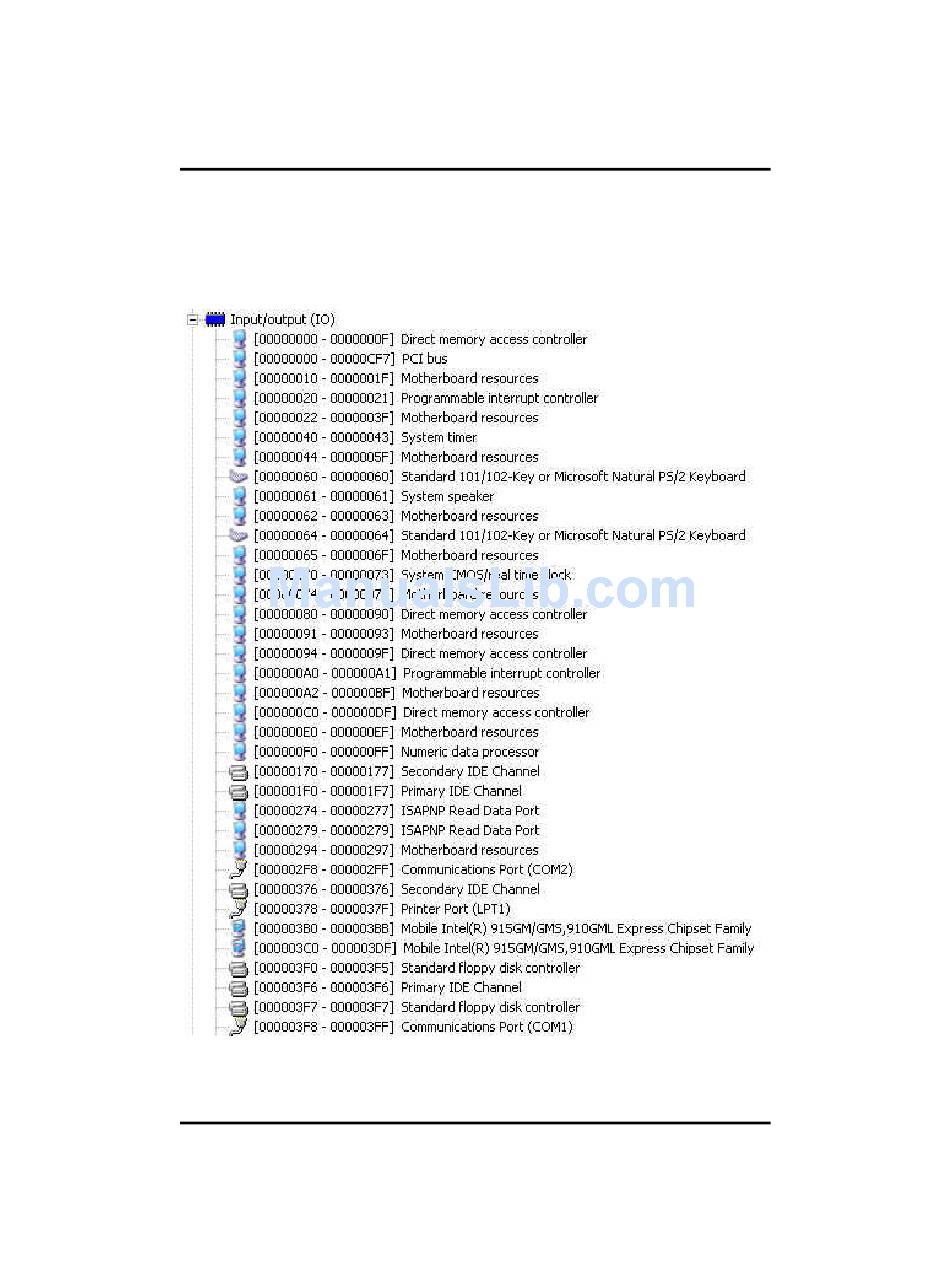

I/O Port Address Map (1)
Hardware Description
32
