SBC84820 Pentium M All-In-One Capa Board User's Manual
CN9
2.4.9

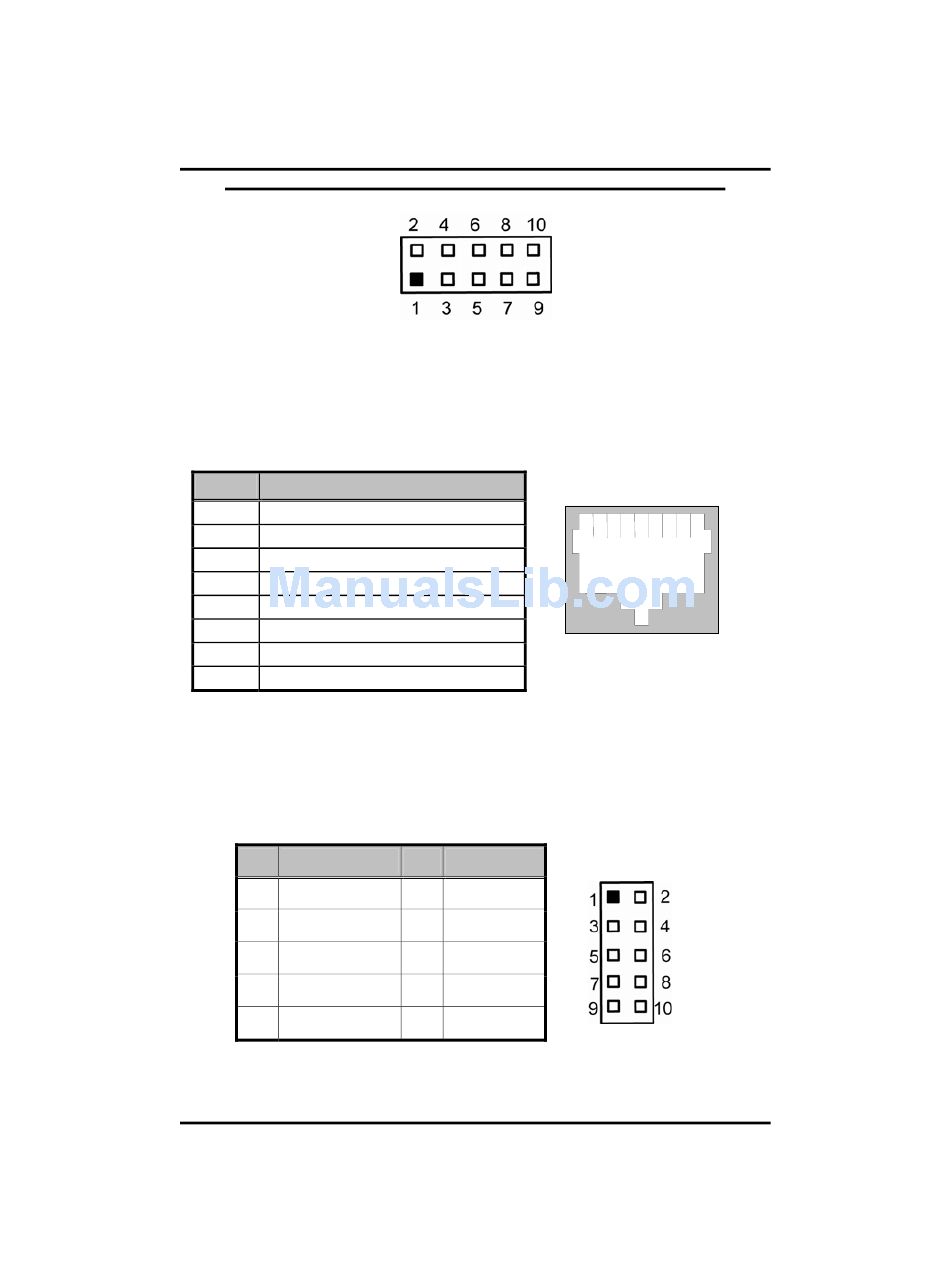

LAN Connector (CN10)

The RJ-45 connector is for Ethernet. To connect the board to a 100/10
Base-T hub, just plug one end of the cable into CN10, and connect the
other end (phone jack) to a 100/10-Base-T hub.
Pin
1 Tx+(Data transmission positive)
2 Tx-(Data transmission negative)
3 Rx+(Data reception positive)
4 RJ45 termination
5 RJ45 termination
6 Rx- (Data reception negative)
7 RJ45 termination
8 RJ45 termination

2.4.10 Audio Connector (CN11)

The board supports an audio interface. CN11 is a 10-pin header
connector commonly for the audio function.
Pin Signal
1 MIC-IN
3 Line In L
5 Line In R
7 Audio Out L
9 Audio Out R
26
Signal
Pin Signal
2 GND
4 GND
6 GND
8 GND
10 GND
CN10
1 2 3 4 5 6 7 8
RJ-45
CN11
Jumpers and Connectors
