SBC84820 Pentium
M All-In-One Capa Board User's Manual

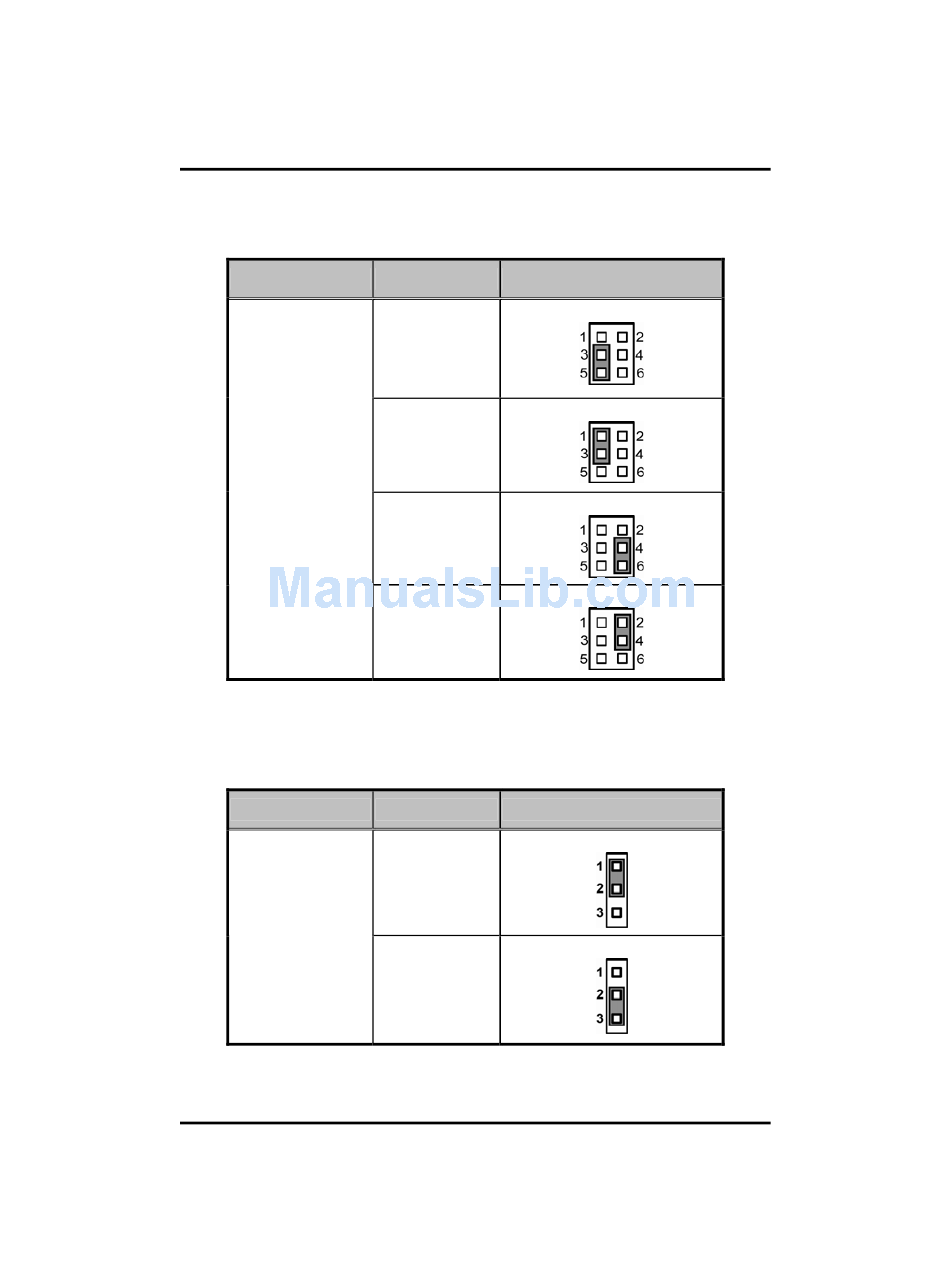

2.3.5
COM2 Mode Select Jumper (JP5)
These jumpers select the COM2 port's DCD and RI mode.
Description
COM2 (JP5)
2.3.6
CMOS Clear Jumper (JP8)
You may need to use this jumper is to clear the CMOS memory if
incorrect settings in the Setup Utility.
Description
CMOS Clear
14
Function
*Pin 1=DCD
(Default)
*Pin 1=5V
*Pin 8=RI
(Default)
*Pin 8=+12V
Function
Normal (Default)
Clear CMOS
Jumper Setting
JP5
JP5
JP5
JP5
Jumper Setting
JP8
JP8
Jumpers and Connectors
