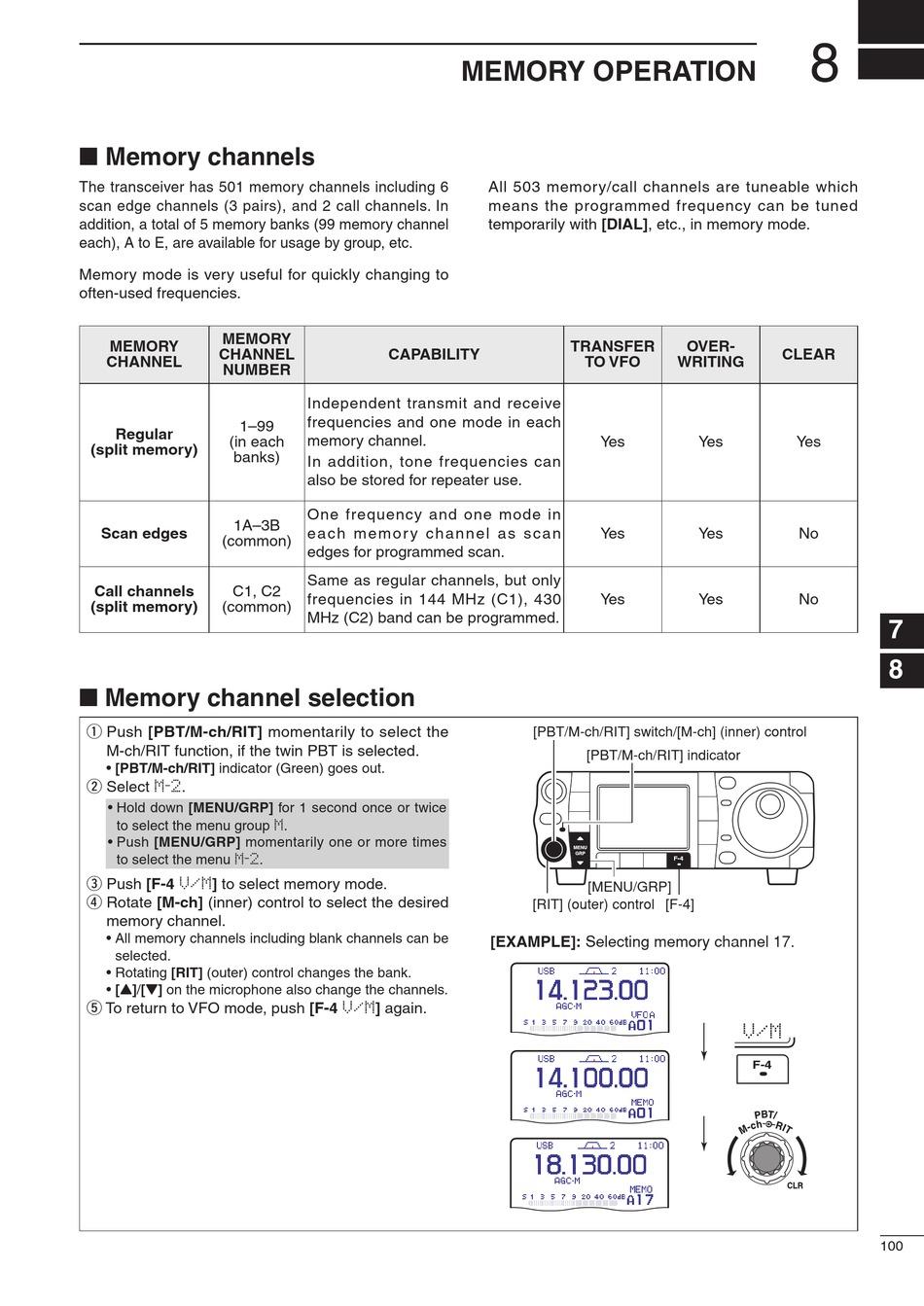

Memory Channels - Icom IC-7000 Instruction Manual

■ Memory channels

The transceiver has 501 memory channels including 6
scan edge channels (3 pairs), and 2 call channels. In
addition, a total of 5 memory banks (99 memory channel
each), A to E, are available for usage by group, etc.
Memory mode is very useful for quickly changing to
often-used frequencies.
MEMORY
MEMORY
CHANNEL
CHANNEL
NUMBER
1–99
Regular
(in each
(split memory)
banks)
1A–3B
Scan edges
(common)
Call channels C1, C2
(split memory) (common)
■ Memory channel selection
q Push [PBT/M-ch/RIT] momentarily to select the
M-ch/RIT function, if the twin PBT is selected.
• [PBT/M-ch/RIT] indicator (Green) goes out.
w Select M-2.
• Hold down [MENU/GRP] for 1 second once or twice
to select the menu group M.
• Push [MENU/GRP] momentarily one or more times
to select the menu M-2.
e Push [F-4 V/M] to select memory mode.
r Rotate [M-ch] (inner) control to select the desired
memory channel.
• All memory channels including blank channels can be
selected.
• Rotating [RIT] (outer) control changes the bank.
• [Y]/[Z] on the microphone also change the channels.
t To return to VFO mode, push [F-4 V/M] again.
MEMORY OPERATION
CAPABILITY
Independent transmit and receive
frequencies and one mode in each
memory channel.
In addition, tone frequencies can
also be stored for repeater use.
One frequency and one mode in
ea ch m em or y c hannel a s s c a n
edges for programmed scan.
Same as regular channels, but only
frequencies in 144 MHz (C1), 430
MHz (C2) band can be programmed.
All 503 memory/call channels are tuneable which
means the programmed frequency can be tuned
temporarily with [DIAL], etc., in memory mode.
TRANSFER
TO VFO
Yes
Yes
Yes
[PBT/M-ch/RIT] switch/[M-ch] (inner) control
[PBT/M-ch/RIT] indicator
[MENU/GRP]
[RIT] (outer) control
[EXAMPLE]: Selecting memory channel 17.
8
OVER-
CLEAR
WRITING
Yes Yes
Yes No
Yes No
[F-4]
V/M
7
8
100
