Adding target disk LUNs for encryption
5. Select the initiator port from the Initiator Port table, then click Next.
FIGURE 48
72
The dialog box is used to select an initiator port when configuring multiple I/O paths to a disk
LUN. The dialog box contains the following information:
•
Storage Array: Displays the storage array that was selected from the LUN view prior to
launching the wizard.
•
Host: The host selected from the LUN view prior to launching the wizard.
•
Initiator Port table: Lists initiator ports using the following identifiers:
•
Initiator Port
•
Initiator Port Name
•
Initiator Node Name
•
Fabric
LUN discovery is launched and a progress bar displays. There are four possible outcomes:
-
A message displays indicating no LUNs were discovered. Click OK to dismiss the message
and exit the wizard.
-
A message displays indicating LUNs have been discovered, but are already configured.
Click OK to dismiss the message and exit the wizard.
-
A message displays indicating that the target is not in the right state for discovering LUNs.
Click OK to dismiss the message and exit the wizard.
-
The Select LUN dialog box displays
available.

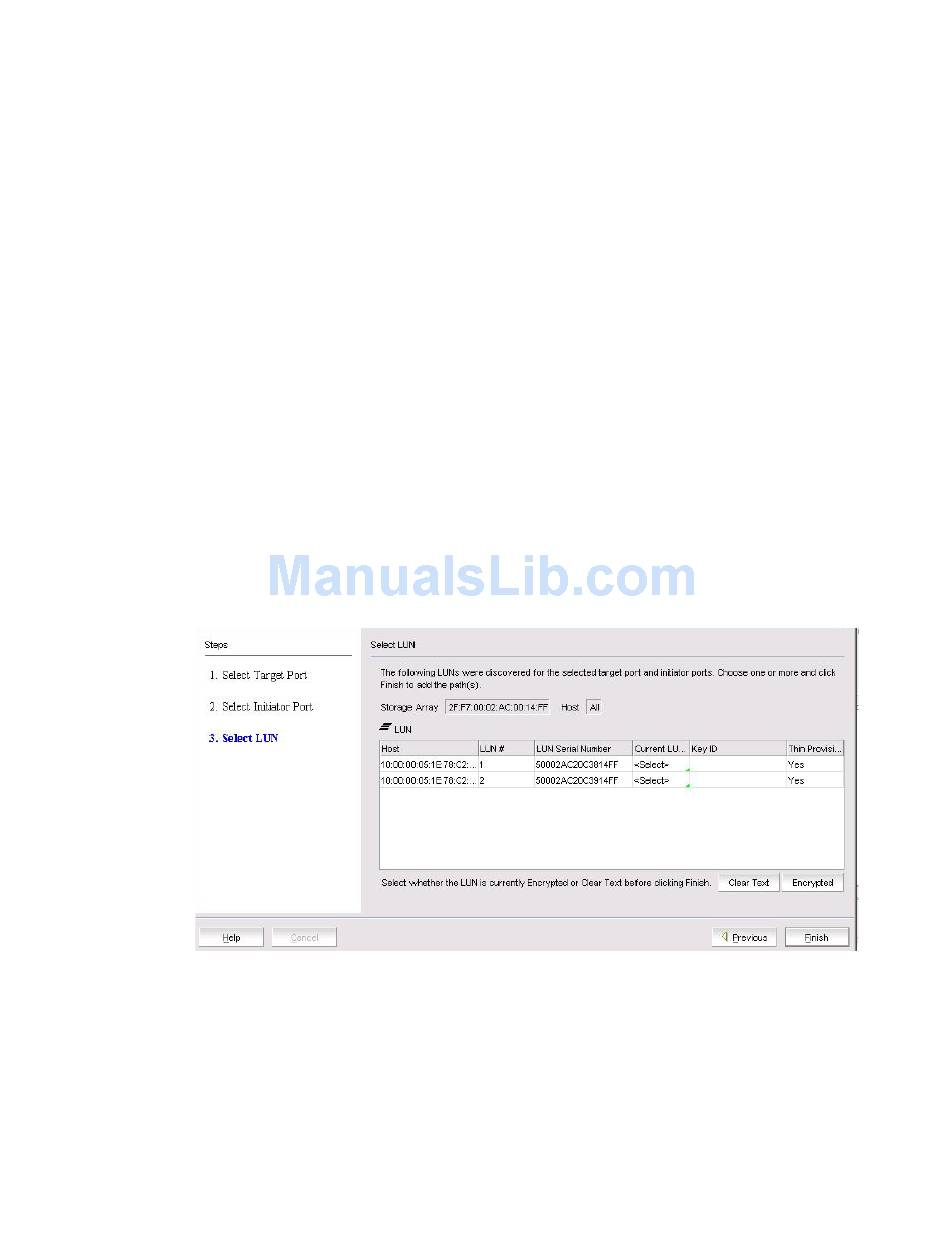

Select LUN dialog box
The dialog box is used to select a LUN when configuring multiple I/O paths to a disk LUN. The
dialog box contains the following information:
•
Storage Array The Storage Array selected from the LUN view prior to launching the Add
:
New Path wizard.
•
Host: The host elected from the LUN view prior to launching the Add New Path wizard.
(Figure 48), which lists discovered LUNs that are
