Multiple paths, one DEK cluster, and two HA clusters

failover for the encryption path between the host and target in fabric 1. Encryption switches 2 and
4 act as a high availability cluster in fabric 2, providing automatic failover for the encryption path
between the host and target in fabric 2. All four encryption switches provide an encryption path to
the same LUN, and use the same DEK for that LUN, forming a DEK cluster.
Multiple paths, one DEK cluster, and two HA clusters
Figure
paths to the same target device.

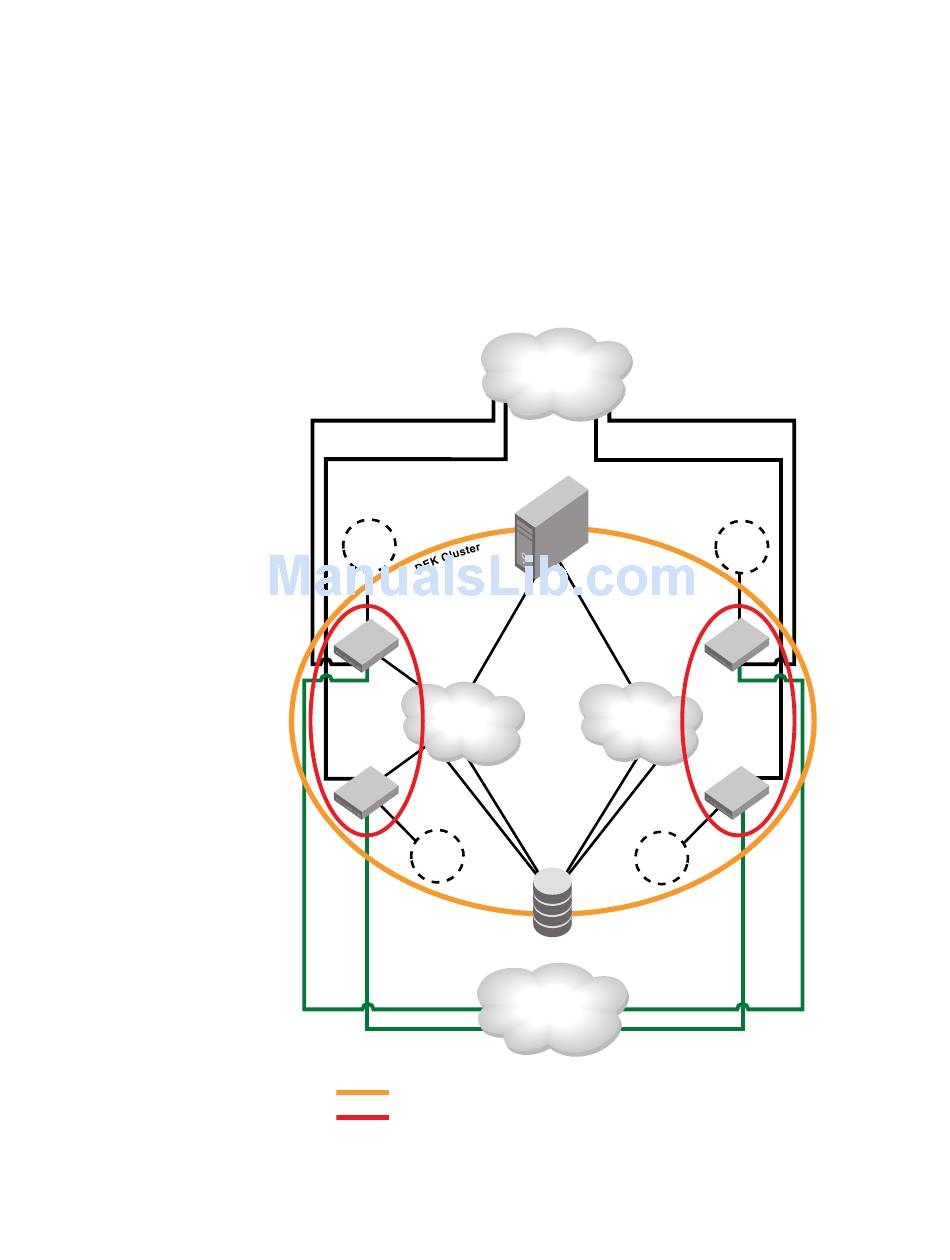

FIGURE 94
204
94shows a configuration with a DEK cluster that includes two HA clusters, with multiple
Management Link
Management Link
CTC2
Encryption
Switch 2
GE Port(s)
HA Cluster1
Encryption
Switch 1
GE Port(s)
CTC1
IO Sync Link
IO Sync Link
DEK Cluster
HA Cluster
Multi-path, DEK cluster and HA cluster
Management
Network
LAN
Host
Host Port 2
Host Port 1
Fabric1
Target Target
Port 3
Port 2
Target Target
Port 1 Port 4
Ecryption Group
Target
Dedicated Cluster
Network
LAN
Fabric OS Encryption Administrator's Guide (SKM/ESKM)
Management Link
Management Link
CTC3
Encryption
Switch 3
GE Port(s)
HA Cluster2
Fabric2
Encryption
Switch 4
GE Port(s)
CTC4
IO Sync Link
IO Sync Link
