Smart card usage
3. Locate the Authentication Card Quorum Size and select the quorum size from the list.
4. Click Register from Card Reader to register a new card.

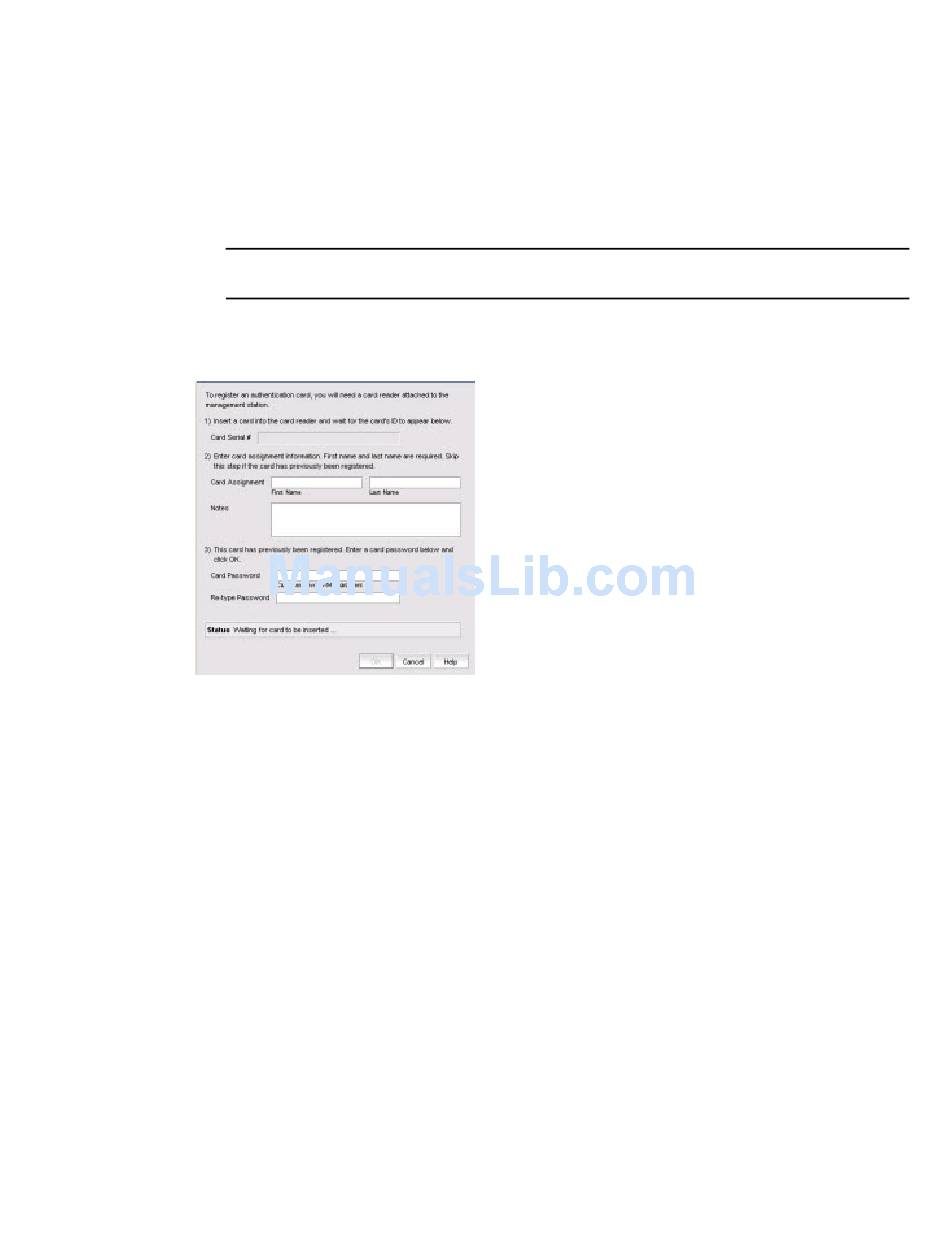

FIGURE 3
The dialog box contains the following information:
5. Insert a smart card into the card reader. Wait for the card serial number to appear, enter card
6. Wait for the confirmation dialog box indicating initialization is done, then click OK.
7.
18
The quorum size is the minimum number of cards necessary to enable the card holders to
perform the security sensitive operations listed above. The maximum quorum size is five cards.
The actual number of authentication cards registered is always more than the quorum size, so
if you set the quorum size to five, for example, you will need to register at least six cards in the
subsequent steps.
NOTE
Ignore the System Cards setting for now.
The Add Authentication Card dialog box displays
Add Authentication Card dialog box
•
Card Serial#: A serial number read from the smart card.
•
Card Assignment: The first and last name of the person assigned to the card.
•
Notes: An optional entry of information.
•
Card Password: Create a password for the card holder to enter for user verification.
•
Re-type Password: Re-enter the password in this field.
•
Status: Indicates the status when a card is being registered.
assignment information as directed, then click OK.
The card is added to the Registered Authentication Cards table.
Repeat step 5 through step 6
number of cards registered equals at least the quorum size plus one.
(Figure
until you have successfully registered all cards. Ensure that the
Fabric OS Encryption Administrator's Guide (SKM/ESKM)
3).
