Brocade Communications Systems StoreFabric SN6500B Administrator's Manual page 89

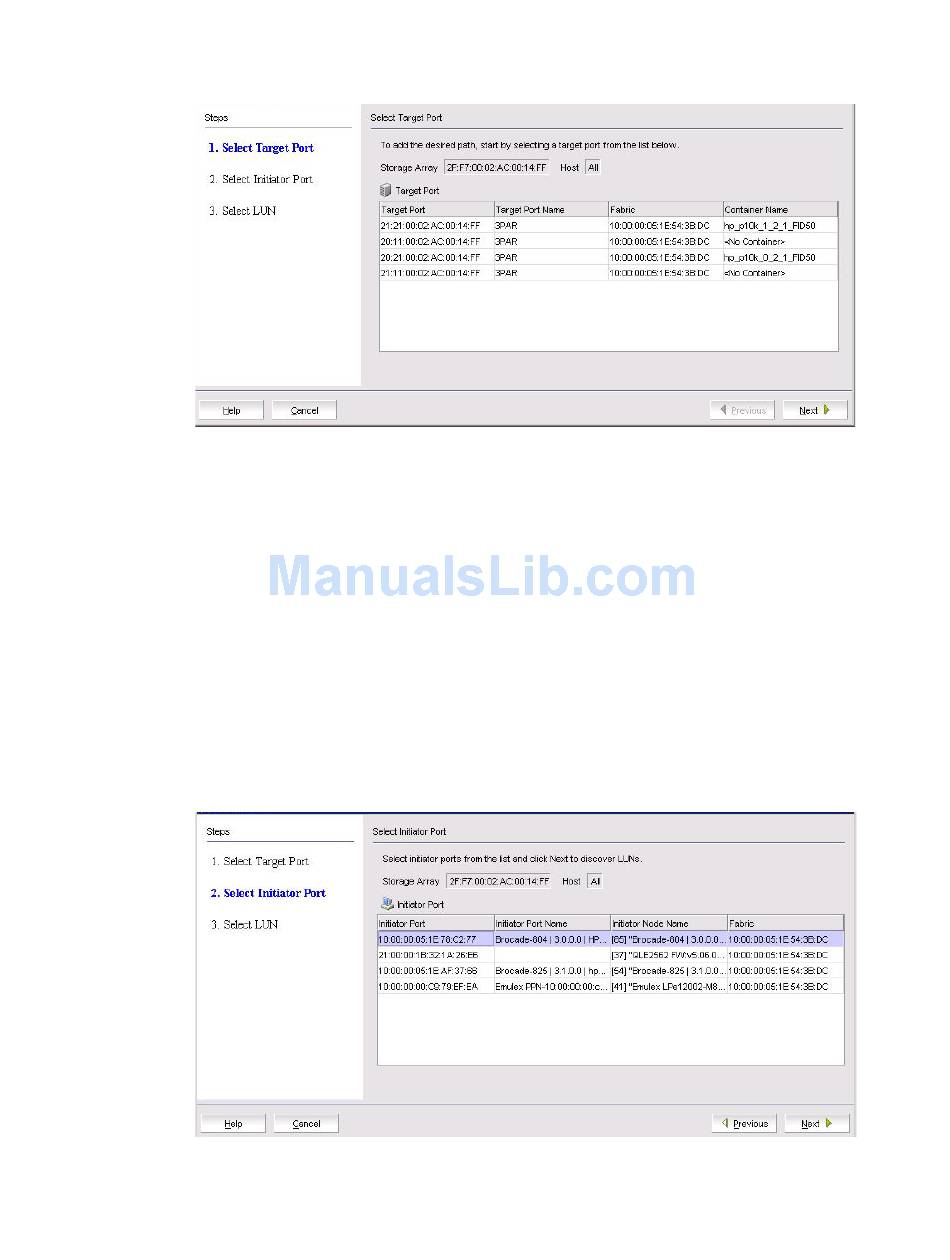

FIGURE 46
4. Select the target port from the Target Port table, then click Next.
FIGURE 47
Fabric OS Encryption Administrator's Guide (SKM/ESKM)
53-1002721-01
Select Target Port dialog box
The dialog box is used to select a target port when configuring multiple I/O paths to a disk LUN.
The dialog box contains the following information:
•
Storage Array The Storage Array selected from the LUN view prior to launching the Add
:
New Path wizard.
•
Host: The host selected from the LUN view prior to launching the Add New Path wizard.
•
Target Port table: Lists target ports using the following identifiers:
•
Target Port
•
Target Port Name
•
Fabric
•
Container Name
The Select Initiator Port dialog box displays
Select Initiator Port dialog box
Adding target disk LUNs for encryption
(Figure 47).
2
71
